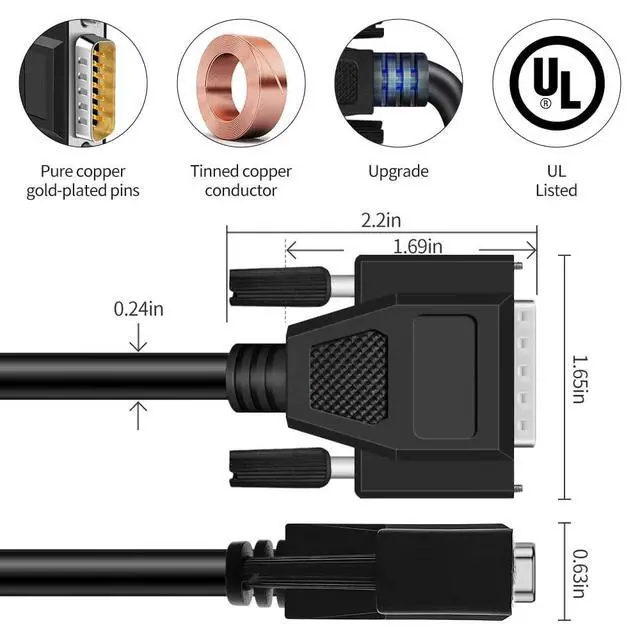

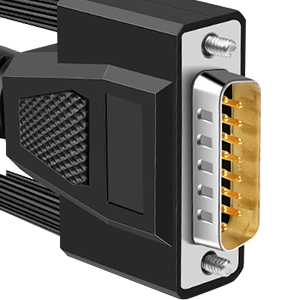

Gold-plated
Gold-plated contacts improve the connectivity and durability for everyday use.

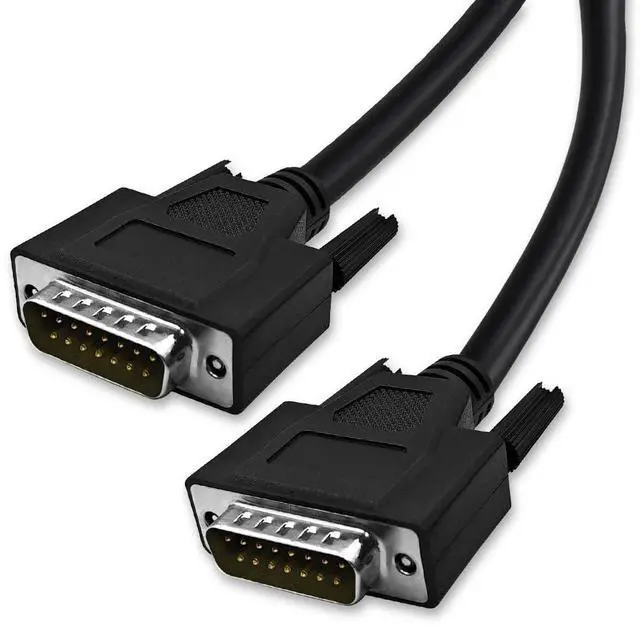

Connector Type: male to male
Screw Type: 4-40UNC
Connectors

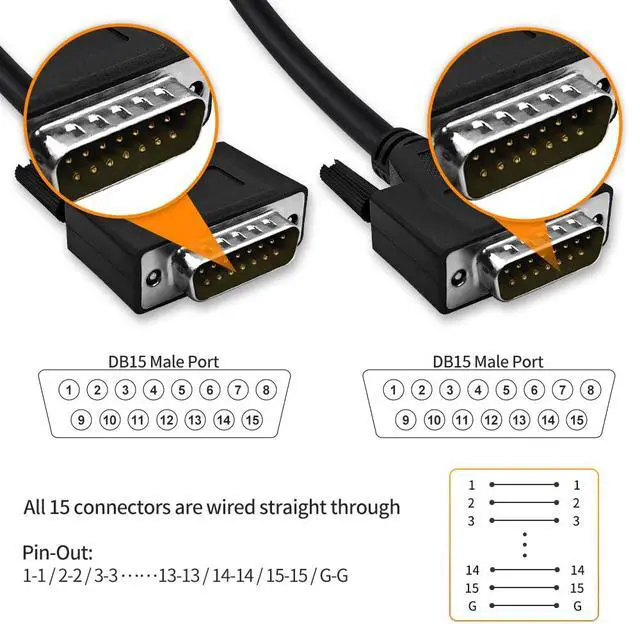

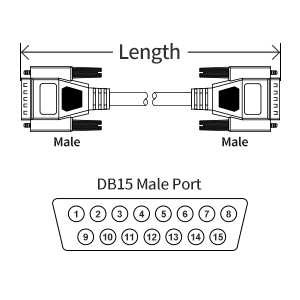

DB 15 male port straight connect to the DB15 male port. Length representation is including the connectors.

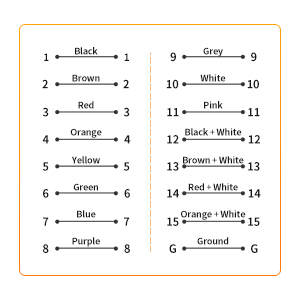

Connection
Pin 1-15 and Ground are all connecting straightly.

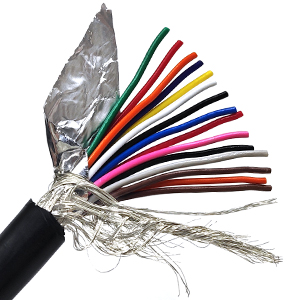

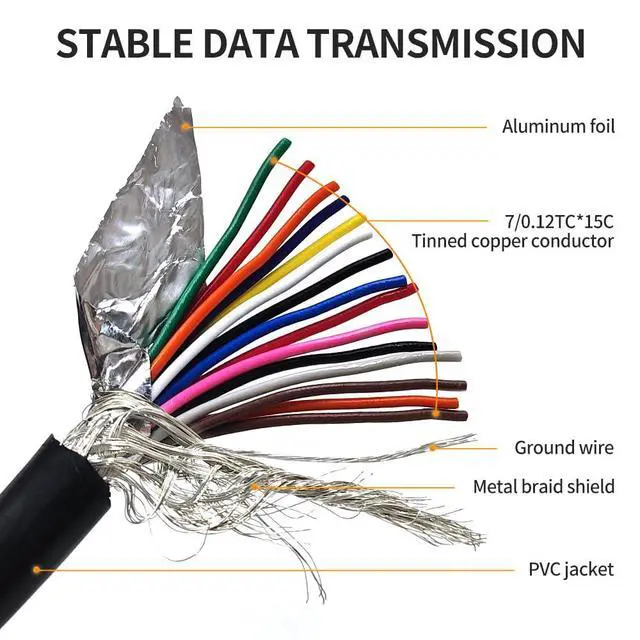

Cable Specification
Conductor: 28 AWG(7*0.12mm) *15 cords
Conductor Material: Tinned copper
Shielded Type: AL-foil + Metal Braiding
Overall Diameter: 6.2mm
Outer Jacket: PVC
Color: Black
Cable Type: UL Listed AWM 2464(300V 80°C)
Fire Resistance: VW-1
Gold-plated
Gold-plated contacts improve the connectivity and durability for everyday use.
Connector Type: male to male
Screw Type: 4-40UNC
Connectors
DB 15 male port straight connect to the DB15 male port. Length representation is including the connectors.
Connection
Pin 1-15 and Ground are all connecting straightly.
Cable Specification
Conductor: 28 AWG(7*0.12mm) *15 cords
Conductor Material: Tinned copper
Shielded Type: AL-foil + Metal Braiding
Overall Diameter: 6.2mm
Outer Jacket: PVC
Color: Black
Cable Type: UL Listed AWM 2464(300V 80°C)
Fire Resistance: VW-1
