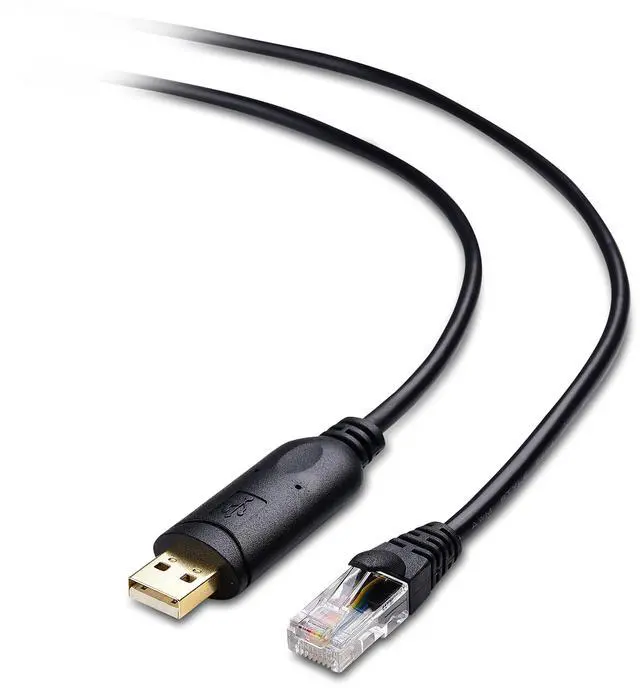

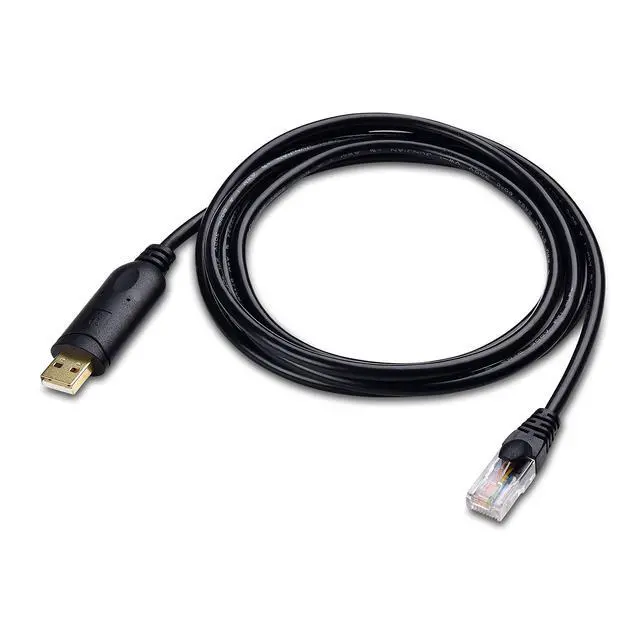

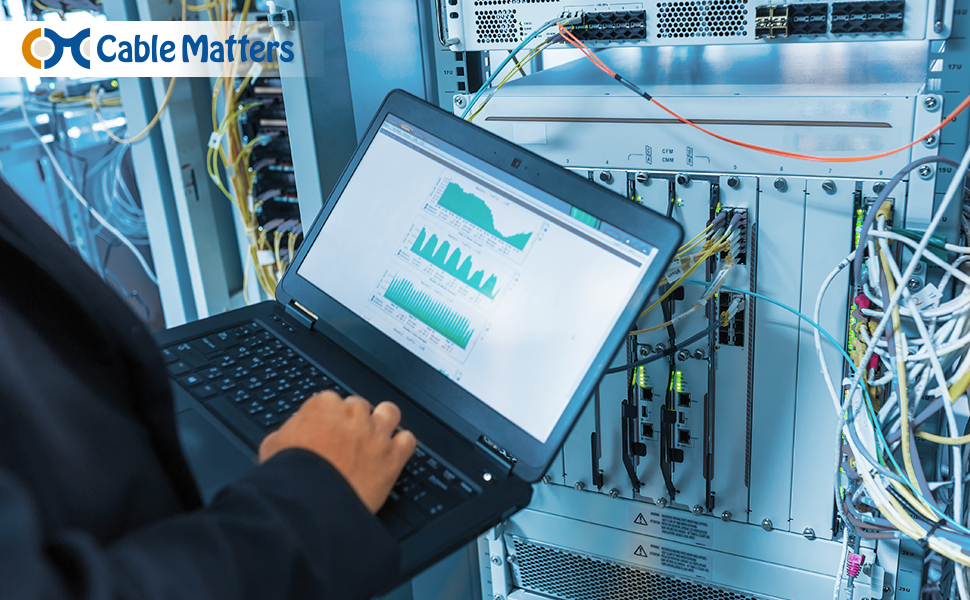

Console Configuration Cable
The Cable Matters USB-A to RJ45 Console Cable connects from a computer USB port to the RJ45 console port of a networking switch or router. This rollover cable connects a laptop with Windows, Linux or macOS to a Cisco-standard serial console port for configuration and management. The integrated FTDI chipset handles the USB signaling and protocol functions including an RS-232 level shifter. FTDI drivers are available for download.
Specifications

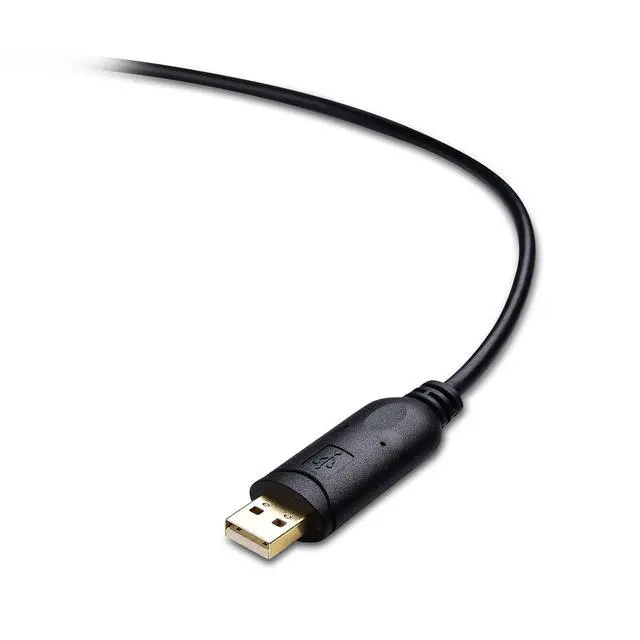

- Host Connector: USB-A 2.0 Male
- Console Port Connector: RJ45 8P/8C Male
- Chipset: FTDI USB to serial UART
OS Compatibility
- Windows 7 and up for 32/64 bit computers
- macOS 9 and up
- Linux Ubuntu 11.10 and up
Important Notes
- Administrator permission is required
- Windows 10 requires a CLI terminal utility such as PuTTy for configuration

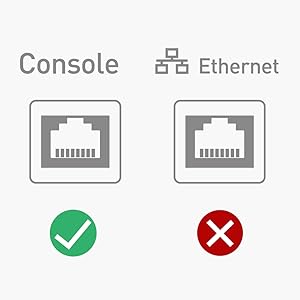

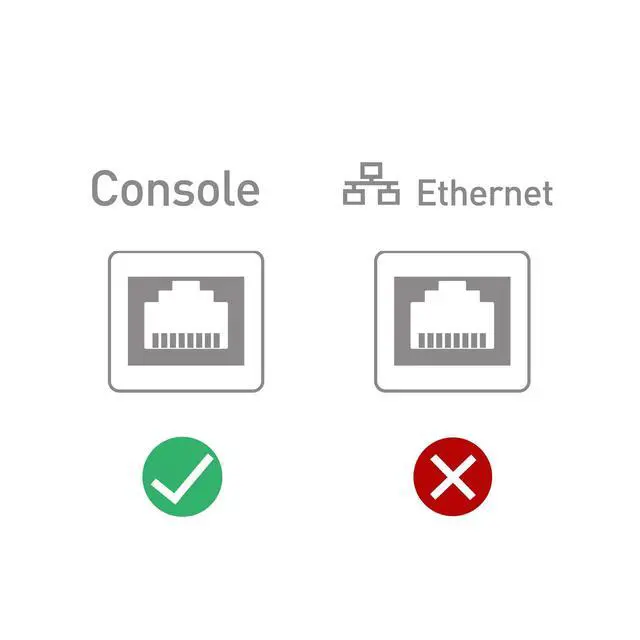

Console Cable Functions
- Directly connect to a console port on a network switch
- FTDI drivers are integrated into the latest versions of Windows 10 and macOS
- Configure a switch or router with direct terminal access from your computer
Important Notes
- NOT a crossover cable that reverses TX and RX
- Will NOT operate over an Ethernet port for internet access

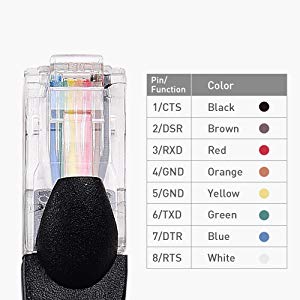

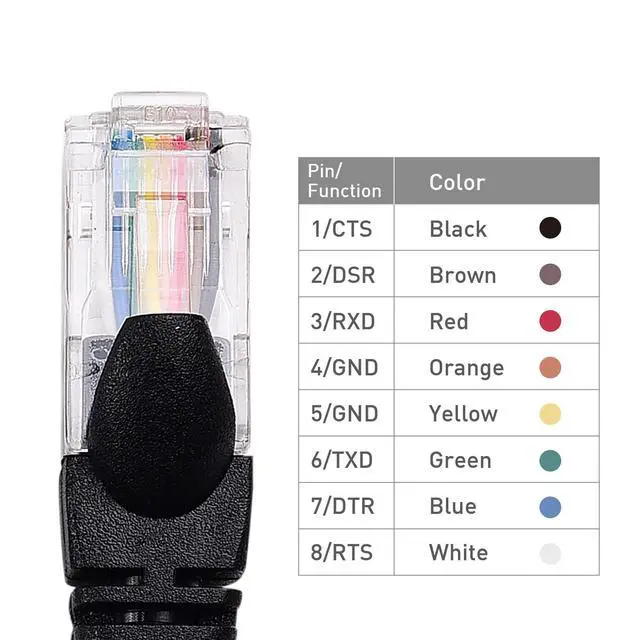

Rollover Cable
- Rollover cable reverses all 8 pins to connect from a computer to a network switch
- Cisco-standard wiring pin-out (check the requirements of your equipment)
- Data transfer rate up to 250 Kbps
- Bus-powered cable

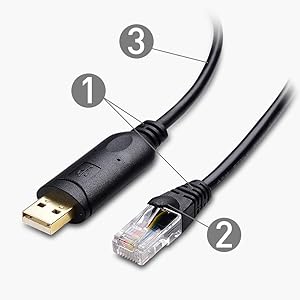

Feature-Filled Cable
1. Molded strain-relief for frequent use

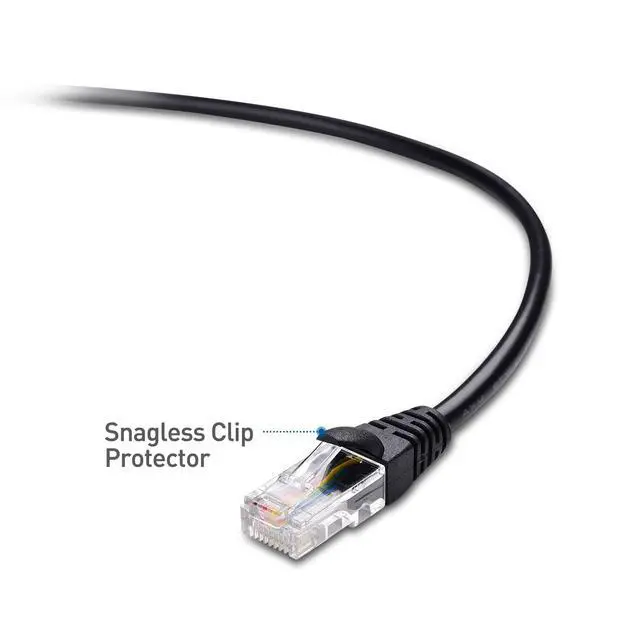

2. Snagless RJ45 clip protector
3. Flexible PVC cable jacket

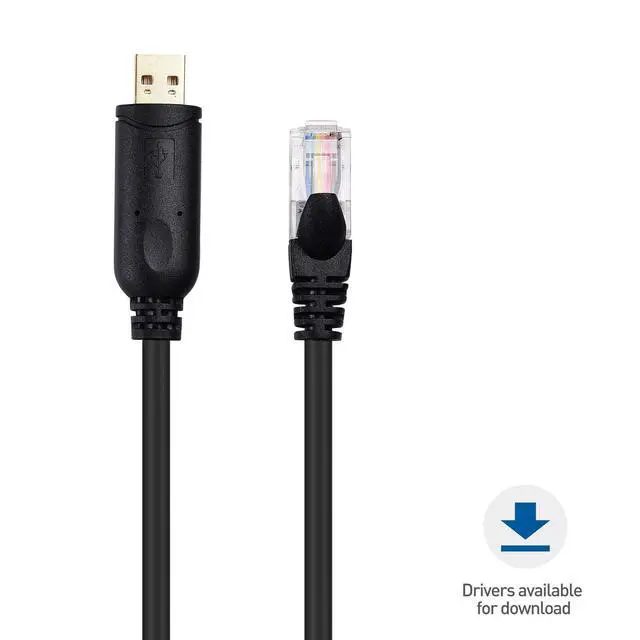

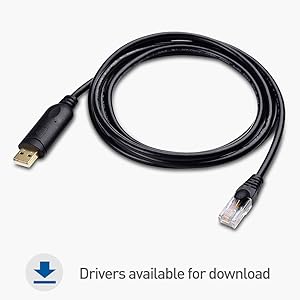

Popular FTDI Chipset
- Download drivers from Cable Matters
- QSG included in the package
Note: Windows 10 requires a CLI terminal utility such as PuTTy for configuration

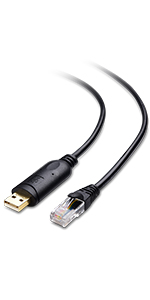

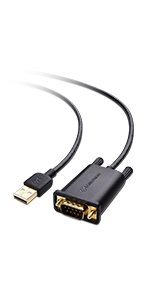

 USB-A to RJ45 FTDI Console Cable |  USB-A to RS-232 DB9 Serial Cable | |
|---|---|---|
| Customer Reviews | — | — |
| Price | — | — |
| Computer Port | USB | USB |
| Device Port | RJ45 Console Port | DB9 Serial Port |
| Model Number | 202065 | 202031 |
Cable Matters, with headquarters in Southborough, Massachusetts, offers a complete line of cables, adapters, docking stations, and networking products for the home, office, and data center. Cable Matters offers first-class, quality, and affordable products backed by an exceptional customer experience.
