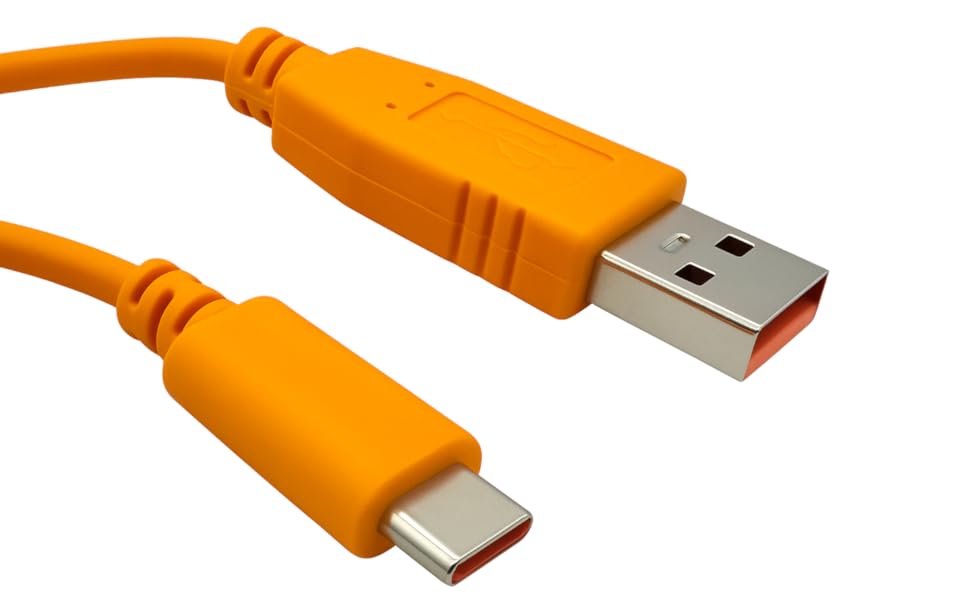

Aruba USB C Console Cable for CX Series Switch

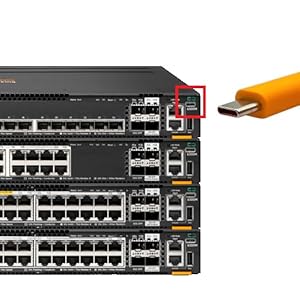

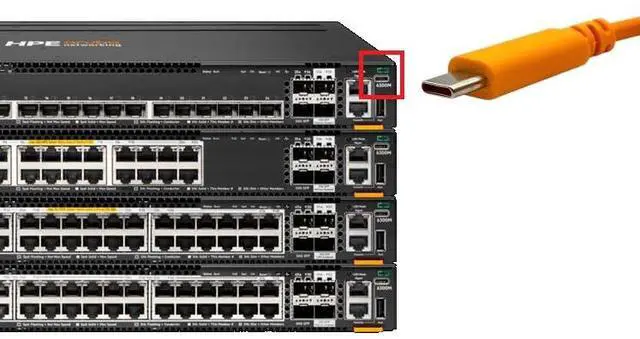

Designed for Aruba CX Series Switches
This cable will work with Aruba CX Series switches and replaces the HPE Aruba R8Z87A console cable.
Plug N Play for Windows
No drivers required. COM port will appear once connected to the switch and is POWERED on.
Supported Operating Systems
Windows 11/10/8.1/8/7/ XP/Vista
Linux
Mac OS
COM Port Settings
- Baud Rate : 115200
- Data bits : 8
- Parity : None
- Stop Bits : 1
- Flow Control : None

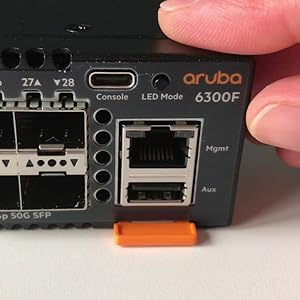

ArubaOS-CX Switches: Console Access
Changes have been made to the console access of the ArubaOS-CX switches compared to the previous series (ArubaOS-S switches, better known as "ProCurve"). While ProCurve initially used the DB9 connector, then RJ45 ports for console access for a long time and later supplemented by micro-USB ports, technical development is now moving towards USB-C.
The console port should not be confused with the management port (marked as "Mgmt" on the chassis). This is used for the optional out-of-band management (OOBM) of the switches
 Aexus Micro USB Console Cable for Cisco | USB Type A to Micro-B 6 ft (1.8 Met... |  Aexus Cisco Console Cable 6 ft with USB Type A to Mini-B CAB-Console-USB= |  Aexus Replacement Console Cable for Cisco | FTDI USB to RJ45-6ft (1.8m) | HQ ... |  Aexus Console Cable for Aruba | FTDI 3.3V TTL | USB Type A to USB Micro-B 6 f... |  Aexus Aruba Console Cable for Aruba CX Switch | AOS-CX | USB Type A to USB-C ... |  Aexus Aruba FTDI 4 PIN Serial Console Cable for Aruba | FTDI 3.3V TTL | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — | — | — |
| Chip | ? | ? | FTDI | FTDI | ? | FTDI |
| Part Number | CAB-USB-UB= | CAB-Console-USB= | 72-3383-01 | AP-CBL-SERU | R9J32A | AP-CBL-SER |
| Length | 6ft | 6ft | 6ft | 6ft | 6ft | 6ft |
| System | Windows 11/10/8.1/8/7/ XP/Vista | Windows 11/10/8.1/8/7/ XP/Vista | Windows 11/10/8.1/8/7/ XP/Vista | Windows 11/10/8.1/8/7/ XP/Vista | Windows 11/10/8.1/8/7/ XP/Vista | Windows 11/10/8.1/8/7/ XP/Vista |
| Linux | Linux | Linux | Linux | Linux | Linux | |
| Mac OS | Mac OS | Mac OS | Mac OS | Mac OS | Mac OS |

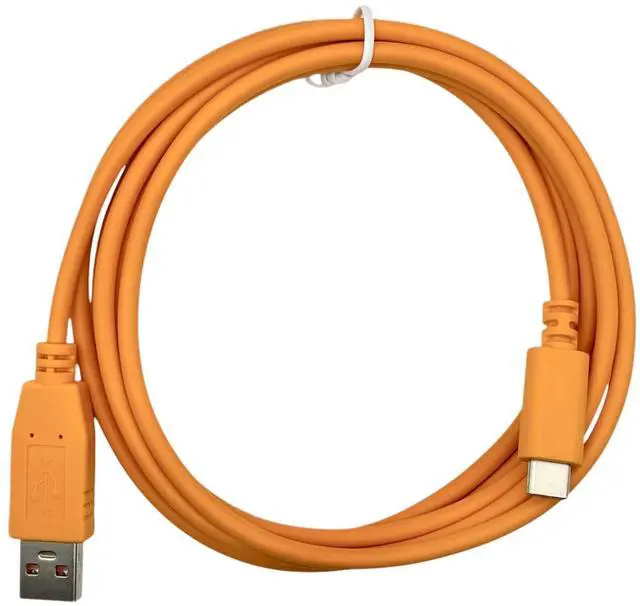

Aruba USB C Console Cable for CX Series Switch
| Aruba Part Number | R9J32A |
| Length | 6ft ( 1.8 Meters ) |
| Connector type on First End | USB Type A |
| Connector type on Second End | USB Type C |
| Compatible | Aruba CX 6000 Series Switch - 6000, 6100, 6200, 6300, 8360 |
