TTL-232R-3V3 USB to TTL UART Adapter Converter Serial Cable 3.3V 6 Way Pin Header Wire Debug Cord Lead Interface Connector Flashing Download Line for MCU Microcontroller Development Board PC

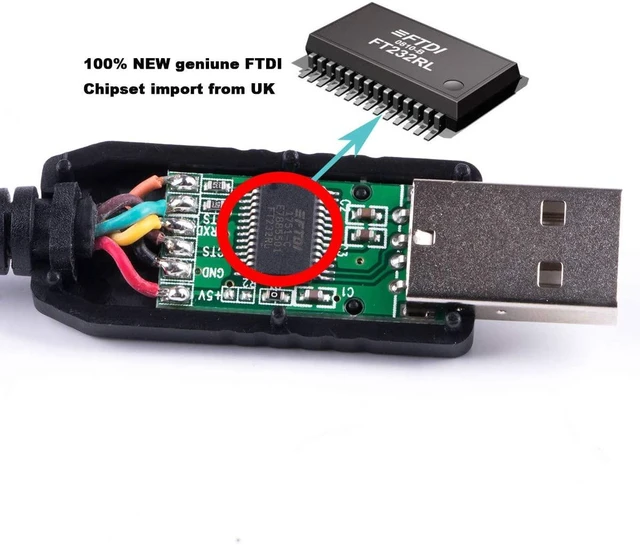

- tegrated FT232RL Single-Chip Solution: The USB connector houses an internal PCB with the FT232RL chip, handling the entire USB protocol and asynchronous serial data transfer on-board with minimal USB bandwidth consumption.

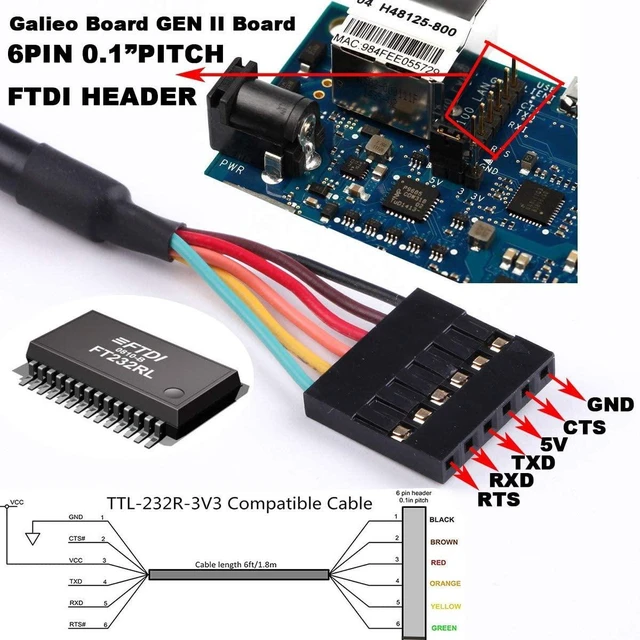

- 3.3V TTL Level & Direct 6-Way Header Output: Provides 6-way pin outputs (Tx, Rx, RTS#, CTS#, VCC, GND), enabling direct plug-in connections to microcontroller UART or general I/O pins at standard 3.3V TTL levels.
- 300 Baud to 3 Mbaud High-Speed Transfer Rates: Delivers serial data transfer speeds from 300 baud up to 3 Mbaud at TTL levels, easily accommodating diverse low and high-speed data transmission tasks.
- Dual Hardware & Software Handshaking: Features full support for hardware-assisted (RTS#/CTS#) and software (X-On / X-Off) flow control protocols to prevent data loss during heavy communication.
- Enhanced Security with Unique FTDIChip-ID: Supports the FTDIChip-ID feature with a factory-written unique USB serial number to create security passwords, dongle keys, and protect file transfers.
- Internal Writable EEPROM & USB 2.0 Full Speed: Features an internal user-writable EEPROM storage area and is fully compliant with USB 2.0 Full Speed, working seamlessly with UHCI, OHCI, and EHCI host controllers.
- Industrial Temperature Range (-40°C to +85°C): Engineered for rugged reliability with an extended industrial operating temperature range from -40°C to +85°C, perfect for factory automation and outdoor testing.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Title:

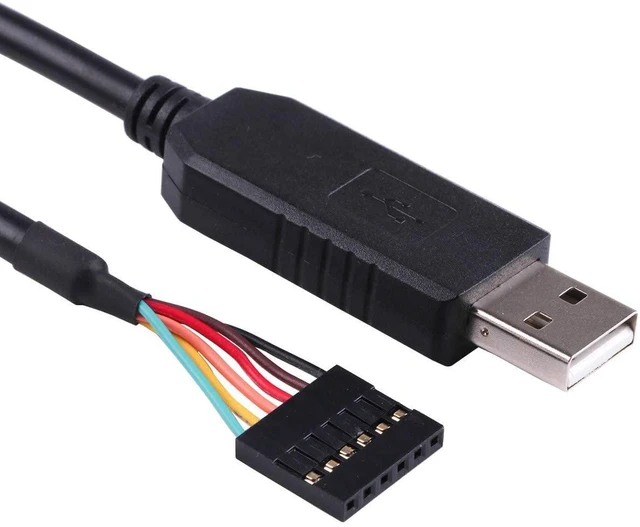

TTL-232R-3V3 USB to 3.3V TTL UART Serial Converter Cable with FT232RL Chip (6-Way Pin Header)
Product Overview:
The TTL-232R-3V3 is a professional USB to 3.3V TTL serial UART converter cable integrating the FT232RL chipset directly molded inside the USB connector. It provides a fast, simple method to interface TTL-level devices directly with a computer's USB port. Supporting transfer rates from 300 baud up to 3 Mbaud and featuring a 6-way header output, it offers industrial-grade reliability across a wide -40°C to +85°C temperature range.
Key Features:
- Integrated FT232RL Single-Chip Solution:
- The USB connector houses an internal PCB with the FT232RL chip, handling the entire USB protocol and asynchronous serial data transfer on-board with minimal USB bandwidth consumption.
- 3.3V TTL Level & 6-Way Header Output:

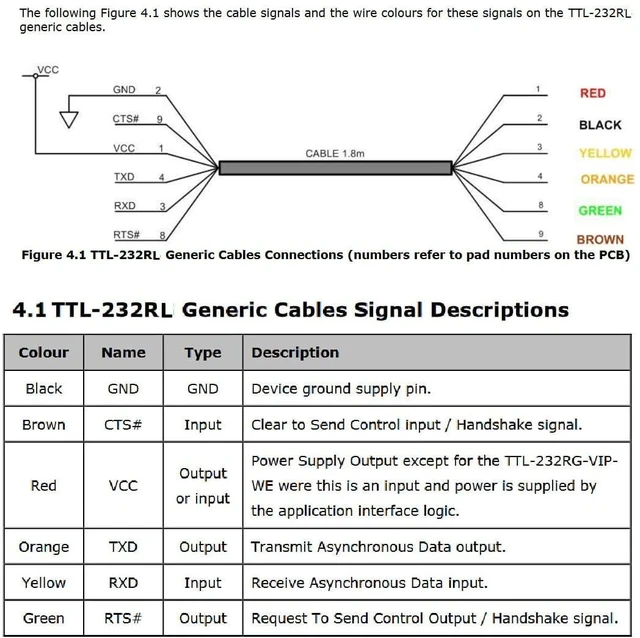

- Provides 6-way pin outputs including Tx, Rx, RTS#, CTS#, VCC, and GND, enabling direct plug-in connections to microcontroller UART or GPIO pins.
- 300 Baud to 3 Mbaud High-Speed Transfer:
- Supports serial data transfer speeds from 300 baud up to 3 Mbaud at TTL levels, with complete support for hardware (RTS#/CTS#) and software (X-On / X-Off) handshaking.
- Enhanced Security with FTDIChip-ID & Internal EEPROM:
- Supports the unique FTDIChip-ID feature with a factory-written USB serial number to create security passwords or protect file transfers, paired with an onboard user-writable EEPROM.
- USB 2.0 Full Speed & Host Controller Compatibility:
- Fully compliant with the USB 2.0 Full Speed specification and compatible with UHCI, OHCI, and EHCI host controllers.
- Industrial Temperature Range (-40°C to +85°C):
