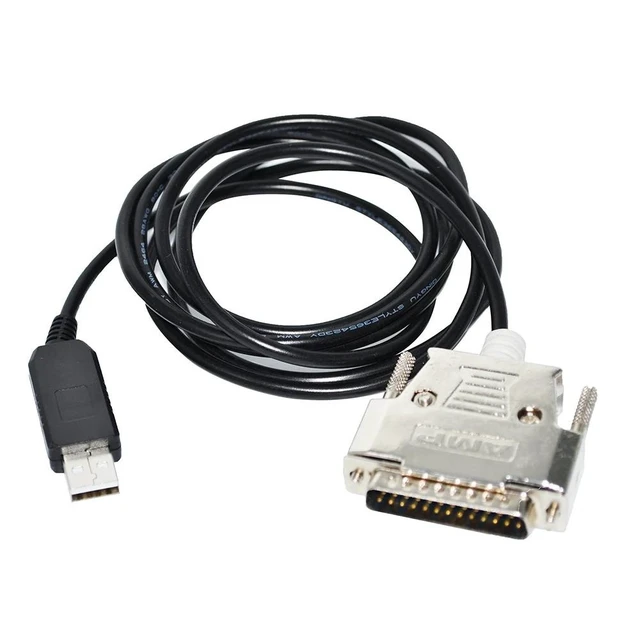

FT232RL USB to RS232 Serial Cable DB25 Male D-SUB 25-Pin Connector Adapter with TXD RXD GND Software Handshaking for CNC Programming For C-232R/US-232R to PC 1.8M Length
- USB to RS232 serial cable connects a computer USB port with compatible RS232 serial devices through a DB25 interface.
- Features a 25-pin D-sub DB25 male connector for serial equipment using the RS232 protocol.
- Designed for C-232R and US-232R connections to a PC, supporting listed serial programming applications.
- Uses software handshaking with three signals: TXD on Pin 2, RXD on Pin 3, and GND on Pin 7.
- Measures 1.8M in length, providing the specified cable reach between the computer and connected serial device.
- Supports Windows operating systems including Windows 10, 8.1, 8, 7, Server 2008, Server 2003, Vista, XP, and 98.
- Supports Linux and both 32-bit and 64-bit operating systems; verify device settings before purchase.
- For RS232 serial connections only; it is not intended for parallel printers or IEEE-1284 parallel devices sharing a DB25 connector.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
USB to RS232 serial cable with an FT232RL chip, a DB25 male connector, and a USB connector for connecting a computer to RS232 serial devices. Designed for serial programming and connection to C-232R and US-232R equipment.
Core Selling Points:
Supports software handshaking through TXD, RXD, and GND signals. Connects through TXD on pin 2, RXD on pin 3, and GND on pin 7. Supports 32-bit and 64-bit operating systems and is suitable for Windows and Linux systems.
Technical Specifications:
Product type: USB to RS232 serial cable. Chip: FT232RL. Connector: D-sub 25-pin DB25 male. Signal pins: TXD pin 2, RXD pin 3, GND pin 7. Cable length: 1.8 m. Connection type: USB to serial. Handshaking: Software handshaking.
Package Contents:
USB to DB25 cable.
Before Purchase:
For RS232 serial devices only. This cable is not designed for parallel printer connections or other devices using the IEEE-1284 parallel protocol, even when a DB25 connector is present. Please verify the device setup, connector type, and required pin configuration before purchase. Supports Windows and Linux operating systems.
