USB 10-Channel 12-Bit AD Data Acquisition Module STM32 UART Communication USB to Serial Chip CH340 ADC Module

USB 10-Channel 12-Bit AD Data Acquisition Module Instructions

https://1drv.ms/u/c/4a0865b22350d05c/IQBc0FAjsmUIIIBK9wAAAAAAAUNyDJy5gtbBD4OyXq7uPwA?e=beMqL4

Product Features:

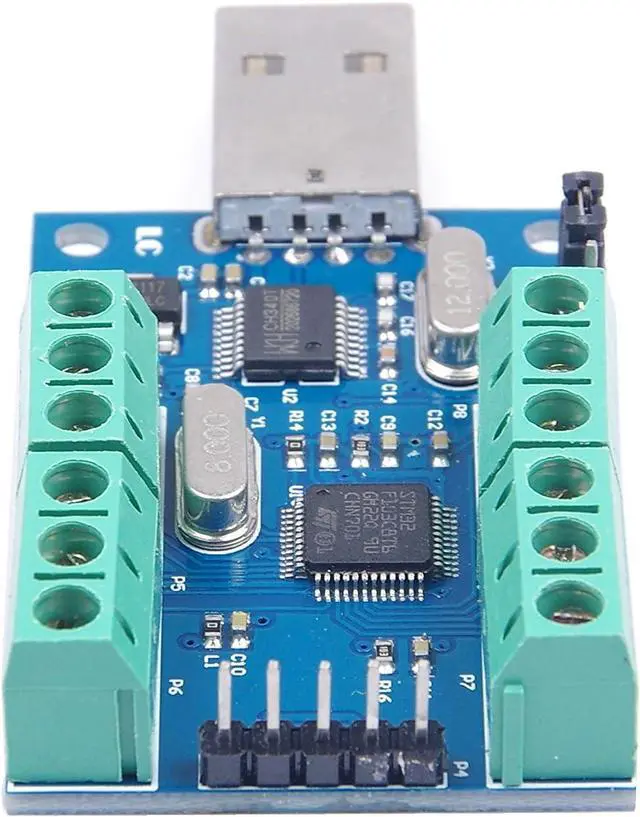

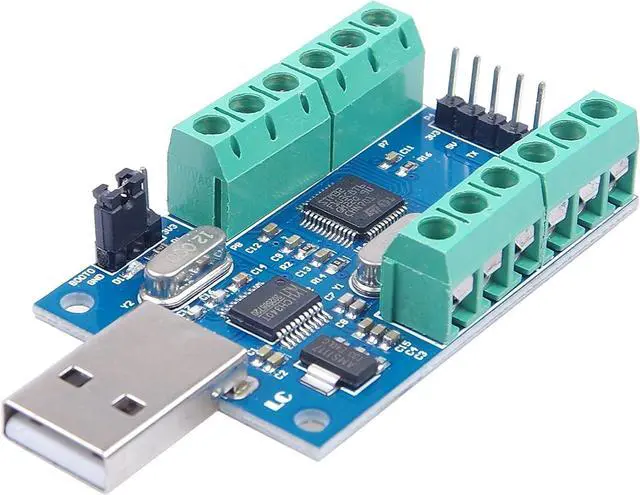

On-board STM32F103C8T6 master chip;

On-board CH340 serial port USB chip, convenient to view AD sampling result on PC through USB;

Reserved UART serial communication interface, can be connected MCU;

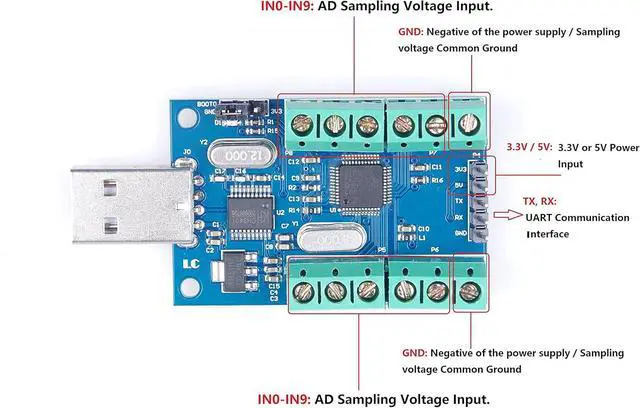

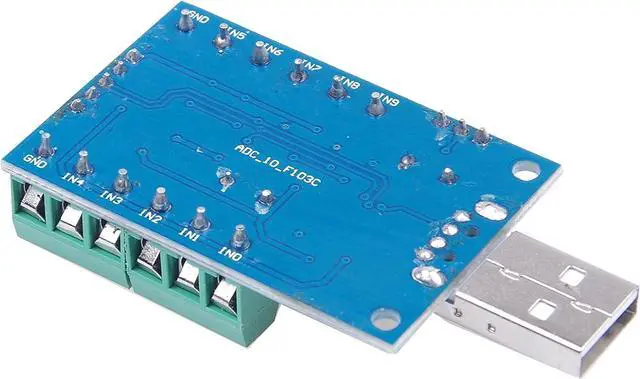

Analog input channels: 10 channels single-ended input; (For pin description, please refer to the picture)

Sampling input voltage range: 0-3.3V;

Power supply voltage: 3.3V / 5.0V;

Resolution: 12 Bit;

Size: 50 * 40mm (L * W), (length does not contain USB plug)

USB to Serial Chip CH340:

Overview

CH340 is a USB bus adapter chip, to achieve USB to serial port, USB to IrDA infrared or USB to print port.

In the serial port mode, CH340 provides common MODEM contact signal, which is used to extend the asynchronous serial port for the computer or directly upgrade the ordinary serial port device to the USB bus.

Features

Full-speed USB device interface, compatible with USB V2.0, peripheral components only need crystals and capacitors.

Emulation standard serial port, used to upgrade the original serial peripherals, or through USB additional serial port.

Computer-side Windows operating system serial applications are fully compatible, without modification.

Hardware full duplex serial port, built-in send and receive buffer, support communication baud rate 50bps ~ 2Mbps.

Support common MODEM contact signal RTS, DTR, DCD, RI, DSR, CTS.

Through the addition of level conversion devices, providing RS232, RS485, RS422 and other interfaces.

Support IrDA standard SIR infrared communication, support baud rate 2400bps to 115200bps.

CH341 software compatible, you can directly use the CH341 driver.

Supports 5V supply voltage and 3.3V supply voltage.
