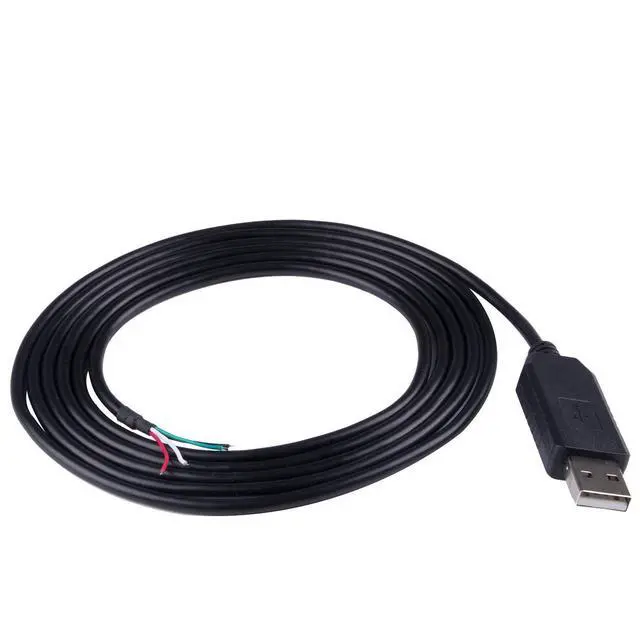

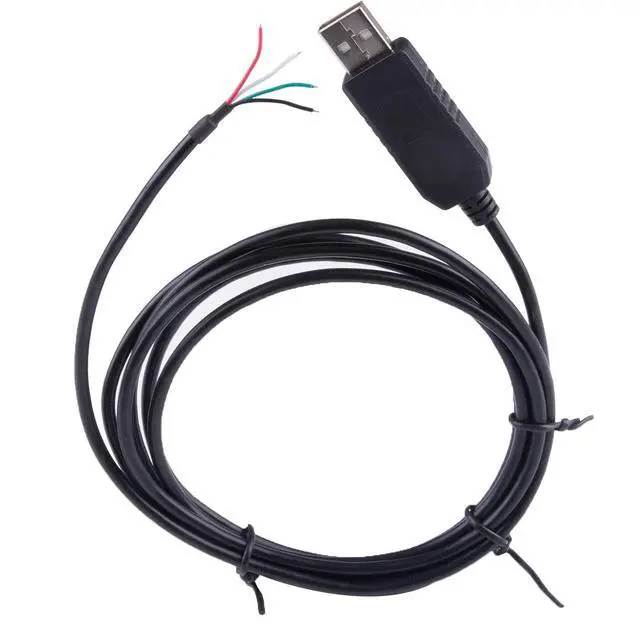

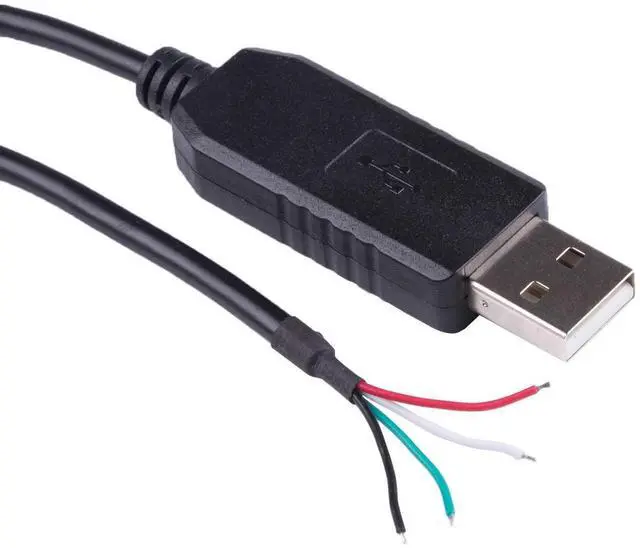

USB to RS485 Serial Cable FT232RNL Chipset Data Adapter Converter Cable Compatible for USB-RS485-WE-1800-BT Support Win7 8 10 XP Android Mac Linux (Black USB Housing)

The USB-RS485 cable is a USB to RS485 levels serial UART converter Cable USB to serial UART interface IC device which handles all the USB signalling and protocols. The cable provides a fast, simple way to connect devices with a RS485 interface to USB. Each USB-RS485 cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The integrated electronics also include the RS485 transceiver plus Tx and Rx LEDs which give a visual indication of traffic on the cable, The other end of the cable is bare, tinned wire ended connections USB 2.0 full speed 12M support With 2 LEDs for data+, Data- Transfering Red-VCC (5V), Black-GND, White- Data+, Green--Data-
Chipset: FT232R+SP485 Support Win10 8 7 xp 2000 linux Mac OS Support FTDI VCP driver and D2XX driver Integrated 1024 byte EEPROM, Support Vendor ID re-write, Support Mprog 3.5 Drivers are available which allow FTDI devices to work with the following operating systems: Windows 8.1 Windows 8.1 x64 Windows 8 Windows 8 x64 Windows Server2012 Windows Server 2008 R2 Windows 7 Windows 7 x64 Windows Server 2008 Windows Server 2008 x64 Windows Vista Windows Vista x64 Windows Server 2003 Windows Server 2003 x64 Windows XP Windows XP x64 Windows ME Windows 98 Linux Mac OS X Mac OS 9 Mac OS 8 Windows CE. NET (Version 4.2 and greater) Android Windows RT Support for WinCE 7.0 Installation Guides If you need further support about how to pick up and install drivers, please
goes to http: //www. ftdichip. com/Support/Documents/InstallGuides.
htm Package: 1 X USB TO RS485 4 Wire End Serial Cable
