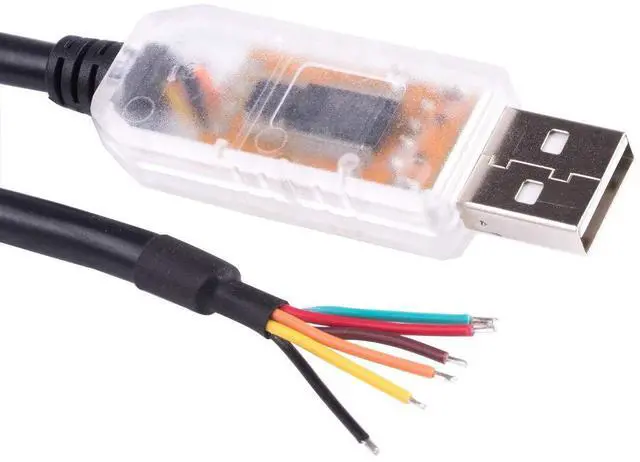

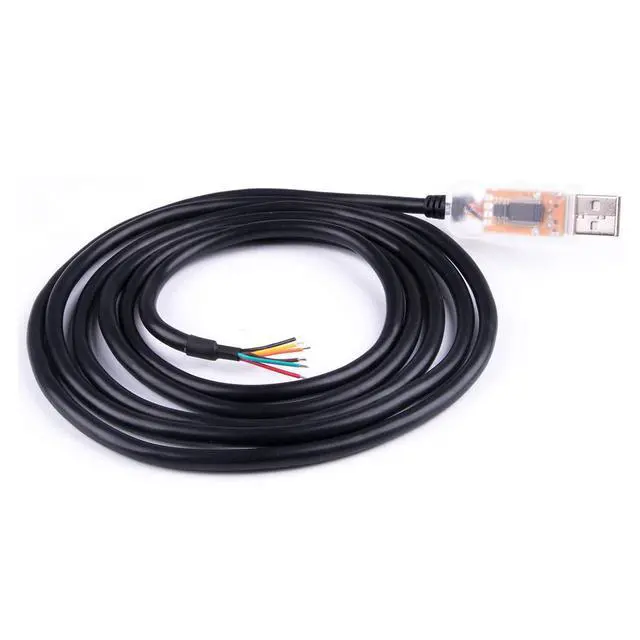

USB to RS485 Level Serial UART Converter Cable FT232RL Chipset 6 Way Wire End Stripped Cable USB-RS485-WE-1800-BT

USB RS485 UART Serial Converter Adapter Cable Compatible USB-RS485-WE USB-RS485 cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The integrated electronics also include the RS485 transceiver plus Tx and Rx LEDs which give a visual indication of traffic on the cable
Chipset: FT232RL&SP485LEEN

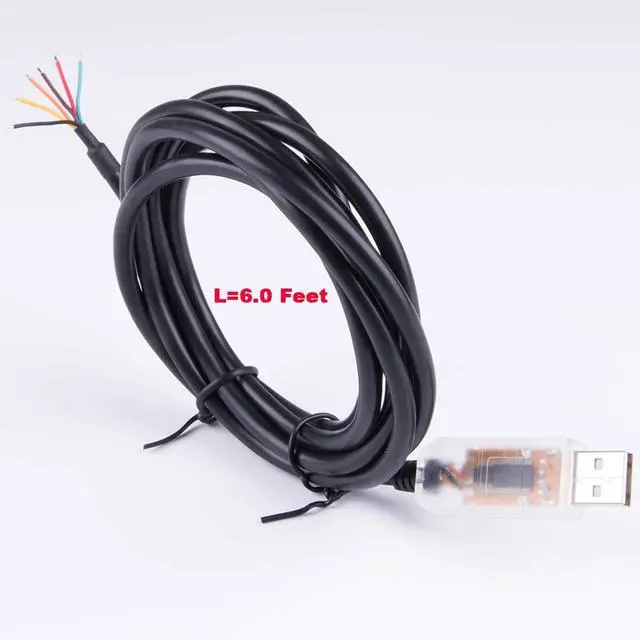

Length: 6FT/ 1.8 m, 24AWG, Bare Copper 6 wires

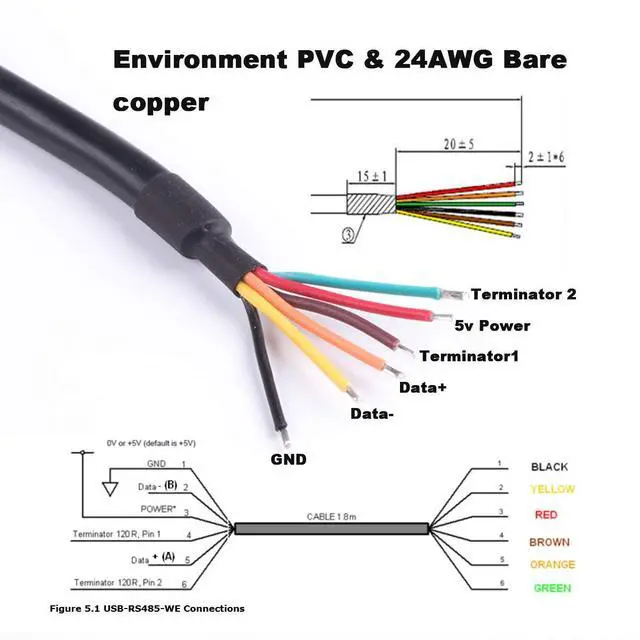

Signal Output: GND-Black, Data- -Yellow, Data+ Orange, 5V power-red, Termintor1-brown, Terminator 2-green Drivers are available which allow FTDI devices to work with the following operating systems: Windows 8.1 Windows 8.1 x64 Windows 8 Windows 8 x64 Windows Server2012 Windows Server 2008 R2 Windows 7 Windows 7 x64 Windows Server 2008 Windows Server 2008 x64 Vista Windows Vista x64 Windows Server 2003 Windows Server 2003 x64 Windows XP Windows XP x64 Windows ME Windows 98 Linux Mac OS X Mac OS 9 Mac OS 8 Windows CE. NET (Version 4.2 and greater) Android Windows RT Support for WinCE 7.0 Installation Guides If you need further support about how to pick up and install drivers, please
goes to http: //www. ftdichip. com/Support/Documents/InstallGuides.
htm Package: 1 X USB TO RS485 6 Wire End Serial Cable
