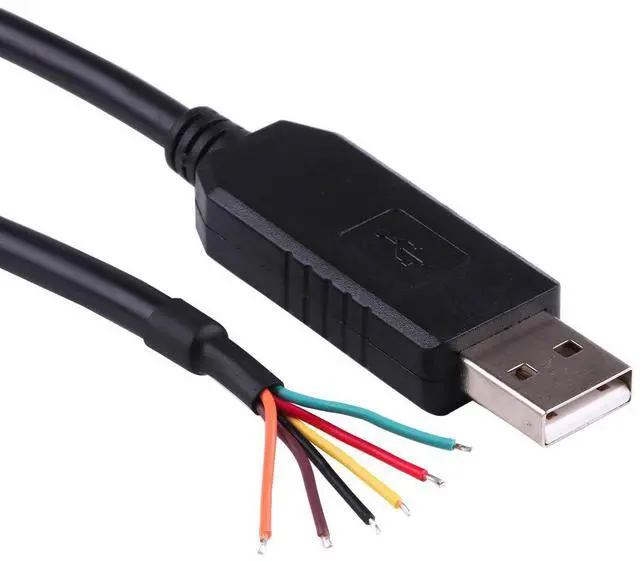

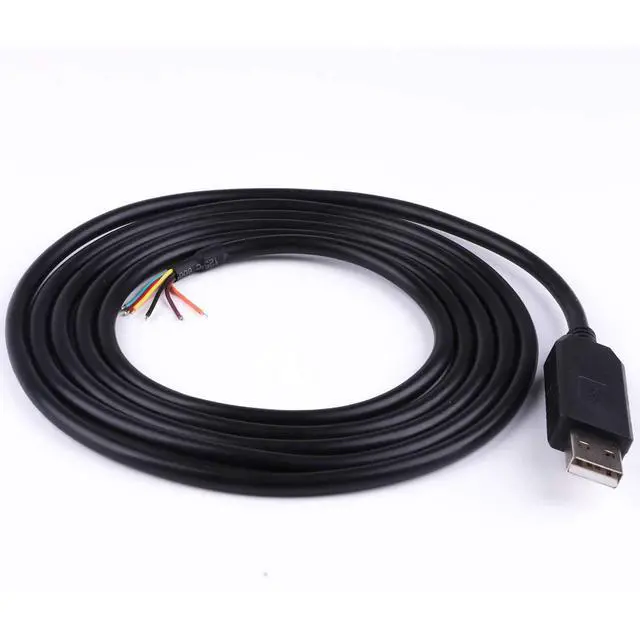

    FT232RL Chip USB to 3.3v TTL UART Serial Converter Wire End Stripped Connector Flash Program Download Cable 6FT Compatible TTL-232R-3V3-WE

    Limited time offer, ends 07/26 By EmpressTech

    Be the first to review this product...
    • USB to UART cable with +3.3V TTL level UART signals. Wire ended output allow most flexible connection; Connect directly to a microcontroller UART or I/O pins. +3.3V TTL output allows external logic to be powered from the USB port; FT232R chipset provides single chip USB to asynchronous serial data transfer interface. Works with all Windows and Mac OS versions; 6 Pinout Assignment provide Tx, Rx, RTS#, CTS#, VCC and GND. Data transfer rates from 300 baud to 3 Mbaud at TTL levels; Support Win 7 8 10 android Mac Android Linux WinCE full range OS
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

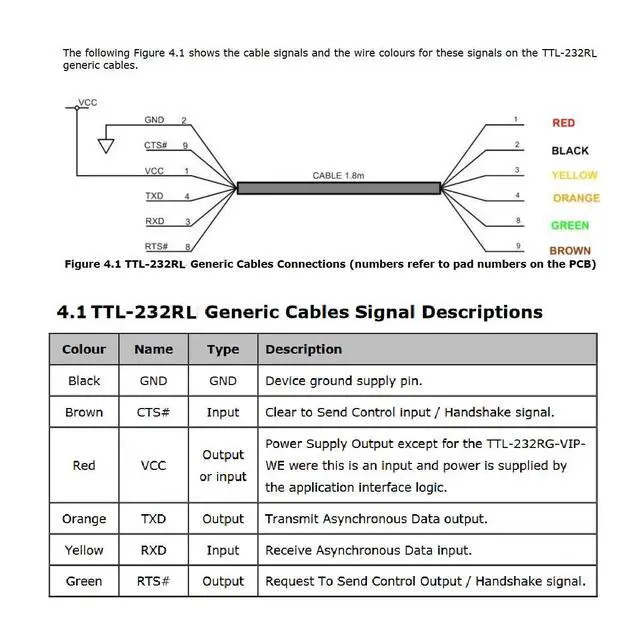

    Top Grade quality industrial grade materials. The cable works with all Windows and Mac OS versions including the latest Windows 10 and Mac OS X 10.10 (Yosemite) and 10.11 (EI Capitan). This cable has 6 wire ended outputs: GND (Black), CTS# (Brown), VCC(RED, 5V), TXD (Orange), RXD (Yellow), RTS# (Green). This cable can be used for a variety of applications: upgrading Legacy Peripherals to USB; interface Microcontroller UART or I/O to USB; interface FPGA / PLD to USB; USB Instrumentation PC interface; USB Industrial Control; USB Software / Hardware Encryption Dongles. Drivers are available which allow FT232RL devices to work with the following operating systems: Windows 8.1 Windows 8.1 x64 Windows 8 Windows 8 x64 Windows Server2012 Windows Server 2008 R2 Windows 7 Windows 7 x64 Windows Server 2008 Windows Server 2008 x64 Windows Vista Windows Vista x64 Windows Server 2003 Windows Server 2003 x64 Windows XP Windows XP x64 Windows ME Windows 98 Linux Mac OS X Mac OS 9 Mac OS 8 Windows CE. NET (Version 4.2 and greater) Android Windows RT Support for WinCE 7.0 Installation Guides If you need further support about how to pick up and install drivers, please
    goes to http: //www. ftdichip. com/Support/Documents/InstallGuides.
    htm Package: 1 X USB to FT232RL 3.3V TTL UART 6Pin Wire End Cable
