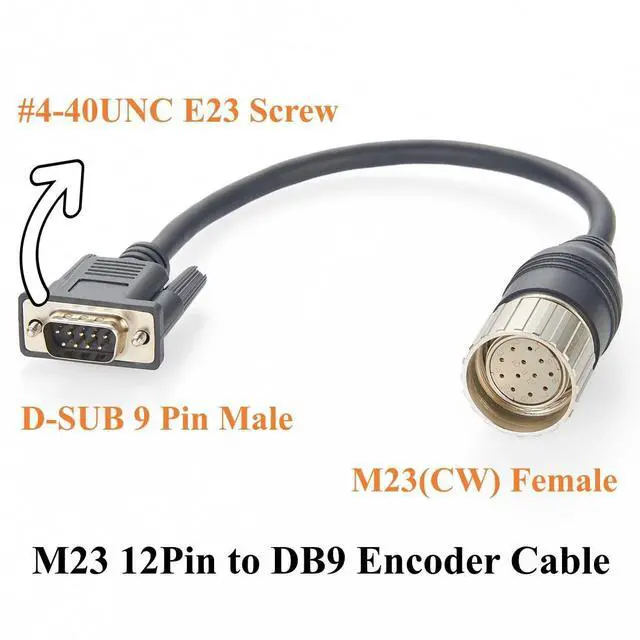

M23 12Pin Female to D-SUB 9 Pin Male Connecting Cable Shielded M23(CW) to DB9 Encoder PC-Programming Cable Compatible with Baumer 11119257(20cm)

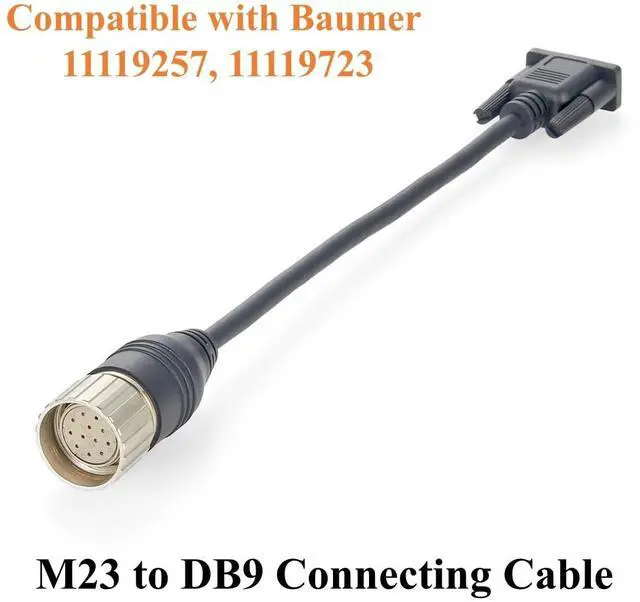

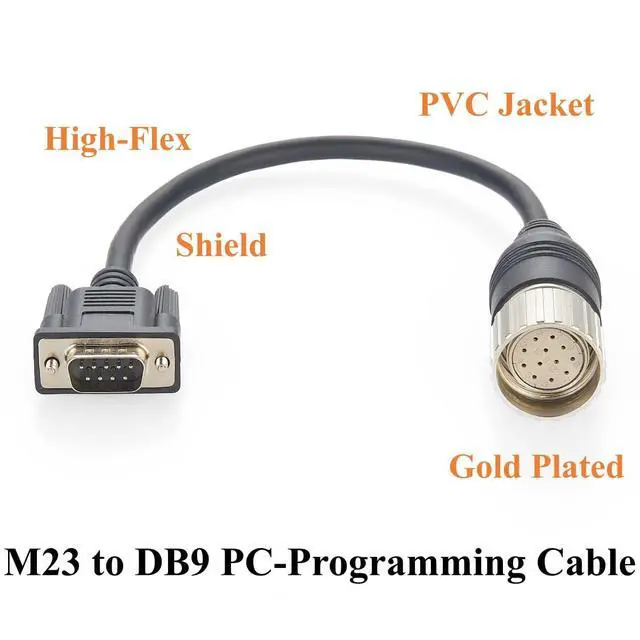

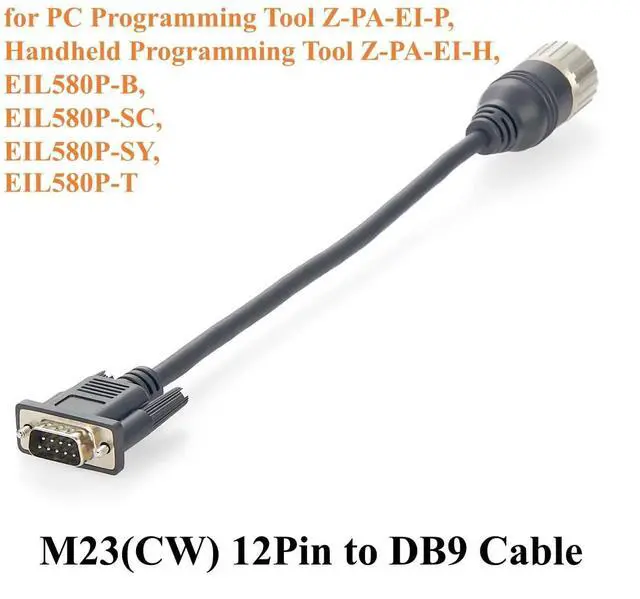

- Compatible with Baumer M23 Female to DB9 Male Connecting Cable, Compatible with Baumer M23(CW) Encoder, 11119257, 11119723 Cable. Perfect fit for Baumer EIL Series, Sensor, Actuator.; High Quality & Durable M23 12Pin to D-SUB 9 Pin PC-Programming Cable, Constructed with 26AWG*9C Copper Conductors, Aluminum Foil + Tin-Plated Copper Braided Shielding, Provide Excellent EMI/RFI Protection. PVC Jacket, High-Flex, Can be Repeatedly Bent, Abrasion-Resistant, Oil-Resistant, and Flame-Retardant. for Dynamic Applications Such as Drag Chain Systems and Robotic Arms.; Easy Connection M23 Female Connector with Metal Shell ensures IP67-level Protection (When Mated), the Standard DB9 Male Plug Provides Secure #4-40UNC E23 Screw locking.; Application M23(CW) 12Pin Female to DB9 Male Cable, for PC Programming Tool Z-PA-EI-P, Handheld Programming Tool Z-PA-EI-H, EIL580P-B, EIL580P-SC, EIL580P-SY, EIL580P-T.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Product

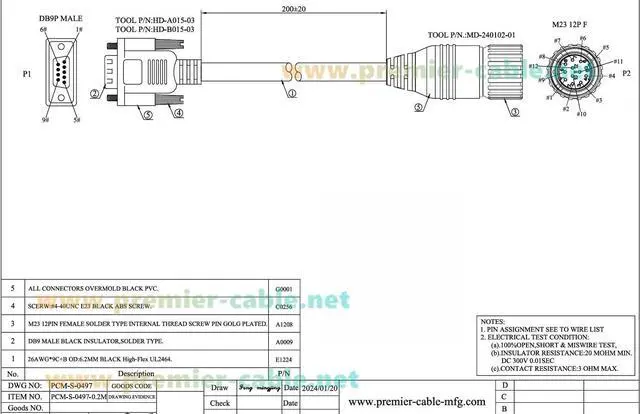

Name: Connection Cable Connector M23 (CW) /Connector D-SUB 9Pin DWG No.: PCM-S-0497
Connector A: M23 12Pin Female
Connector Connector B: D-SUB 9 Pin DB9 Male
Connector Length: 0.2M
Contact: Gold Plated
Operating Temperature: -10 ºC ~ 60 ºC
Cable Type: 26AWG*9C+B, Black
High-Flex UL2464 OD: 6.2MM
Screw: #4-40UNC E23 Black ABS Screw
Name: Connection Cable Connector M23 (CW) /Connector D-SUB 9Pin DWG No.: PCM-S-0497
Connector A: M23 12Pin Female
Connector Connector B: D-SUB 9 Pin DB9 Male
Connector Length: 0.2M
Contact: Gold Plated
Operating Temperature: -10 ºC ~ 60 ºC
Cable Type: 26AWG*9C+B, Black
High-Flex UL2464 OD: 6.2MM
Screw: #4-40UNC E23 Black ABS Screw
