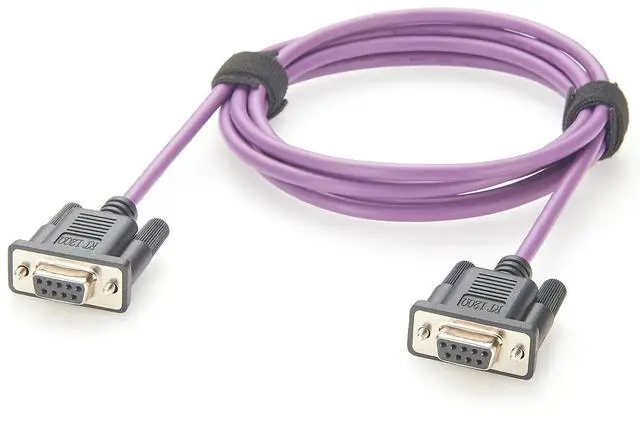

Main image of CAN Bus CAN FD Cable with 120 Terminator DB9 Female to Female CAN Network Cable(2M/6.6FT)

Alt view image 2 of 6 - CAN Bus CAN FD Cable with 120 Terminator DB9 Female to Female CAN Network Cable(2M/6.6FT)

Alt view image 3 of 6 - CAN Bus CAN FD Cable with 120 Terminator DB9 Female to Female CAN Network Cable(2M/6.6FT)

Alt view image 4 of 6 - CAN Bus CAN FD Cable with 120 Terminator DB9 Female to Female CAN Network Cable(2M/6.6FT)

Alt view image 5 of 6 - CAN Bus CAN FD Cable with 120 Terminator DB9 Female to Female CAN Network Cable(2M/6.6FT)

Alt view image 6 of 6 - CAN Bus CAN FD Cable with 120 Terminator DB9 Female to Female CAN Network Cable(2M/6.6FT)

Shop All Colorfire Products | Visit TERRA HAVEN Store

CAN Bus CAN FD Cable with 120 Terminator DB9 Female to Female CAN Network Cable(2M/6.6FT)

Be the first to review this product...

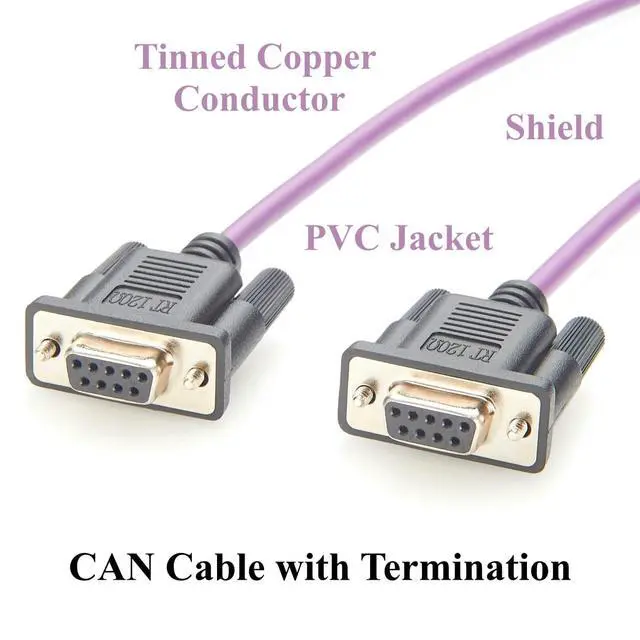

Standard DB9 Female The DB9 Female Connectors at both ends, Conform to CiA DS102-1 Standards, for Reliable and Consistent CAN Network Connectivity.; High-Quality & Durable CAN FD Bus Cable With Tinned Copper Conductors, Foil Shield, Provide Excellent EMI/RFI Protection. UL2464 PVC Jacket, Wear-Resistant, Anti-Aging, Flame-Retardant, and Oil-Resistant.; Built-in 120 Termination 120 Ohm Terminating Resistor Across CAN_L and CAN_H in Each DB9 Connector, Ensuring Proper Signal Integrity and Line Balancing for CAN bus Systems.; Wiring Configuration CAN Cable with Termination Signal Pin is CAN_H (Pin 7 to 7) and CAN_L (Pin 2 to 2), with CAN_GND wired from Pin 3 to 3.; Wide Compatibility High-Speed CAN Cable Compatible with IPEK-003001, for USB, PCI, Mini PCI, Compact PCI, Express, PCMCIA, PC/104, PC/104+, and ISA Interface.; Application DB9 Female CAN Bus Cable, for CAN and CAN FD bus Systems, Automotive Electronics Systems, ECUs, Industrial Automation, PLC, Machine Controllers and so on.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Specification: Product

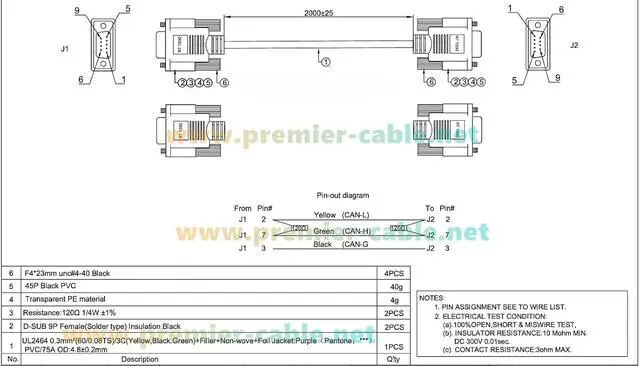

Name: CAN Bus Cable with two 120 Ohm Termination Resistors DWG No.: PCM-CAN-002

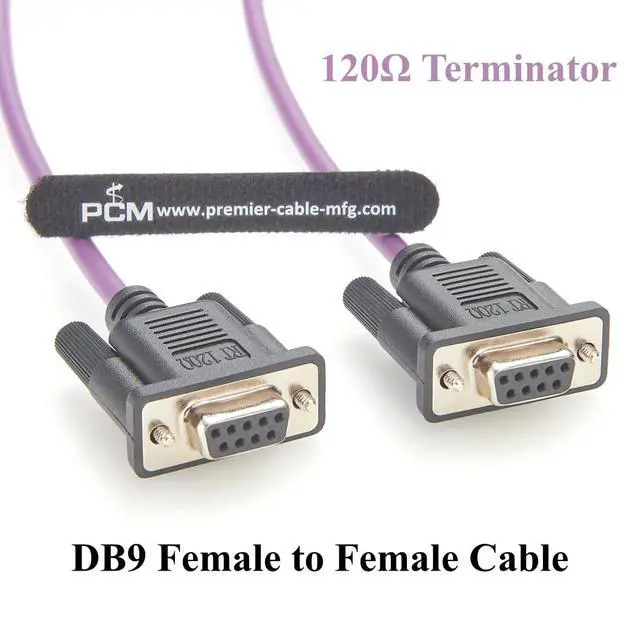

Connector Type: DB9 Female Connector with 120
Ohm Terminator Length: 2M/ 6.6FT
Cable Type: 0.3 mm²(60/ 0.08TS )/3C+Filler+Non-wove+Foil, UL2464
PVC Jacket OD: 4.8MM

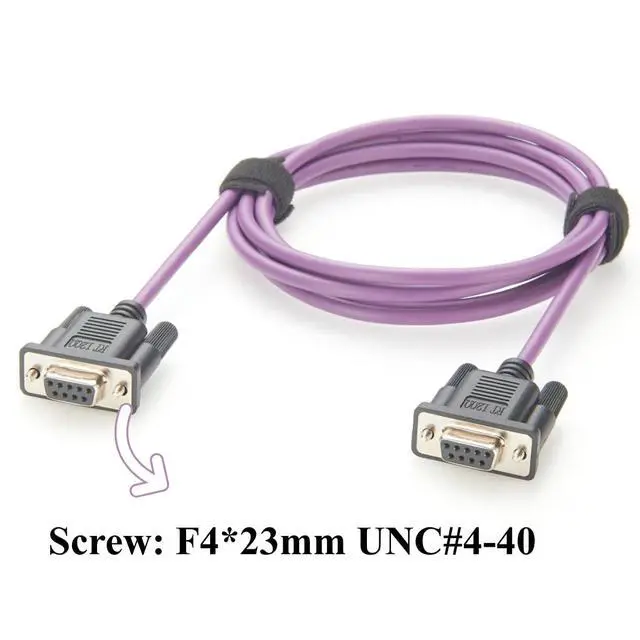

Screw: F4*23mm

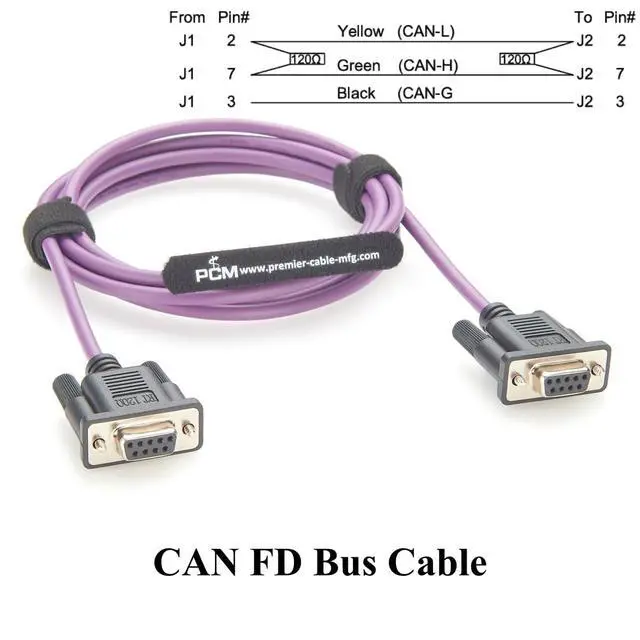

UNC#4-40 Pin Assignment:
CAN_L: Pin 2 Pin 2
CAN_H: Pin 7 Pin 7
CAN_GND: Pin 3 Pin 3 120 Ohm Terminating Resistor Across CAN_L and CAN_H in Each DB9 Connector
