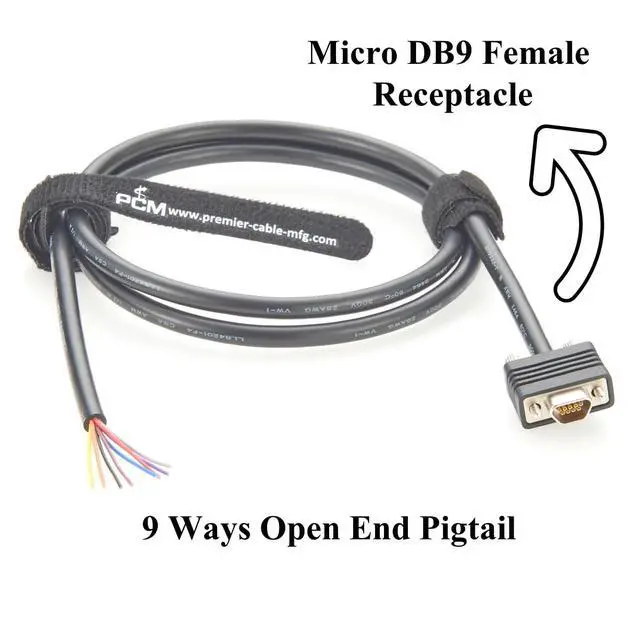

Micro DB9 Female to Open Free End Cable Micro-D 9 Pin Serial Pigtail Cable Compatible with 834219044 (1.6M)

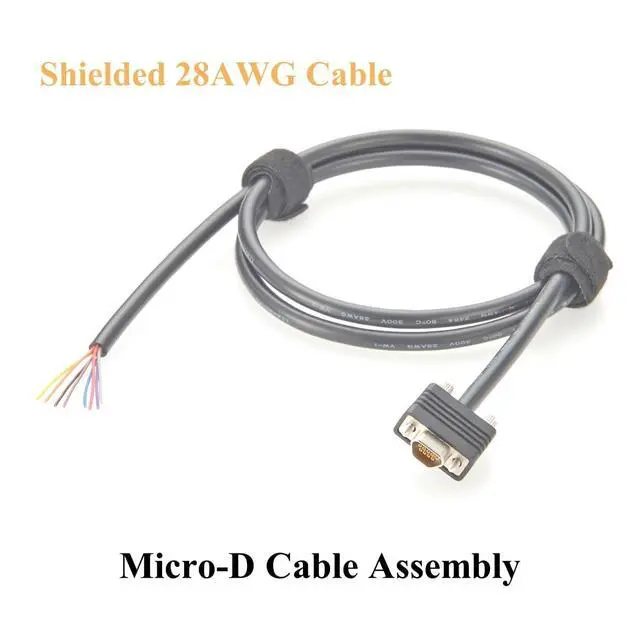

- Micro-D 9 Pin to Open End Pigtail Features a Micro-D 9 Pin Female connector on one end and open wire pigtail leads on the other end, allowing flexible customization, easy wiring, and convenient connection to terminal blocks, controllers, and electronic systems.; Compatible with 83421 Series Micro-D 9 Pin Pigtail Cable is designed as a replacement cable compatible with 834219042, 834219043, and 834219044 cable.; High-Quality Shielded Cable Micro DB9 Single Ended I/O Cable, built with 28AWG 9-core cable, aluminum foil and braid double shielding, improved protection against EMI/RFI interference. The durable PVC jacket offers excellent flexibility, abrasion resistance, and oil resistance.; Screw Locking Micro D-Sub 9Pin Female Connector equipped with #2-56 nickel plated screws, ensuring a secure connection, prevent loosening in vibration or mobile environments, for scenes with high vibration, such as industrial cameras on robotic arms or mobile devices.; Wide Applications Micro DB9 to Bare Wire Cable, Ideal for industrial automation, test and measurement equipment, embedded systems, control systems, medical devices, Data Acquisition, Robotics, Machine Vision, instrumentation, Automotive Testing, Aerospace Electronics, and custom electronic wiring applications.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

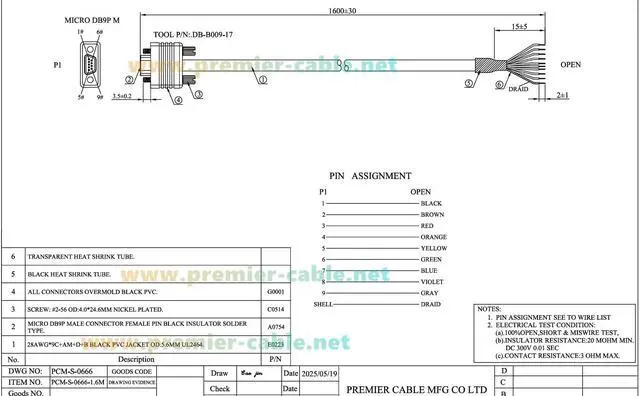

Specification: Product
Name: Micro DB9 Female to Open End Pigtail Cable
Part No.: PCM-S-0666
Length: 1.6M / 5.25FT
Connector A: Micro D-Sub 9Pin Micro DB9 Female
Connector Connector B: Open End Pigtail
Wire Gauge: UL2725 28AWG*9C+AE+D+B, PVC
Jacket OD: 5.6 mm

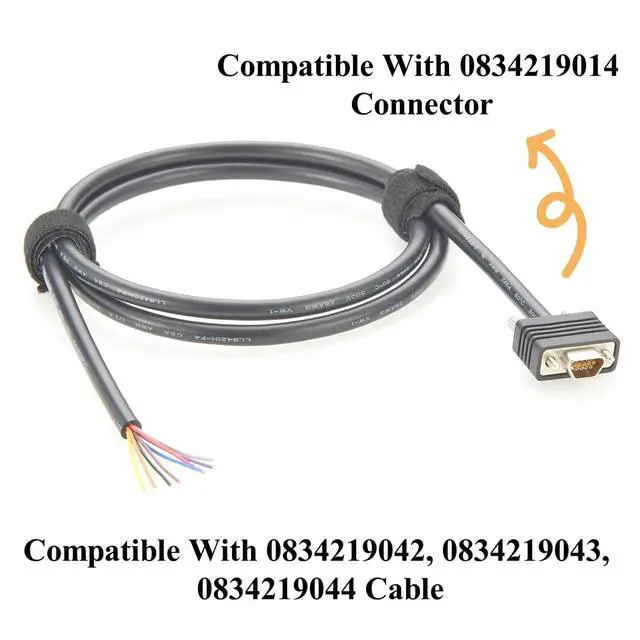

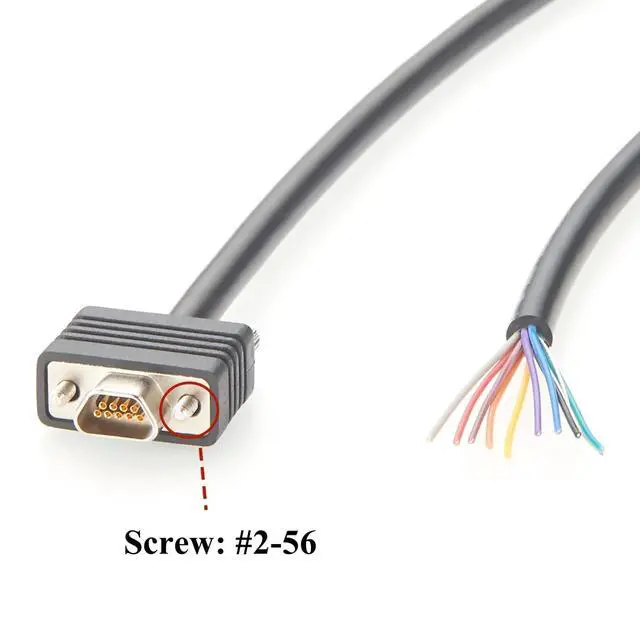

Screw: 2-56, OD: 4.0 * 24.6MM, Nickel Plated Compatible With 834219042, 834219043, 834219044
Name: Micro DB9 Female to Open End Pigtail Cable
Part No.: PCM-S-0666
Length: 1.6M / 5.25FT
Connector A: Micro D-Sub 9Pin Micro DB9 Female
Connector Connector B: Open End Pigtail
Wire Gauge: UL2725 28AWG*9C+AE+D+B, PVC
Jacket OD: 5.6 mm
Screw: 2-56, OD: 4.0 * 24.6MM, Nickel Plated Compatible With 834219042, 834219043, 834219044
