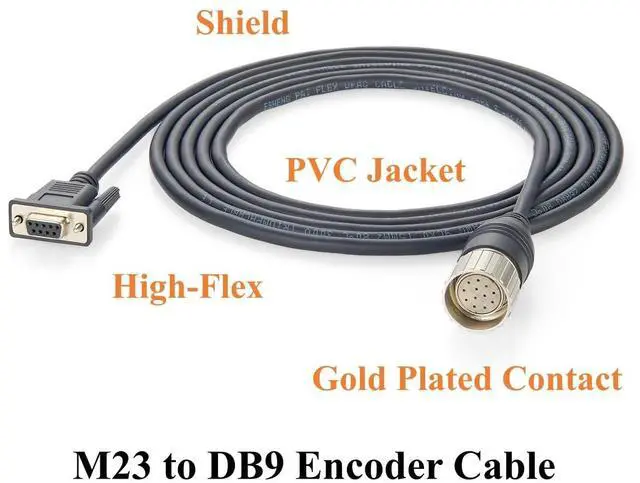

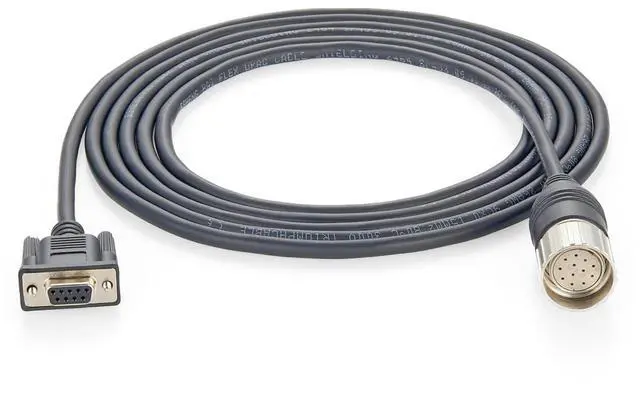

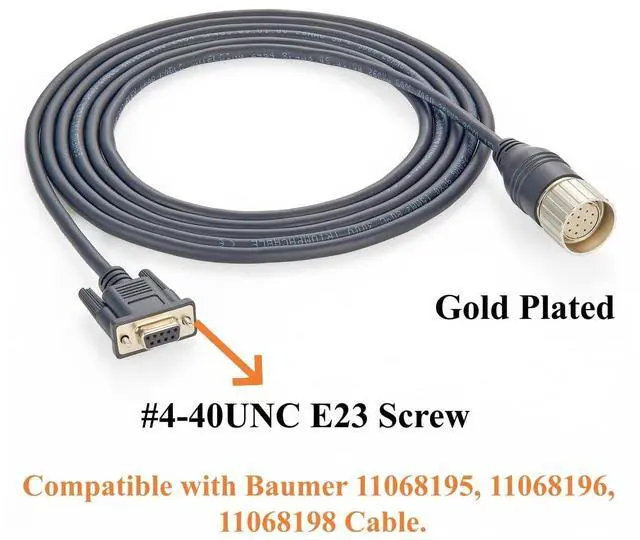

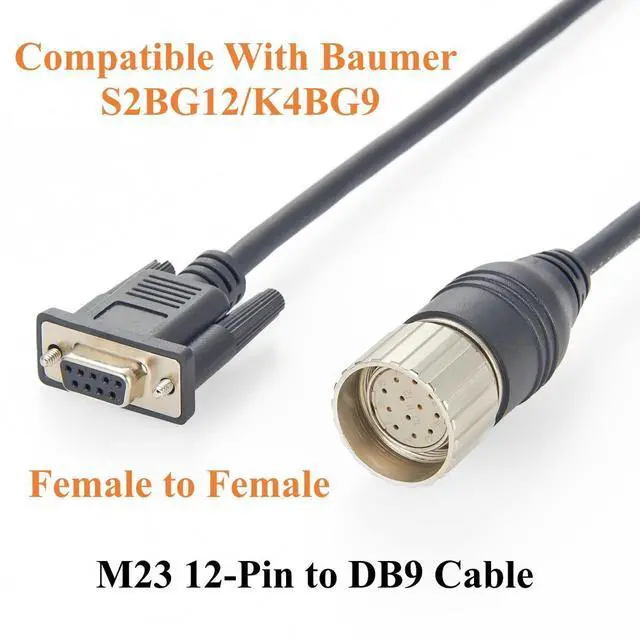

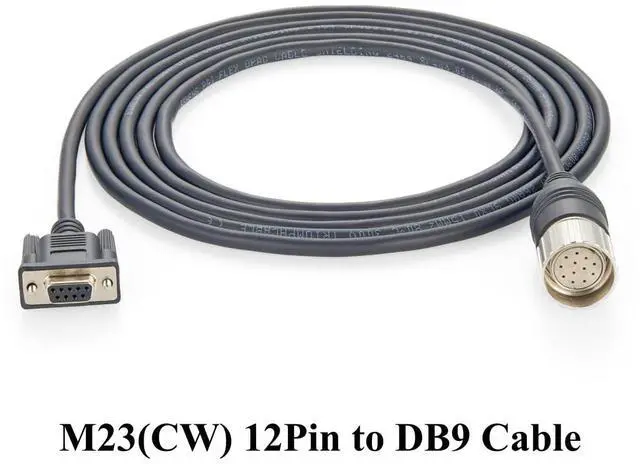

M23 12-Pin Female to DB9 Female Connection Cable Shielded M23(CW) to D-SUB 9Pin Sensor & Encoder Cable Compatible with Baumer S2BG12/K4BG9(3M/9.84FT)
- Compatible with Baumer M23 Female to DB9 Female Connecting Cable, Compatible with Baumer S2BG12/K4BG9 Connector, 11068195, 11068196, 11068198 Cable.; High Quality & Durable M23 12Pin to D-SUB 9 Pin Servo Motor Encoder Cable, Constructed with 26AWG*9C Copper Conductors, Aluminum Foil + Tin-Plated Copper Braided Shielding, Provide Excellent EMI/RFI Protection. PVC Jacket, High-Flex, Can be Repeatedly Bent, Abrasion-Resistant, Oil-Resistant, and Flame-Retardant. for Dynamic Applications Such as Drag Chain Systems and Robotic Arms.; Easy Connection M23 Female Connector with Metal Shell ensures IP67-level Protection (When Mated), the Standard DB9 Female Plug Provides Secure #4-40UNC E23 Screw locking.; Application M23(CW) 12Pin Female to DB9 Female Cable, for Industrial Automation, Sensors, PLCs, Encoders, Servo Motor, Robot, AGVs and so on.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Product

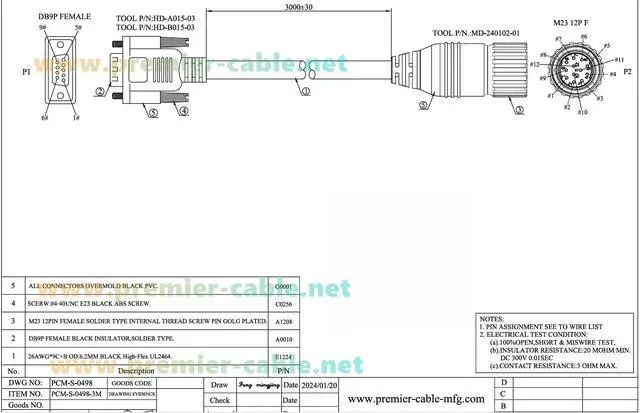

Name: Connection Cable Connector M23 (CW) /D-SUB 9Pin, S2BG12/K4BG9 DWG No.: PCM-S-0498
Connector A: M23 12Pin Female Connector, S2BG12
Connector B: D-SUB 9 Pin DB9 Female Connector, K4BG9
Length: 3M/ 9.84FT
Contact: Gold Plated
Operating Temperature: -40 ºC ~ 100 ºC (Fixed Cable); -25 ºC ~ 100 ºC (Moved Cable)
Cable Type: 26AWG*9C+B, Black
High-Flex UL2464 OD: 6.2MM
Screw: #4-40UNC E23 Black ABS Screw
Name: Connection Cable Connector M23 (CW) /D-SUB 9Pin, S2BG12/K4BG9 DWG No.: PCM-S-0498
Connector A: M23 12Pin Female Connector, S2BG12
Connector B: D-SUB 9 Pin DB9 Female Connector, K4BG9
Length: 3M/ 9.84FT
Contact: Gold Plated
Operating Temperature: -40 ºC ~ 100 ºC (Fixed Cable); -25 ºC ~ 100 ºC (Moved Cable)
Cable Type: 26AWG*9C+B, Black
High-Flex UL2464 OD: 6.2MM
Screw: #4-40UNC E23 Black ABS Screw
