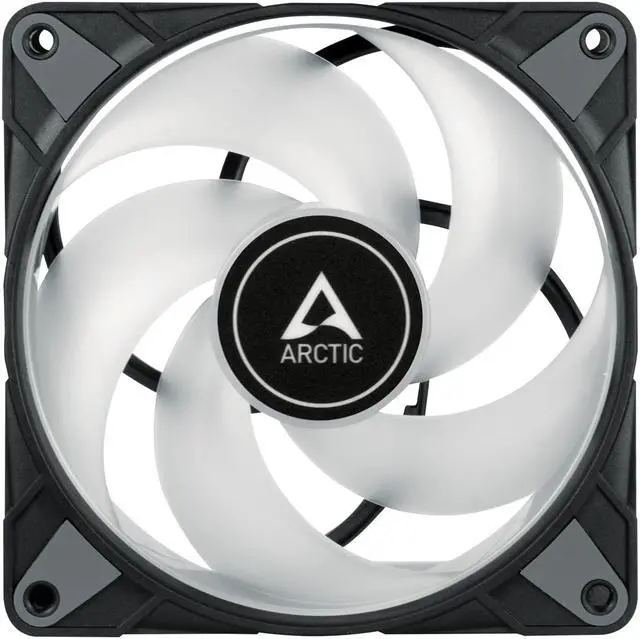

Arctic 120 Fan P12 PWM PST RGB 0dB Semi-Passive with Analog RGB Model ACFAN00186A
- Brand Arctic ,
- Model ACFAN00186A
- Fan Speed: 0 - 2000 rpm,
- Airflow: 48.8 CFM | 82,91 m³/h,
- Static Pressure: 1.85 mmH2O,
- Noise Level: 0.3 Sone,
- RPM Control: PWM,
- Connector: 4-Pin Connector + 4-Pin Socket,
- Fan Bearing: Fluid Dynamic Bearing,
- Warranty: 6 years,
- Electrical Fan Specifications
- Typical Voltage: 12 V DC,
- Current: 0.11 A,
- Cable Length: 400 mm + 80 mm,
- RGB Specifications
- Number of LEDs: 12 RGB LEDs,
- Typical Voltage: 12 V,
- Current: 0.2 A,
- Connector: 4-Pin 12 V-G-R-B Connector + 4-Pin Socket,

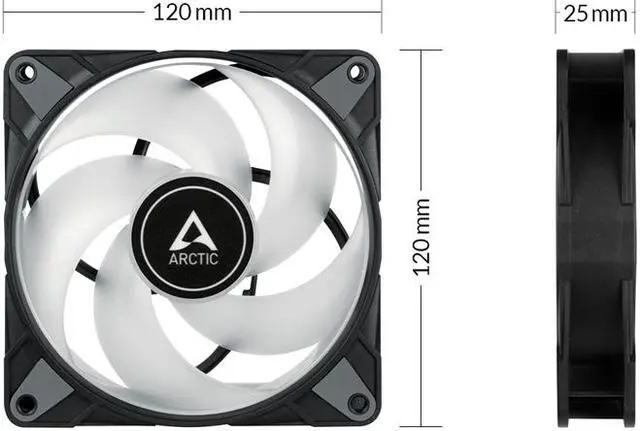

- Size & Weight
- Lenght: 120 mm,
- Width: 120 mm,
- Height: 25 mm,
- Weight: 131 g,
- Packaging
- Width: 30 mm,
- Height: 125 mm,
- Length: 127 mm,
- Weight: 0.159 kg,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- Features :

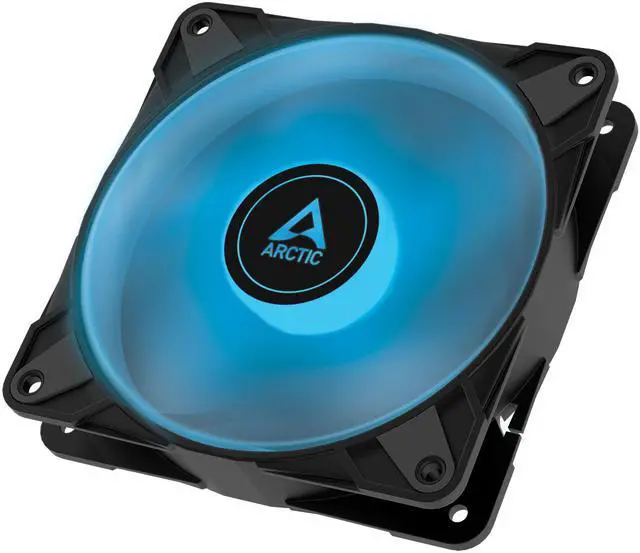

- RGB FOR FULL COLOURS
- The P12 PWM PST RGB 0dB has 12 analogue RGB LEDs in the fan barrel. These can be controlled uniformly and are compatible with the common RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the RGB mainboard connection or via an external controller and synchronised with the illumination of other hardware.
- 0DB MODE - ZERO RPM
- The speed of the P12 PWM PST RGB 0dB can be throttled to a standstill via PWM. This allows for silent operation in IDLE and at the same time guarantees maximum performance when needed.
- MAXIMUM SMOOTHNESS, MINIMUM VIBRATION
- The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P12 PWM PST RGB 0dB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.
- OPTIMISED FOR HIGH STATIC PRESSURE
- The P12 PWM PST RGB 0dB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.
- 0 TO 2000 RPM CONTROLLED VIA PWM PST
- With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P12 PWM PST RGB 0dB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.
- HIGH QUALITY PLAIN BEARING
- Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.
