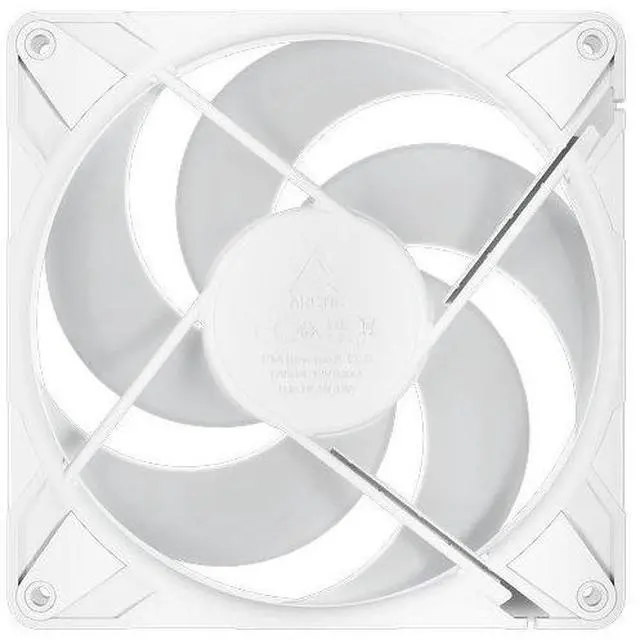

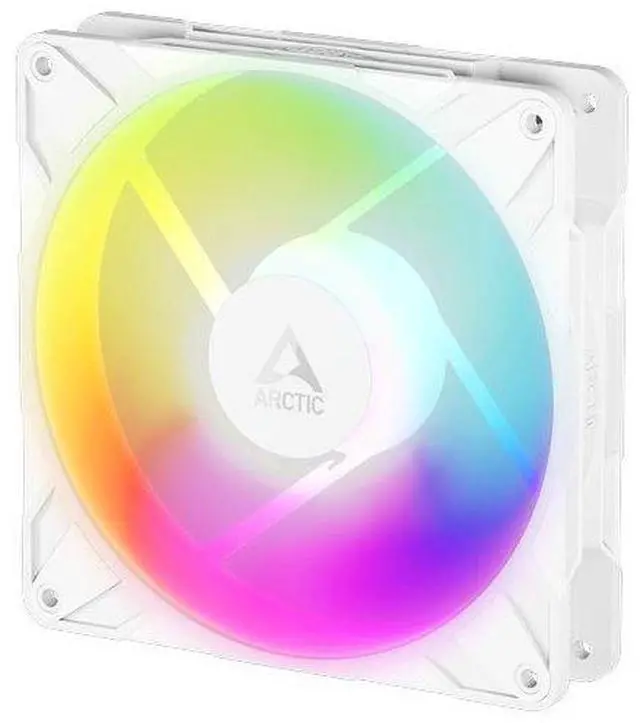

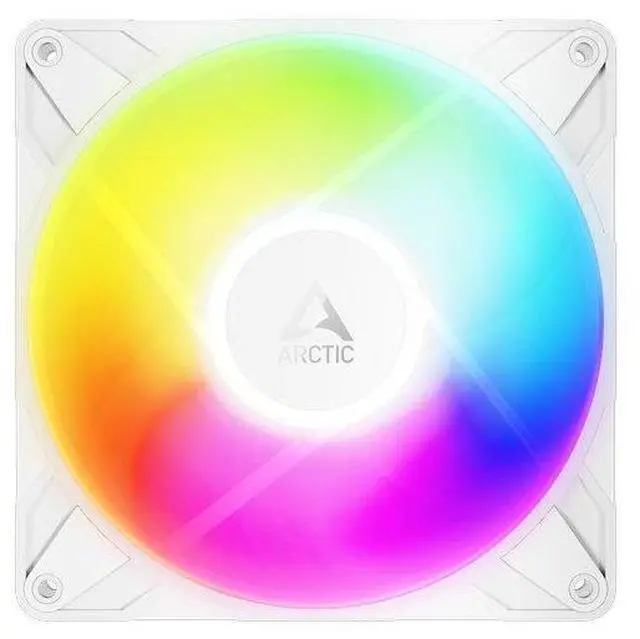

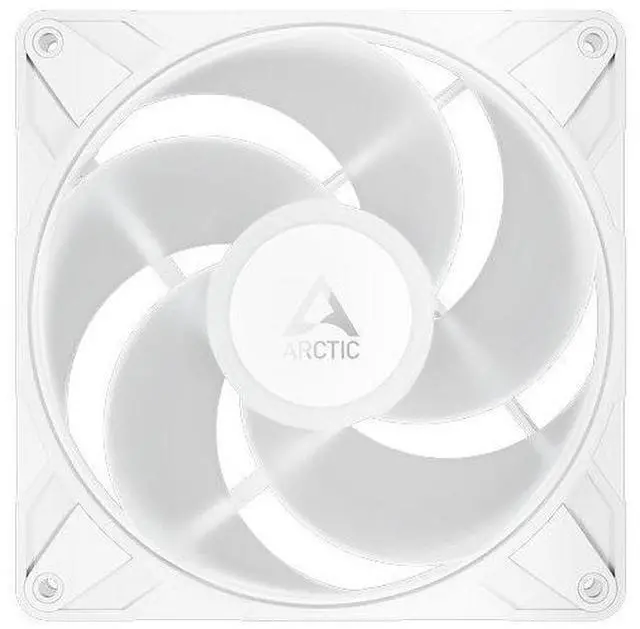

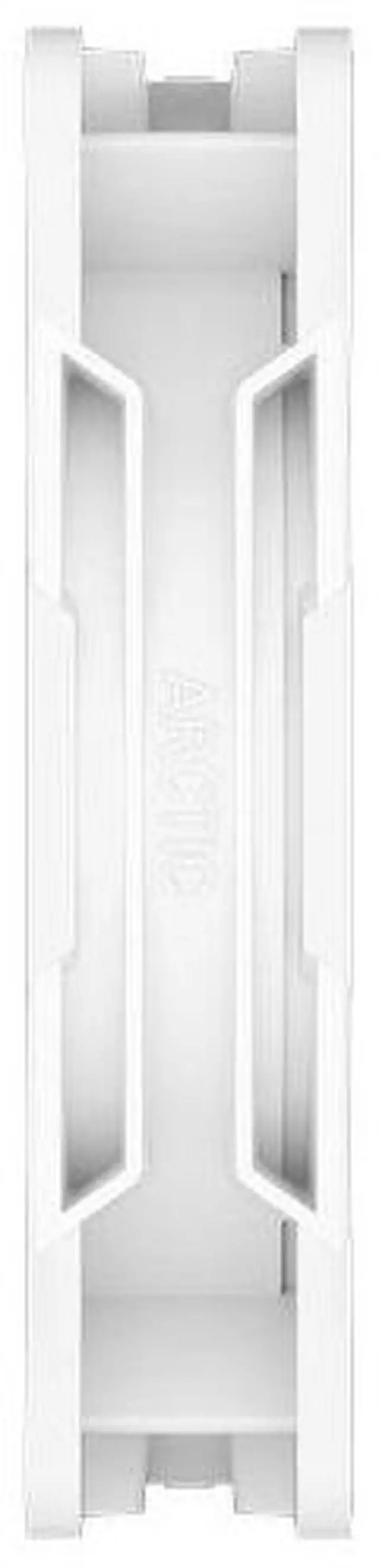

ARCTIC P14 Pro Reverse A-RGB 140 mm Premium Fan with Reverse Airflow, PWM Fan with Cable Splitter, 400-2650 RPM, 0 RPM <5% PWM, 5V Digital RGB, Hydrodynamic Bearing, 4-Pin - White (ACFAN00324A)
- REVERSED AIRFLOW: Special design that draws in air from the back side. Ideal for glass fronted designs and PC builds where conventional fans would spoil the appearance
- HIGH STATIC PRESSURE: Efficient even with resistance the generated airflow easily penetrates dense radiators, narrow perforated panels and mesh structures and ensures reliable cooling
- PWM CONTROL WITH WIDE SPEED RANGE: The speed can be progressively adjusted up to 2650 rpm via the 4-pin PWM connection the fan stops completely at less than 5% PWM
- PRECISE MANUFACTURING FOR MAXIMUM SMOOTH RUNNING: Minimal gaps, automatic balancing and high-precision measurement noticeably reduce vibrations for quiet, efficient and long-lasting performance
- SMOOTH-RUNNING FLUID DYNAMIC BEARING (FDB): The self-lubricating bearing minimizes noise during operation ideal for quiet, efficient cooling and a long, reliable service life
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
General Specifications
Warranty: 6 Years
Operating Ambient Temperature: 040 °C
Dimensions: 140 (L) x 140 (W) 30 (H) mm
Net Weight: 253 g
Fan Speed: 400 -2650 rpm PWM Controlled0 rpm below 5% PWM
Airflow: 98 cfm | 166.5 m³/h
Static Pressure: 5.1 mmH2O
Fan Bearing: Fluid Dynamic Bearing
Typical Voltage: 12 V DC
Start Up Voltage: 4 V DC
Current: 0.4 A
Cable Length: 400 mm + 80 mm Daisy-Chain Cable
Connector: 4-Pin Fan Plug + 4-Pin Socket
LEDs: 12x A-RGB Gen2 LEDs
Current | Voltage: 0.40 A | 5 V DC
Connector: 3-Pin A-RGB Plug + 3-Pin Socket

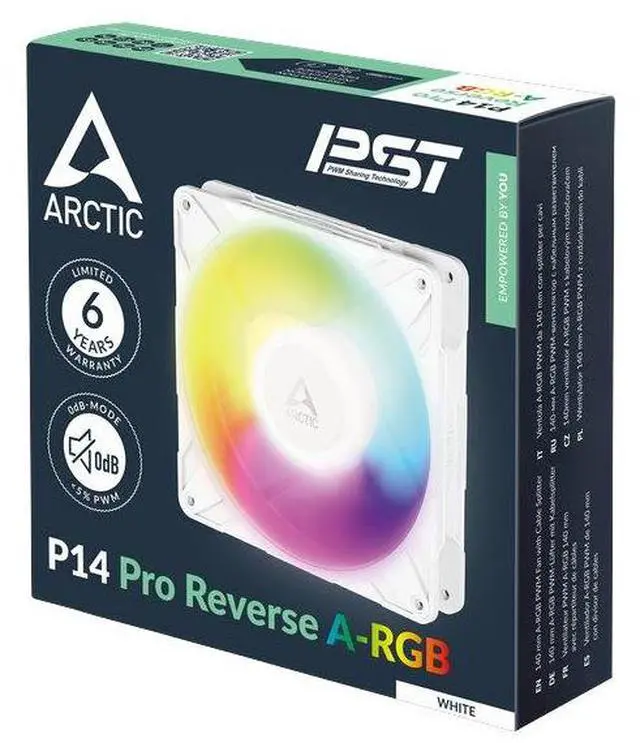

Packaging
Width: 145 mm (5.71 in)
Height: 35 mm (1.38 in)
Length: 145 mm (5.71 in)
Weight: 0.302 kg (0.67 lb)
