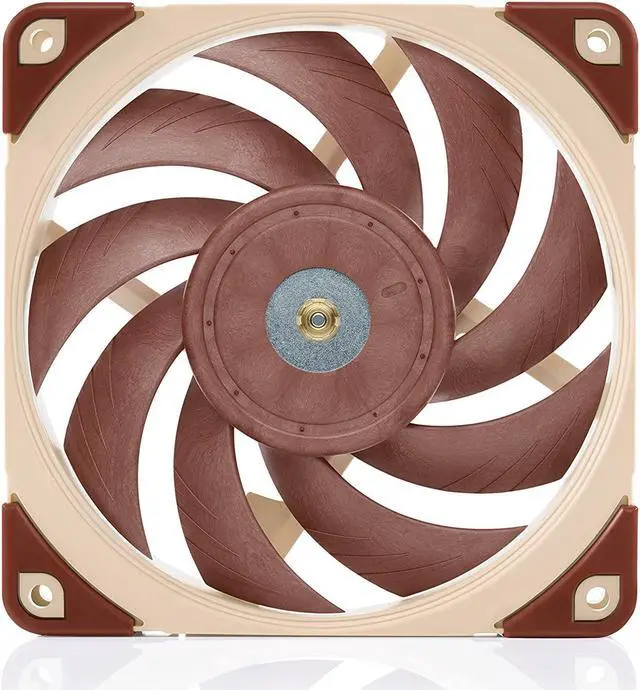

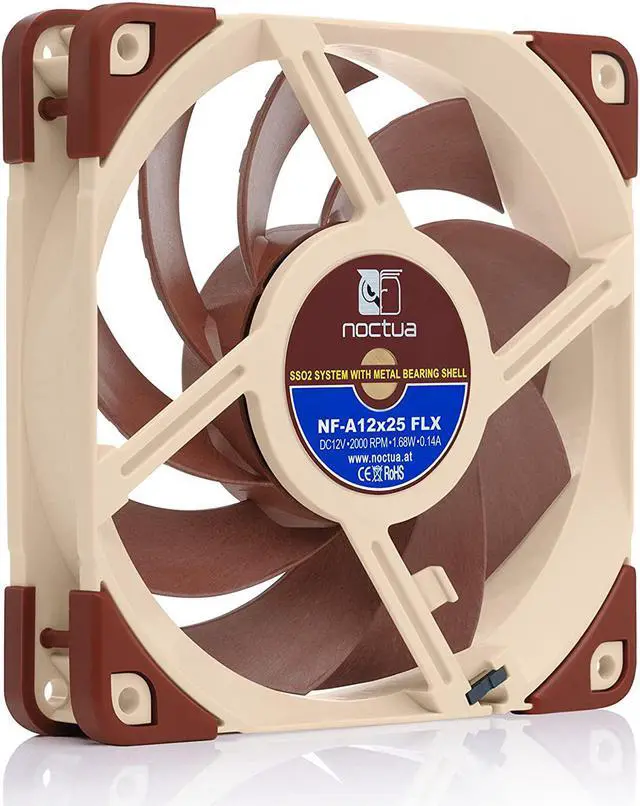

The NF-A12x25 is a highly optimised next-generation 120mm fan that integrates Noctuas latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimisation) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctuas A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether its in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 3-pin FLX version provides 2000/1700/1350rpm speed settings via the supplied Low-Noise Adaptors so as to give full flexibility in configuring the fan for maximum cooling capacity or near-silent acoustics. Topped off with exceptional running smoothness, Noctuas reference-class SSO2 bearing and a rich bundle of accessories, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.
Next-generation performance Noctuas 120mm fans such as the NF-F12 and NF-S12A are renowned as being among the best on the market and have received more than 400 awards and recommendations from the international press. With its further improved efficiency and novel, state-of-the-art engineering, the NF-A12x25 represents another step up in performance and manufacturing.

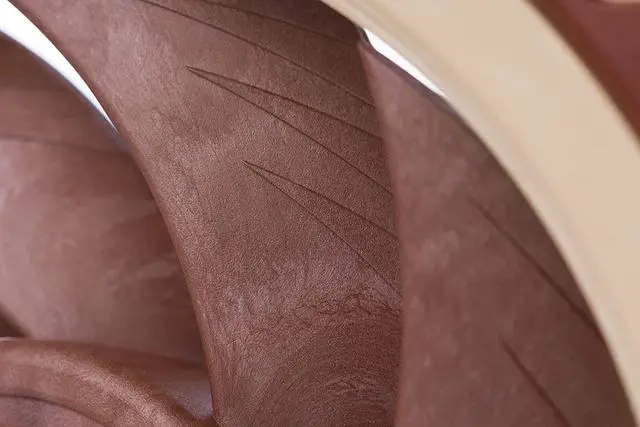

Sterrox liquid-crystal polymer compound The NF-A12x25s impeller is made from Noctuas novel Sterrox liquid-crystal polymer (LCP) compound that features extreme tensile strength, an exceptionally low thermal expansion coefficient and damping characteristics that are ideal for reducing resonance and vibration phenomena in advanced fan-blade designs.
Ultra-tight tip clearance The NF-A12x25 has a record tight tip clearance (distance between the blade tips and the inside of the frame) of only 0.5mm. This highly ambitious design sets a new benchmark for 120mm fans and helps the NF-A12x25 to work more efficiently against back pressure, such as on heatsinks or radiators, by reducing leak flows through the gap between impeller and frame.
Metal-reinforced motor hub The centrepiece of the NF-A12x25s motor hub is made entirely from steel and the axle mount is reinforced with an additional brass structure. In combination, both measures ensure ultimate precision and increased stability in the critical hub area.

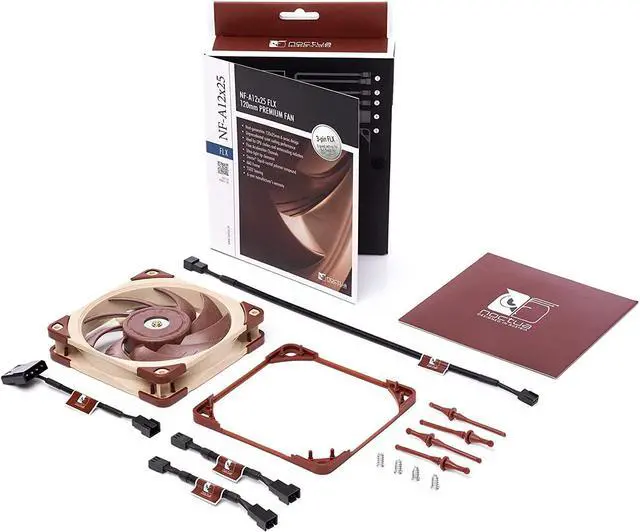

Scope of delivery NA-RC15 Low-Noise Adaptor (L.N.A)
NA-RC13 Ultra-Low-Noise Adaptor (U.L.N.A)
NA-AC1 3:4-pin adaptor cable
NA-EC2 30cm extension cable
4x NA-AV2 anti-vibration mounts
NA-AVG1 anti-vibration gasket for water cooling radiators
Fan screws
Highly optimised P/Q curve for all applications The NF-A12x25s sophisticated aerodynamic design allows for a pressure to airflow (P/Q) curve that is extremely strong in the critical mid-section. This means that the NF-A12x25 offers excellent performance in both static pressure demanding and airflow demanding applications.
