Very quiet workstations and desktop PCs
High-resolution gaming and multimedia systems
Super silent water-cooled PCs
Extremely overclocked systems

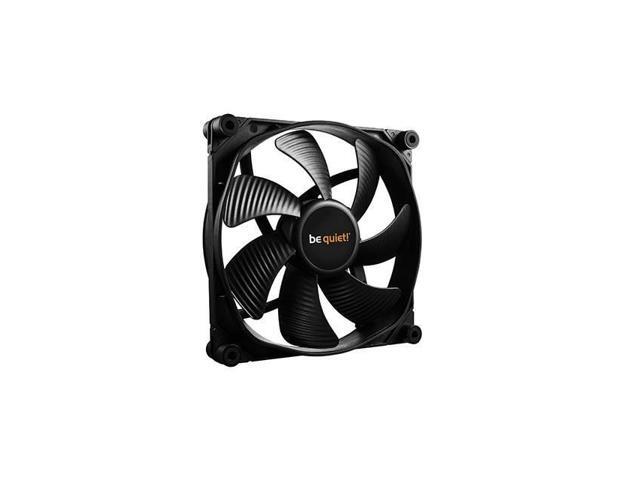

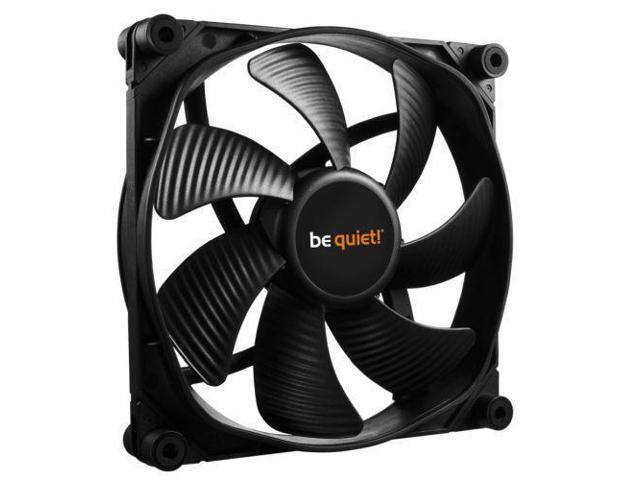

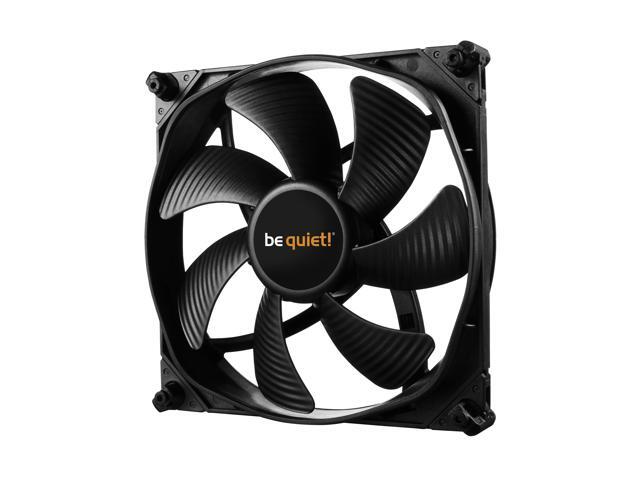

be quiet! SilentWings® 3 fans stand for state-of-the-art technology, virtually inaudible operation and superior cooling. Their secret: a smooth-running 6-pole fan motor, an advanced fluid-dynamic bearing, a unique airflow-optimized fan blade design and a fan frame with funnel-shaped air inlets.
SilentWings 3 »
They are your best choice for any application that requires the ultimate in quiet operation and uncompromised performance.
Innovative 6-pole fan motor
6-pole fan motor with 3 phases for very low power consumption, less vibrations and therefore quieter operation.
High-quality motor controller
The high quality motor controller leads to a minimization of electronic noises.
Airflow-optimized fan blades
Seven fan blades with optimized surface structure ensure virtually inaudible operation and excellent airflow.

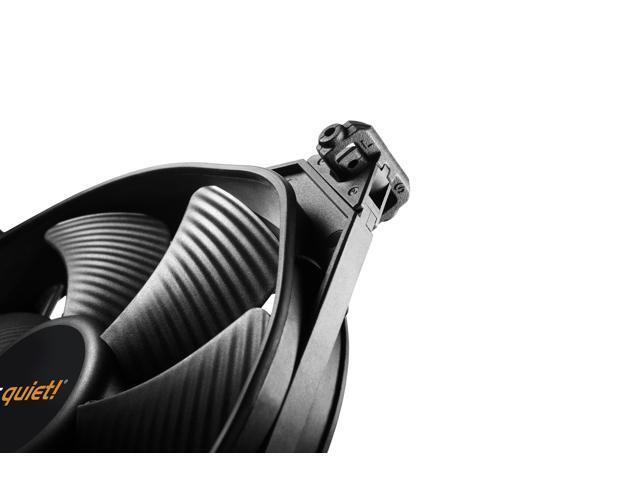

Removable anti-vibration mountings on all four edges of the fan reduce the transmission of vibrations to the PC case to a minimum.
Rubberized fan frame
The rubberized fan frame is equipped with funnel-shaped air inlets for excellent air circulation and pressure.
Technical Data »
|Model||140mm PWM||120mm PWM||140mm PWM high-speed||120mm PWM high-speed|
|Dimensions, (W x H x D in mm)||140 x 140 x 25||120 x 120 x 25||140 x 140 x 25||120 x 120 x 25|
|Fan speed (rpm) @ 100% PWM||1,000||1,450||1,600||2,200|
|Noise level (dB(A)) @ 100% PWM||15.5||16.4||28.1||28.6|
|Airflow @ 12V (cfm / m3/h)||59.5 / 101.09||50.5 / 80.47||77.57 / 131.79||73.33 / 124.58|
|Air pressure (mm / H2O)||1.08||1.79||2.16||3.37|
|Voltage range DC (V)||5-13.2||5-13.2||5-13.2||5-13.2|
|Input power (W)||3.6||1.44||6||4.44|
|Input current (A)||0.3||0.12||0.5||0.37|
|Lifetime @ 25°C (h)||up to 300,000||up to 300,000||up to 300,000||up to 300,000|

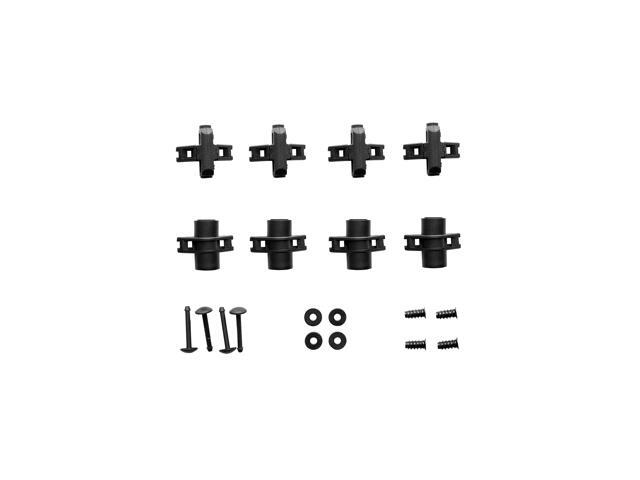

|Accessories||Rubber & hard plastic mountings, fan screws|
6-Pole Fan Motor »
6 poles contribute to:
