Thermaltake Level 20 XT E-ATX Extreme LCS Capable Split Level Modular Gaming Cube Case CA-1L1-00F1WN-00, Black
- 4-Sided Glass Viewing Protection: Surrounded in 4mm thick tempered glass panels providing easy access to components inside the chassis
- Go Vertical: With a landscape layout for the motherboard, avoid GPU sag with a native vertical mounting for multiple expansion components
- Extreme Liquid Cooling: Supporting up to Dual 480mm Radiators (Top) with extra space for pumps and proper cable management
- Type-C Supported: Supports USB 3.0, USB 2.0 and Type-C Connections from the Top I/O panel
- Dismantlable Modular Design: Build from the ground up with removable panels, racks, brackets and more!
- Warranty: 3 Years
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

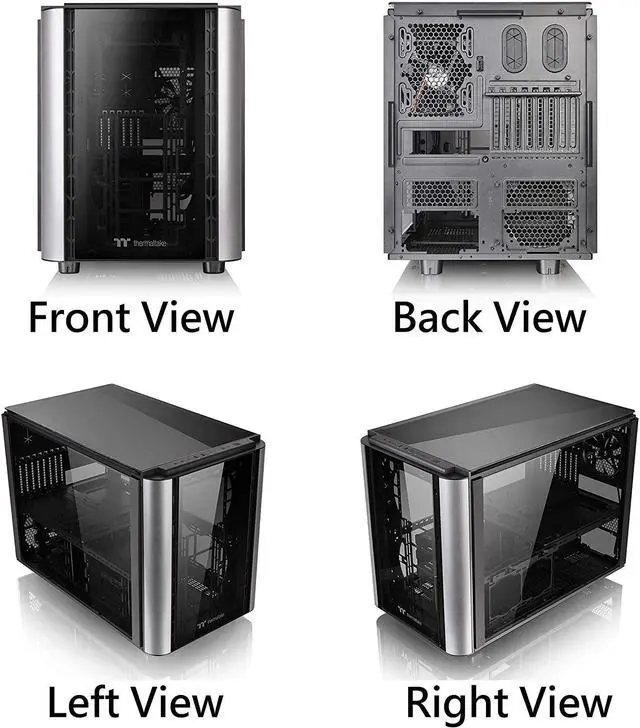

Level 20 XT, as an embodiment of Thermaltake's cultural foundation, user-friendly consideration, and technology advancement, is a new flagship model that coincides with Thermaltake's 20th anniversary.

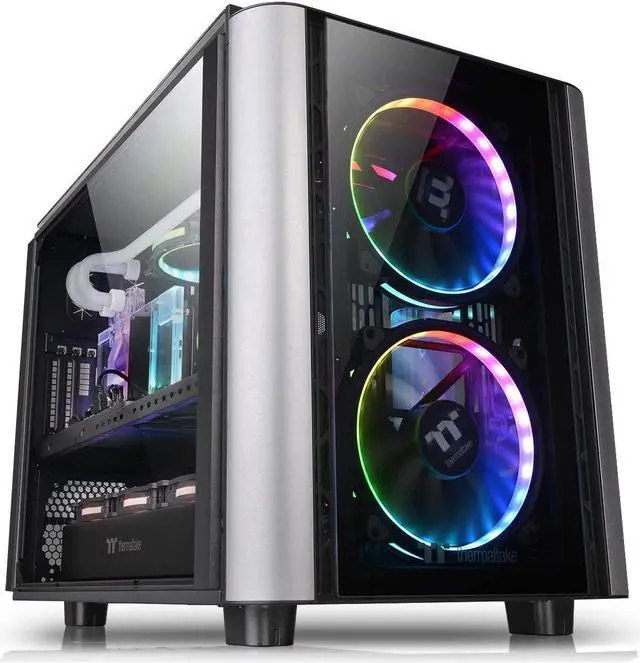

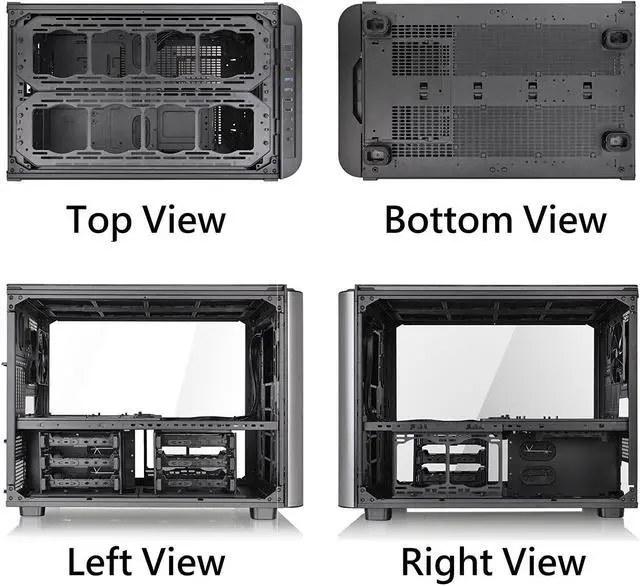

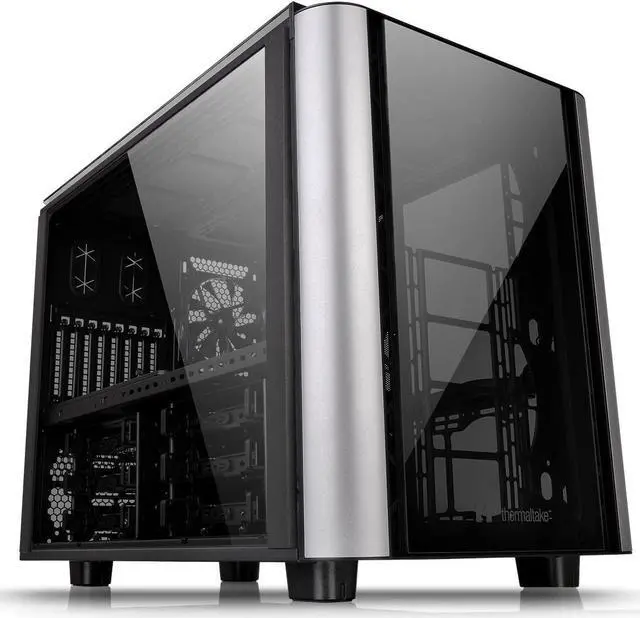

Thermaltake is thrilled to present the latest TT Premium product line – Level 20 Series which commemorates 20 years of dedication to the PC industry. Under this product line is the new Level 20 Series – Level 20 XT. Level 20 XT is a cube case specially designed to show off custom liquid cooling systems. The level 20 XT has a unique flat motherboard design that puts components on display from any angle, and a split-level design that separates cooling, PSU and hardware components in the upper and lower sections. The Level 20 XT takes our latest case innovations and wraps them in an ultra-modern style that’s utterly unique in the case market today. Stand out from the crowd with the Level 20.
Model: Level 20 XT
P/N: CA-1L1-00F1WN-00
Case Type: E-ATX Cube Case
Dimension (H x W x D): 515 x 394 x 623 mm (20.3 x 15.5 x 24.5 inch)
Net Weight: 20.4 kg / 44.97 lb
Side Panel: 4mm Tempered Glass x 4(Left & Right & Front & Top)
Color: Exterior & Interior : Black
Material: SPCC
Cooling System
Rear (exhaust) : 140 x 140 x 25 mm fan (1000rpm, 16dBA)

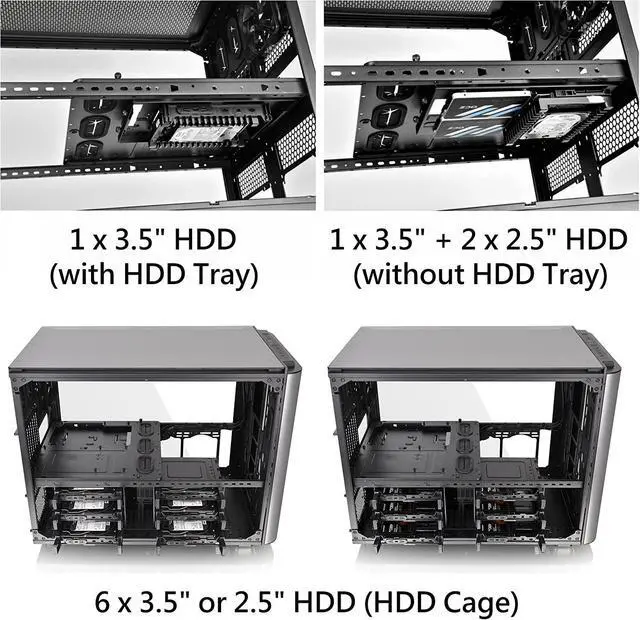

Drive Bays
-Accessible 6 x 3.5’’ or 2.5’’ (HDD Cage)
-Hidden 1 x 3.5’’, 2 x 2.5’’ (M/B Tray)
Expansion Slots: 8
Motherboards: 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13 (Extend ATX)

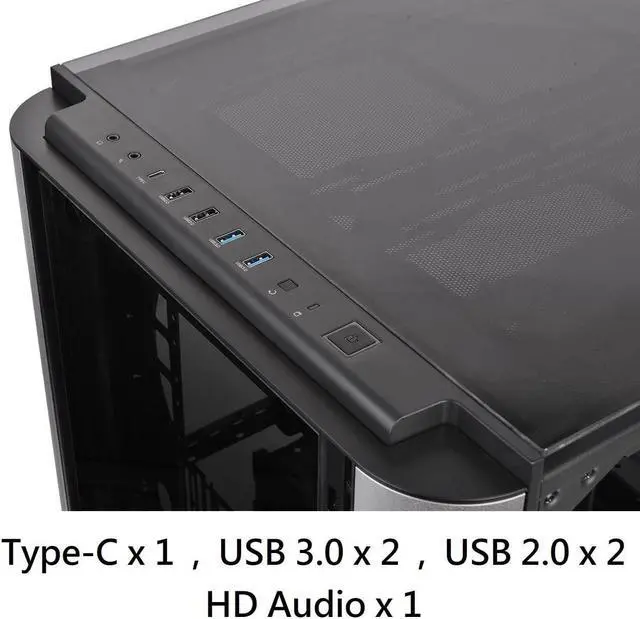

I/O Port: USB 2.0 x2, USB 3.0 x2, HD Audio x 1, Type-C x1
PSU: Standard PS2 PSU (optional)
Fan Support
Front: 3 x 120mm, 2 x 140mm, 2 x 200mm
Top: 8 x 120mm, 6 x 140mm, 2 x 200mm
Rear: 2 x 120mm or 2 x 140mm
Bottom: 3 x 120mm
Left / Right Side: 4 x 120mm, 3 x 140mm

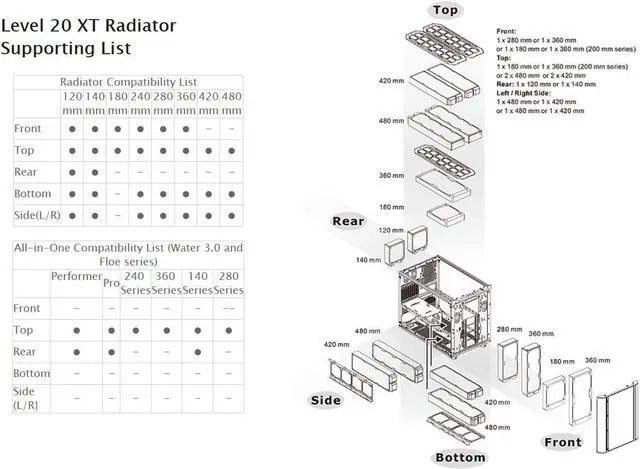

Radiator Support
Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm
Top:
2 x 120mm or 2 x 240mm or 2 x 360mm or 2 x 480mm
2 x 140mm or 2 x 280mm or 2 x 420mm
Rear:
1 x 120mm or or 1 x 140mm
Left / Right Side:
1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Bottom:
1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Clearance
CPU cooler height limitation: 250mm
VGA length limitation: 400mm(with ODD cage)
590mm(without ODD cage)
PSU length limitation: 220mm (With Bottom Fan)
Thermaltake is thrilled to present the latest TT Premium product line – Level 20 Series which commemorates 20 years of dedication to the PC industry. Under this product line is the new Level 20 Series – Level 20 XT. Level 20 XT is a cube case specially designed to show off custom liquid cooling systems. The level 20 XT has a unique flat motherboard design that puts components on display from any angle, and a split-level design that separates cooling, PSU and hardware components in the upper and lower sections. The Level 20 XT takes our latest case innovations and wraps them in an ultra-modern style that’s utterly unique in the case market today. Stand out from the crowd with the Level 20.
Model: Level 20 XT
P/N: CA-1L1-00F1WN-00
Case Type: E-ATX Cube Case
Dimension (H x W x D): 515 x 394 x 623 mm (20.3 x 15.5 x 24.5 inch)
Net Weight: 20.4 kg / 44.97 lb
Side Panel: 4mm Tempered Glass x 4(Left & Right & Front & Top)
Color: Exterior & Interior : Black
Material: SPCC
Cooling System
Rear (exhaust) : 140 x 140 x 25 mm fan (1000rpm, 16dBA)
Drive Bays
-Accessible 6 x 3.5’’ or 2.5’’ (HDD Cage)
-Hidden 1 x 3.5’’, 2 x 2.5’’ (M/B Tray)
Expansion Slots: 8
Motherboards: 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13 (Extend ATX)
I/O Port: USB 2.0 x2, USB 3.0 x2, HD Audio x 1, Type-C x1
PSU: Standard PS2 PSU (optional)
Fan Support
Front: 3 x 120mm, 2 x 140mm, 2 x 200mm
Top: 8 x 120mm, 6 x 140mm, 2 x 200mm
Rear: 2 x 120mm or 2 x 140mm
Bottom: 3 x 120mm
Left / Right Side: 4 x 120mm, 3 x 140mm
Radiator Support
Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm
Top:
2 x 120mm or 2 x 240mm or 2 x 360mm or 2 x 480mm
2 x 140mm or 2 x 280mm or 2 x 420mm
Rear:
1 x 120mm or or 1 x 140mm
Left / Right Side:
1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Bottom:
1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Clearance
CPU cooler height limitation: 250mm
VGA length limitation: 400mm(with ODD cage)
590mm(without ODD cage)
PSU length limitation: 220mm (With Bottom Fan)
