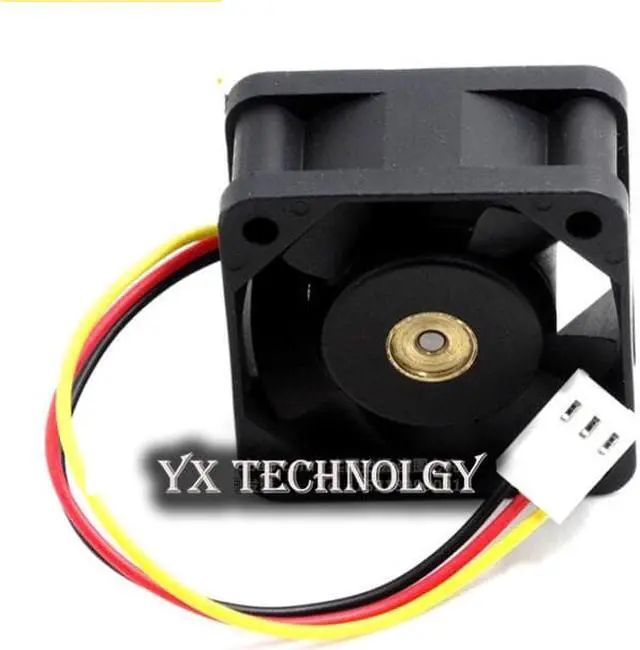

cooling fan A90L-0001-0551 # A 109P0424H6D23 fan 40mm 4cm DC24V 0.07A 40 * 40 * 20mm server axial fans drive
- Hydro Bearing
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

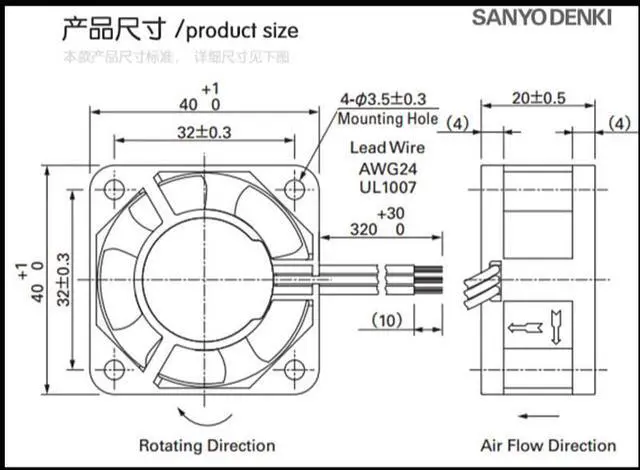

Model: 109P0424H6D23Size: 40 * 40 * 20mmVoltage: DC24VVoltage range: 12V-28VCurrent: 0.07ASpeed: 7400rpmAir volume: 26.8cfmNoise: 16.5dbPower: 1.68WWorking temperature: -10 ° C-70 °CBearing: maintenance- double ball bearingsLife: 25 ° expected life of 35000hUses: inverter cooling, chassis, power supply, server and other equipment cooling purposes. The TheFeatures: overwhelming long working life, 180,000 hours of the average time between failures; no compromise high-precision high-quality parts structure.Life: 8.0000 hours (25 °, 45 ~ 85% relative humidity environment)Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;Fan: injection molding, PBT + 30% glass fiber + VO grade flame retardant;Fan rotation: counterclockwise from fan blade;Operating temperature: -10 degrees Celsius to +70 degrees Celsius;Storage temperature: -40 degrees Celsius to +70 degrees Celsius;Bearing: high-precision ball bearings;Power supply range: plus or minus 15% of rated power supply;Insulation resistance: greater than 500 megohms;Withstand voltage: drain current 0.5mA 500V / 1 minute;Working life: ambient temperature of 25 degrees when 80,000 hours
