D2E133-AM47-94 Original ebmpapst fan D2E133-AM47-01 230V double inlet centrifugal fan blower

Category Fan-AC
Description BLOWER CENT 171X254MM 230VAC
Series D2E133
Manufacturer EBM-Papst Industries Inc
Airflow 300.0 CFM (8.50m³ / min)
Bearing type Ball
Fan Type Centrifugal Blower
Features-
Noise 56 dB (A)
Power (W) 200W
RPM 1800 RPM
Size / Dimensions Rectangular / Circular-171mm long x 180mm high x 215mm wide (128mm diameter)
Static pressure-
Termination 4 leads
Voltage_rated 230VAC
Weight 7.7 lbs (3.5kg)
Operating temperature -40 ~ 176 ° F (-40 ~ 80 ° C)

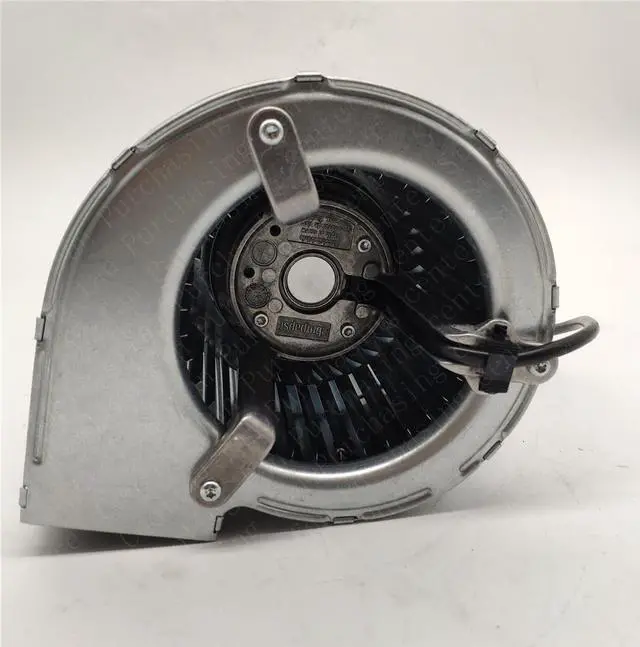

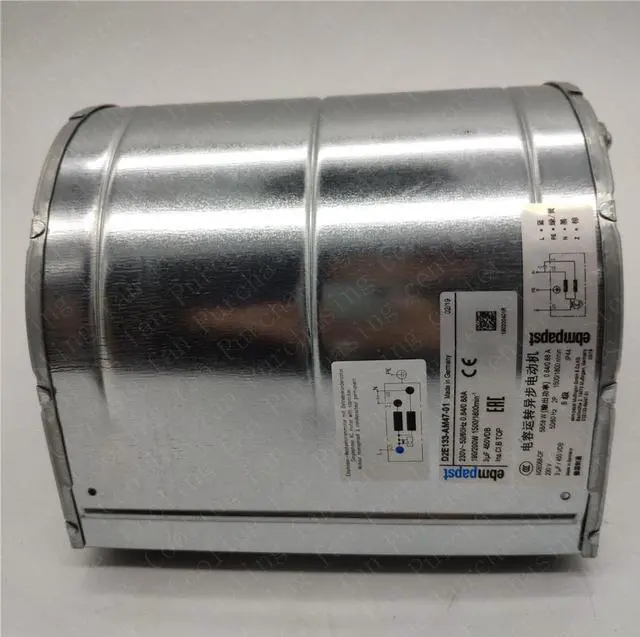

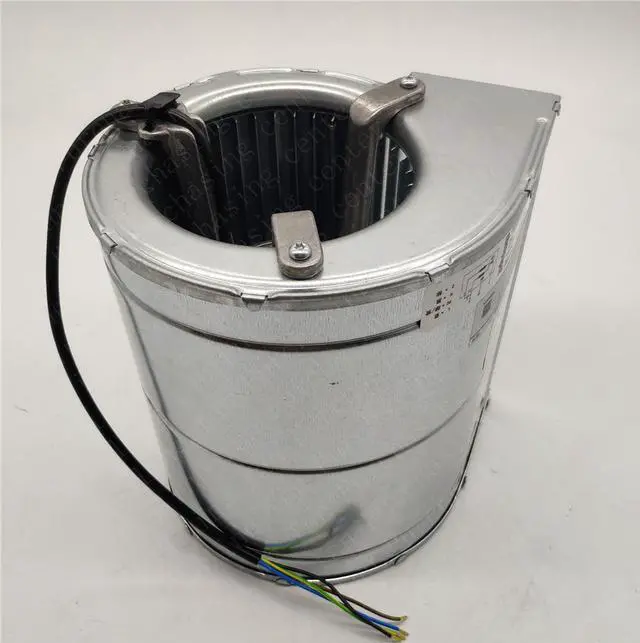

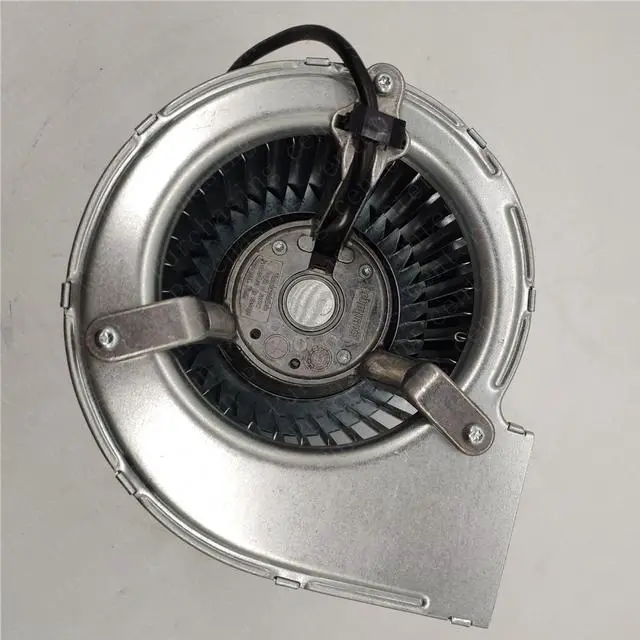

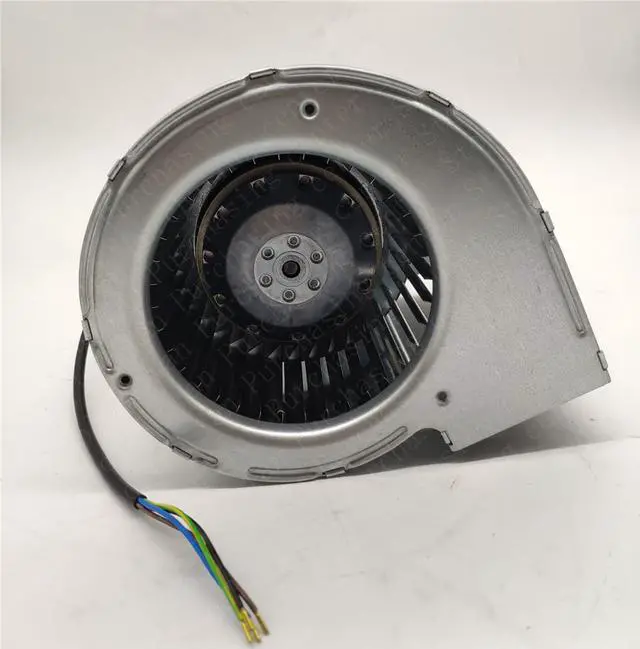

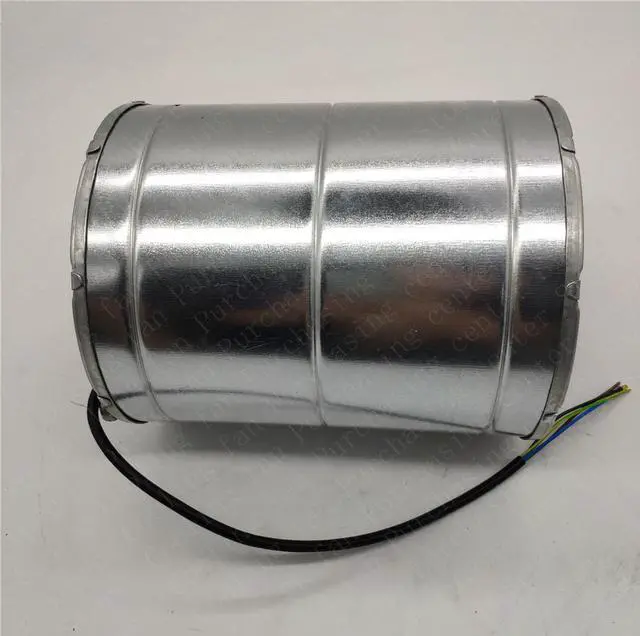

Detailed ImagesBlowerThe blower is also referred to as a centrifugal blower for venting air outwards by the kinetic energy generated by the impeller.How do they work?The blower is usually in the shape of a fixed waist drum with a fan blade (impeller) inside, and the impeller rotates in one direction and blows air or gas from one place to another.Features and advantages• Blower has multiple IP ratings, including IP68 blowers for use in harsh environments• Provides a wide range of fan speeds from a minimum of 780 rpm up to a maximum of 11500 rpm• Provide front and rear curved fan bladesuseFans are widely used in a variety of everyday appliances, such as:? Air conditioning? Vacuum cleaner? Leaf blower? Gas delivery or even for industrial building ventilation systemsAdvantages of the ebmpapst fanN1) Air flow up to 35,000m3 / h2) Sturdy steel plate3) Compact design of external rotor motor4) Forced electronic cooling5) Suitable for a variety of applications6) 100% speed control via analog or serial interface7) Simple start-up with perfectly matched components: open loop control, motor, fan8) Plug and playOur  service:Quality assurance is the premise: brand new original authentic, ebm-papst original factory custom.Price concessions are the basis: as an Priscilla-level authorized agent, we have a more affordable price for your reference.Enthusiasm is the attitude: every customer is a boon to us, we will be full of passion and hospitality.Good selection plan : the technician can provide you with a more perfect fan solution, avoiding the wrong selection of the fan, thus you will no longer worry about the selection of the fan.mpact design. The entire product line is available in both AC and GreenTech EC technology.Application field                      Medical                               Rail vehicle                                    Drive cooling                                     Hotel               Industrial cleaning                      Electronic product                   New energy vehicles             Supermarket
