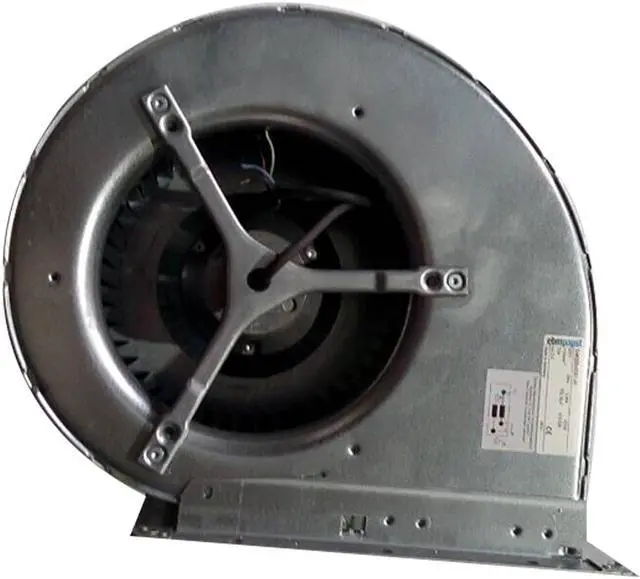

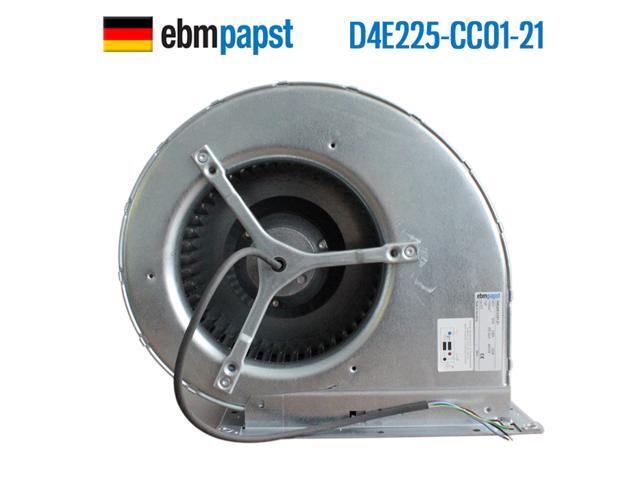

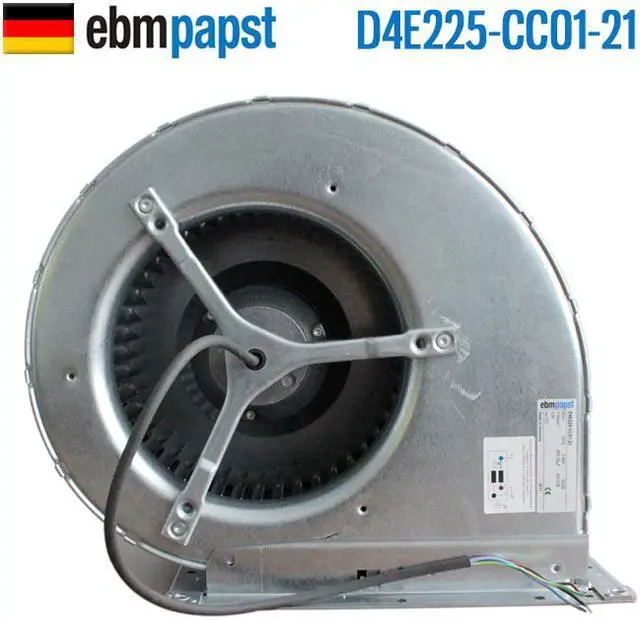

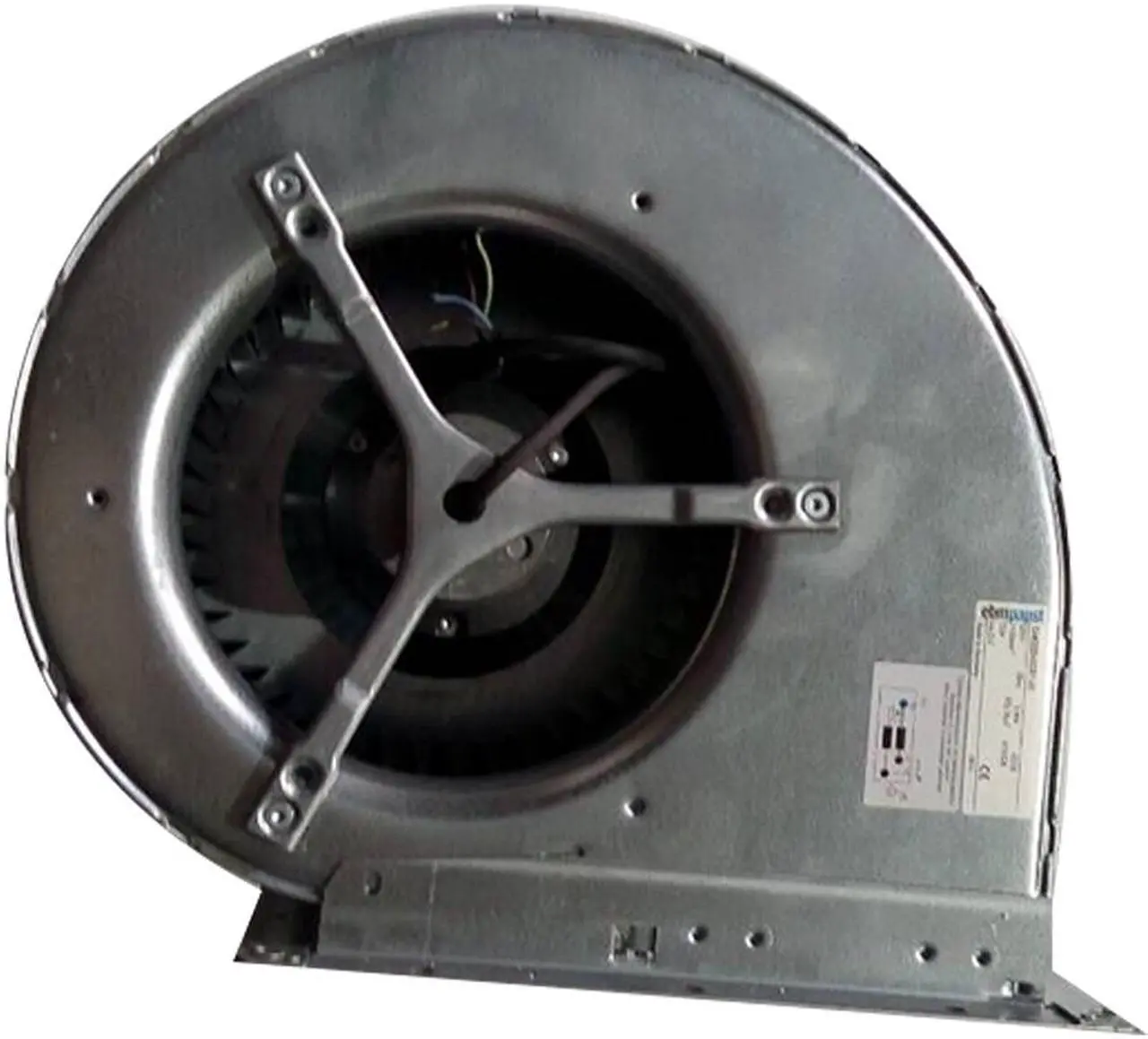

Original NEW new best coolerair cooling centrifugal blower D4E225-CC01-21 double inlet wind 220V

Phase 1~Nominal voltage / VAC 230Frequency / Hz 50 Method of obtainingdata mlValid for approval/standard -Speed (rpm) / min-1 1150Power consumption / W 650Current draw / A 2.9C apacitor / µF 25Capacitor voltage / VDB 400Capacitor standard S2 (CE) Min. back pressure / Pa 100Min. ambienttemperature / °C -25Max. ambienttemperature / °C 50Starting current / A 4.5D etailed ImagesEbm-papst AC double inlet centrifugal blowerThe ebm-papst AC double inlet centrifugal blower with positively curved inserts is the ideal solution for a wide range of applications. Both sides of the volute housing can be opened, which increases efficiency and reduces noise levels.

These ebm-papst centrifugal blowers are rugged and space-saving, meaning they are exceptionally versatile and easy to use.
Features and advantages: • Double wide fan with external rotor engine• The motor is IP44 compliant, the device is permanently sealed, maintenance free, Class B insulation•
Blade: forward curved multi-blade•
Main body: heavy duty, rivet-mounted galvanized steel• Ball bearing type, can be installed in any positionNoteIn order to prevent motor overload, these blowers must be operated at the lowest static pressure. AttachedPre-capacitor and Terminal StripAdvantages of the ebmpapst fanN1) Air flow up to 35, 000m3 / h2) Sturdy steel plate3) Compact design of external rotor motor4) Forced electronic cooling5) Suitable for a variety of applications6) 100% speed control via analog or serial interface7) Simple start-up with perfectly matched components: open loop control, motor, fan8)
Plug and playOur service: Quality
assurance is the premise: brand new original authentic, ebm-papst original factory custom.
Price concessions are the basis: as an Priscilla-level authorized agent, we have a more affordable price for your reference.
Enthusiasm is the attitude: every customer is a boon to us, we will be full of passion and hospitality.
Good selection plan: the technician can provide you with a more perfect fan solution, avoiding the wrong selection of the fan, thus you will no longer worry about the selection of the fan. mpact design. The entire product line is available in both AC and GreenTech EC technology. Application field Medical Rail vehicle Drive cooling Hotel Industrial cleaning Electronic product New energy vehicles SupermarketRegards for the Centrifugal/Axial fan, we have many differents models following for your reference, any your requirements, our group will try our best to serve you4606NR3G560-AG21-01 6318/2TDH4P-007 R2E220-AB08-12 6224NTD R2E220-AA40-23 S4E350-BP06-31 W1G180-AB31-10 4314 4650N-465 S3G350-AA58-01 4114NH5 R4E355-AL02-06 A2E200-AF02-01 G3G200-AL29-71 S4E420-AP02-30 W2S130-AA03-87 W2E142-BB01-01 8850N without CCC 9393020003 R2E180-CB28-01 R2S133-AE17-05 G3G250GN1701 R2E220-AA40-05 W2D300-CD02-01 G4E180-GS11-01 8850N (with CCC) 612N/2GHH-059 614N/2GHH 54478-2-4013 R4D450-AD12-06 R2E175-AO79-14 R4D355-AH11-09 ACi 4420 HH R6D500-AK03-01 A1185-4-73 4414F S4E330-AP18-36 A1183-4-73 K4D500-AQ11-06 R6D630-AT03-01 8312HL 414J G1G097-AA05-01 A2S130-AB03-11 63070-2-4013 A8038-7-73 M4Q045-CF01-01 R1G225-AF11-52 D4D225-CC01-02 W1G180-AA03-09 R4D560-AQ03-01 A2D170-AA04-02 W2D250-GA04-09 W4E315-CP18-30 R1G175-AB41-64 G2E160-AD01-43 D4E146-AA07-25 D2E146-AP47-86 4114NH3 W2G115-AG71-12 28075-2-4013 414F 4418H A2D250-AA26-51 R2E220-AA44-98 R2D250-AF10-12 R2E225-BD92-19 W2E143-AA09-01 W3G400-CC22-51 R4D500-AT03-01 R2E220-AA40-80 D2E146-AP47-79 G2D146-CE04-13 K3G310-AZ88-02 K3G280-AU11-C2 S2E300-AP02-31 5314/2TDHHP S6E450-AU04-01/C01 W4S200-HK04-01 R2E220-AB06-29 M4Q045-BD01-Y6/A08 S4E300-AS72-45 RER125-19/12N D4E225-FH01-06 W4D200-CA04-01 A2D210-AA02-10 R2E250-AV65-01 614R M4Q045-CA03-VH/A04 412H-107 A2S130-AA03-01 R1G133-AA65-02 R4D400-AD22-11 W1G208-BA73-52 R3G500-AQ33-01 D4E225-CC01-39 R2D
