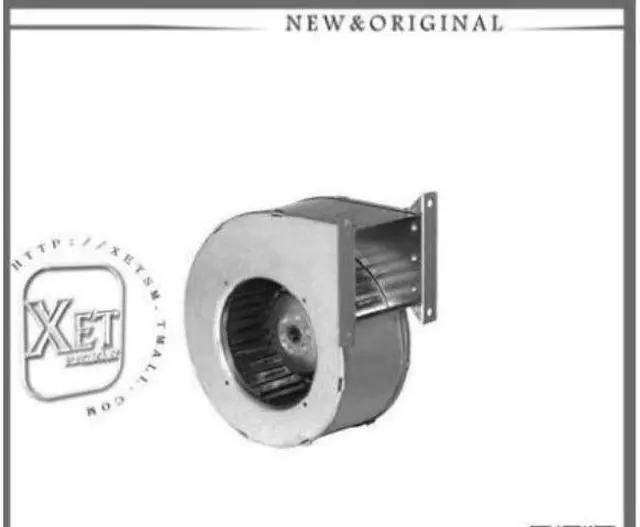

G2E120-AR38-01 Centrifugal Blower 120mm/230VAC/152CFM

Motor M2E068-BFPhase 1~ 1~Nominal voltage / VAC 230 230Frequency / Hz 50 60Method of obtainingdata fa faValid for approval/standard CE CESpeed (rpm) / min-1 2500 2600Power consumption / W 83 110Current draw / A 0.37 0.5Capacitor / µF 22Capacitor voltage / VDB 450 450Min. back pressure / Pa  0 0Min. ambienttemperature / °C -25 -25Max. ambienttemperature / °C 50 60Detailed ImagesSingle inlet and double inlet centrifugal fan IP 44Produced by emb-papst, this centrifugal fan is reliable and efficient – especially suitable for low maintenance and high performance. The rugged housing has a sturdy flange for easy installation.Features and advantages:• Adjust the speed of these centrifugal fans with external rotors by using a variable speed controller to reduce the supply voltage.• The impeller is crimped directly into the rotor.• For single entry models, the housing is made of unpainted injection molded aluminum.• For dual entry models, the housing is made of galvanized steel.• Variable speed controllers are also available.• Thermal protection through thermal contacts and windings.• The following centrifugal fans require motor running capacitors: 4986601 (1uF), 2183208, 2183191, and 4988617 (2uF), 4988409 (6uF)application:• Industry• Maintenance• ForceAdvantages of the ebmpapst fan1) Air flow up to 35,000m3 / h2) Sturdy steel plate3) Compact design of external rotor motor4) Forced electronic cooling5) Suitable for a variety of applications6) 100% speed control via analog or serial interface7) Simple start-up with perfectly matched components: open loop control, motor, fan8) Plug and playOur  service:Quality assurance is the premise: brand new original authentic, ebm-papst original factory custom.Price concessions are the basis: as an Priscilla-level authorized agent, we have a more affordable price for your reference.Enthusiasm is the attitude: every customer is a boon to us, we will be full of passion and hospitality.Good selection plan : the technician can provide you with a more perfect fan solution, avoiding the wrong selection of the fan, thus you will no longer worry about the selection of the fan.mpact design. The entire product line is available in both AC and GreenTech EC technology.d ventilation system for electrical equipment and rotating machinery.Application field                      Medical                               Rail vehicle                                    Drive cooling                                     Hotel               Industrial cleaning                      Electronic product                   New energy vehicles             SupermarketRegards for the Centrifugal/Axial  fan,we have many differents models following for your reference,any  your requirements ,our group will try our best to serve you4606NR3G560-AG21-01
