EKWB EK-Vardar X3M 120ER PWM 120mm Fan, 500-2200 RPM, Digital RGB, White

The EK-Vardar X3M 120ER D-RGB is a high-static pressure computer cooling fan with added aesthetical interchangeable rubber dampers. Developed in-house and first introduced in 2014, the EK-Vardar fan is now also available as the X3M 120ER model with addressable D-RGB LEDs. The rubber details on the corners of the fan are also there to reduce vibration and noise.

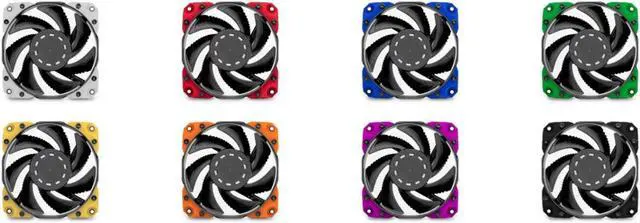

EK-Vardar X3M rubber dampers can be purchased separately in various color options to match your build. The available color options are: red, blue, yellow, orange, green, and purple.

The X3M fans are set to push mode out of the box, but the dampers can be easily detached by using a 3mm Allen key and flipped, thus setting the fan in a pull setup.

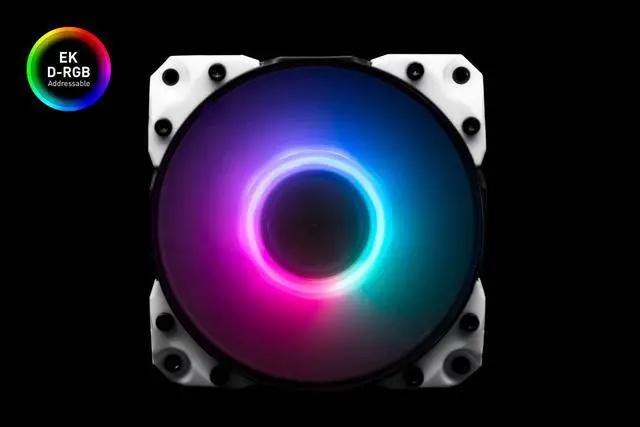

EK-Vardar RGB connectivity

The addressable D-RGB LEDs use standard 3-pin 5V D-RGB connectors. Meaning it can be used with any standard 3-pin 5V D-RGB controller, EK-Connect, or any of popular RGB sync technologies from all major motherboard manufacturers.

Enclosed in the package:

- EK-Vardar X3M 120ER D-RGB - White
- UNC 6-32 (l=10mm) screw set for radiators with optional nuts for case mounting
- Allen Key 3mm

Performance characteristics:

- Max air flow: 67 CFM = 114 m³/h
- Static pressure: 2.75 mm H2O = 27 Pa
- Noise level: 34.2 dBA

Mechanical and electrical specifications:

- Maximum speed: 2200 rpm (+/- 10%)
- Rated Voltage: 12V DC
- Power Draw: ~2.16W (0.18A)
- LED Power Draw: ~0.85W (0.17A)
- PWM Duty Cycle: 25-100% - ER (Extended Range)
- Connector: 4-pin PWM header
- Bearing Type: Dual-Ball bearing
- Bearing durability: 50.000 hrs @ 40°C (MTBF)
- Dimensions: 120 x 120 x 27.5 mm
- Black cable length: 50cm
- RGB cable length: 50cm
- RGB connector classic 3-pin (+5V, D, Empty, G)
