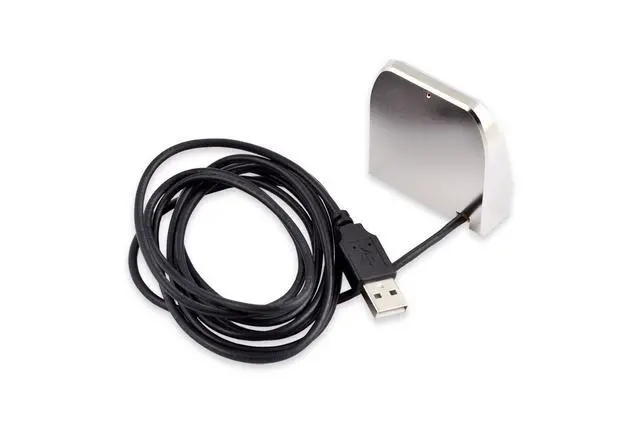

Aquacomputer VISION Touch Table Top Unit, Matte Nickel Plating, IR Receiver and Ambient Temperature Sensor (53238)

High resolution OLED graphic display with USB interface for data visualization.

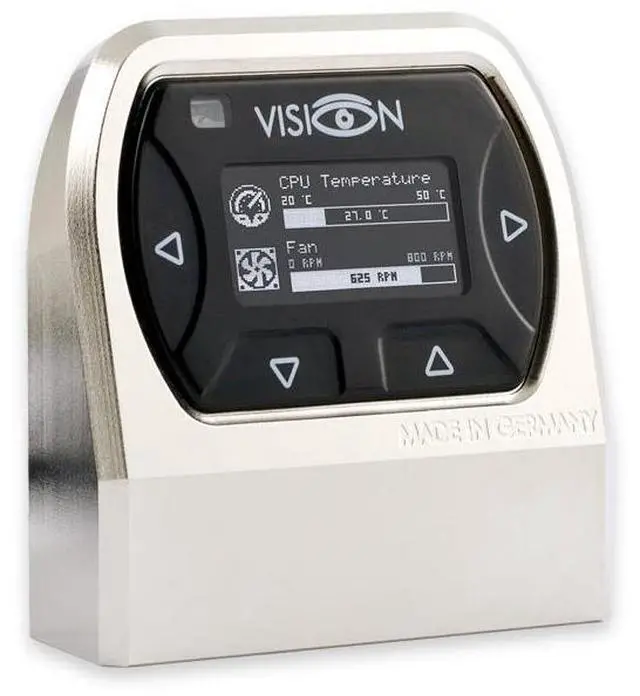

Graphic display
The VISION controller is equipped with a 128x64 pixels OLED graphic display. The OLED technology guarantees exceptional contrast ratio and wide viewing angle of the display.

Individually configurable display contents
Up to twelve display pages can be configured to show a variety of PC hardware data. Design layouts include single value screens, lists, bar graphs and charts. All texts and graphical logos may be modified to accommodate personal preferences.
A note pad function can be used to display short memos.

Four programmable keys
The four device keys can be used to either control the VISION module or to send USB keyboard commands to the PC. For each display page, each key function can be assigned individually.

Connector for a temperature sensor
The VISION controller features a temperature sensor connector. If a compatible sensor is connected, temperature is constantly monitored and can be used for display pages. An alarm function can trigger a configurable action if an adjustable threshold is exceeded.

Connector for flow sensor or alternatively alarm output
The VISION controller features one connector that can either be used to connect an Aqua Computer flow sensor or as an alarm output for emergency shutdown of the PC. For both options, additional accessories not included in delivery are required.

aquabus interface
The aquabus interface can be used to connect the VISION controller to an aquaero 5 or 6. Both devices can then exchange various sensor data via aquabus connection.

Dimensions excluding cable

• ca. 53 x 57 x 18 mm
