    Gentle Typhoon Performance Radiator Fan - 1150rpm, 37cfm - Black Edition (D1225C12B5AP-71)

    • High Performance: The GentleTyphoon achieves high airflow volume and low noise with special 9-blade impeller, enabling silent cooling of the latest devices which run very hot
    • Silent Operation: The GentleTyphoon has a different type of tone
    • The fan propeller is designed to reduce the disturbing frequency fan noise to human ears
    • Innovative Technology: The unique designed motor and motor support mechanism of the GentleTyphoon uses custom double vibration reduction structure to greatly reduce vibration
    • In the box: 1x Gentle Typhoon Performance Radiator Fan - 1150rpm, 37cfm - Black Edition
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

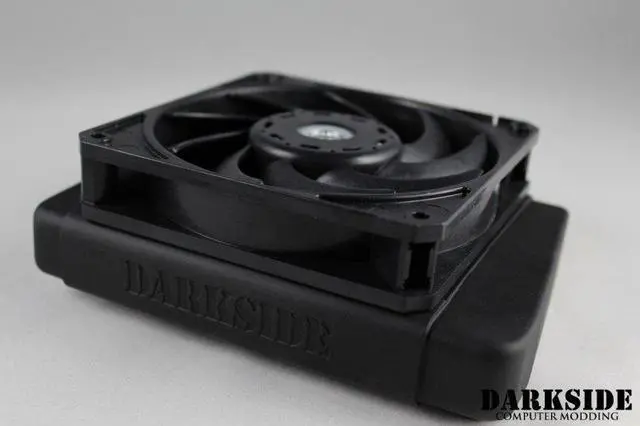

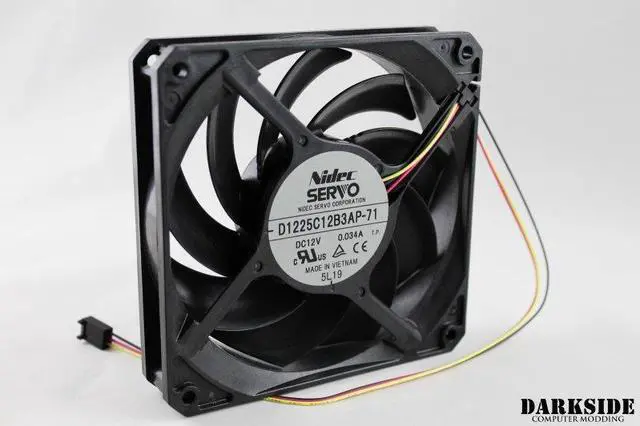

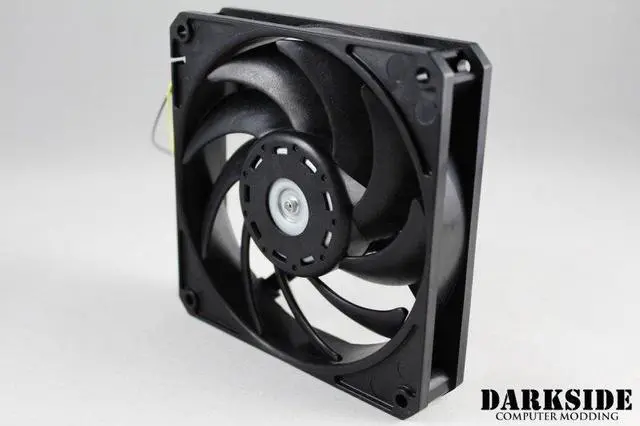

    The Gentle Typhoon Black Edition AP-71 is an all-black 120 mm radiator fan built by Nidec Servo and boxed for DarkSide. It spins at 1,150 rpm and moves 37.1 CFM, and its 9-blade impeller is shaped for high airflow with low noise, which makes it a good match for water cooling radiators.

    Properties

    • Type: 120 mm radiator fan
    • Speed: 1,150 rpm
    • Airflow: 37.1 CFM
    • Noise: 18 dB (25 cm from the fan, free air)
    • Voltage: 12 V DC, runs from 5 to 12 V
    • Connector: 3-pin fan
    • Color: Black
    • Pieces in the pack: 1

    High airflow, low noise

    The Gentle Typhoon reaches a high airflow volume with low noise thanks to its special 9-blade impeller. That lets it cool hot running parts quietly, and it works well on radiators.

    A gentler tone

    The blades are designed to reduce the fan noise frequencies that the human ear finds most disturbing, so the Gentle Typhoon has a different, less intrusive tone than many fans.

    Low vibration, long life

    The motor and its support use a double vibration reduction structure that greatly reduces vibration passed on to the radiator or the case. The fan runs on a ball bearing, rated for an expected life of 100,000 hours at 35 °C or 55,000 hours at 60 °C.

    Speed control

    The fan runs from 5 V to 12 V, so you can slow it down with a voltage fan controller or a 3-pin motherboard header in DC mode. This listing is the AP-71 at 1,150 rpm, the quieter of the two versions.

    Technical data

    • Model: Gentle Typhoon Black Edition AP-71
    • Size: 120 mm
    • Speed: 1,150 rpm
    • Airflow: 37.1 CFM
    • Noise: 18 dB (25 cm from the fan, free air)
    • Rated voltage: 12 V DC
    • Operating voltage range: 5 to 12 V
    • Current: 0.035 A (0.16 A peak)
    • Connector: 3-pin fan
    • Bearing: Ball bearing
    • Expected life: 100,000 h at 35 °C or 55,000 h at 60 °C
    • Impeller: 9 blades
    • Dimensions: 119 x 119 x 25 mm (4.68 x 4.68 x 0.98 in)
    • Maker: Nidec Servo
    • Color: Black, full black

    Notes

    • ModMyMods carries the Gentle Typhoon Black Edition in AP-71 (1,150 rpm) and AP-72 (1,450 rpm). This listing is the AP-71.

    In the box

    • 1x Gentle Typhoon Performance Radiator Fan - 1150rpm, 37cfm - Black Edition
