Alphacool Eiszapfen Laser Fitting with 4pin Molex
- Laser fitting for planning the route of tubing
- Thread length: 5.5mm
- Cable length: 50cm
- Fitting Material: Brass
- Dimensions (dxh): 17 x 24mm
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

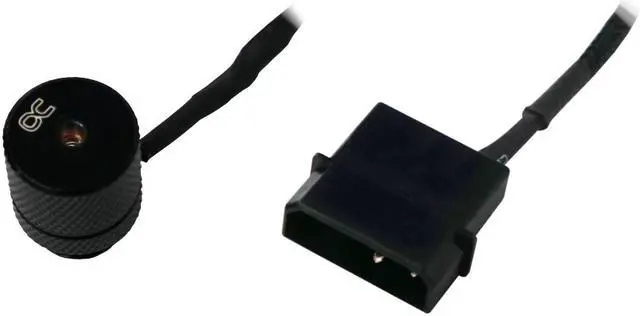

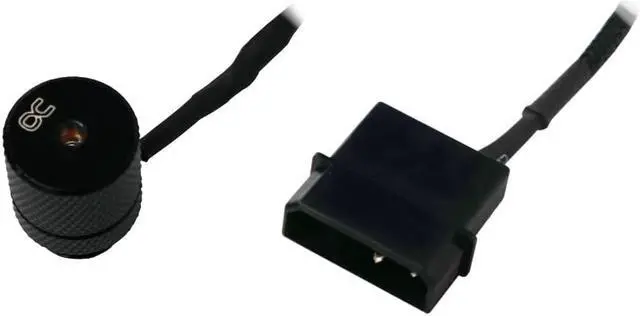

The Alphacool Eiszapfen Laser Fitting With 4pin Molex is a brass laser fitting with a G1/4 thread, one fitting per pack. It allows you to align your HardTubes for when you need to drill holes for bulkhead fittings. Power comes from the power supply over a 4-pin Molex connector.
Properties
- Thread: G1/4, 5.5 mm long
- Power: 4-pin Molex, 50 cm cable
- Laser class: 1M
- Material: Brass
- Pieces in the pack: 1
What it does

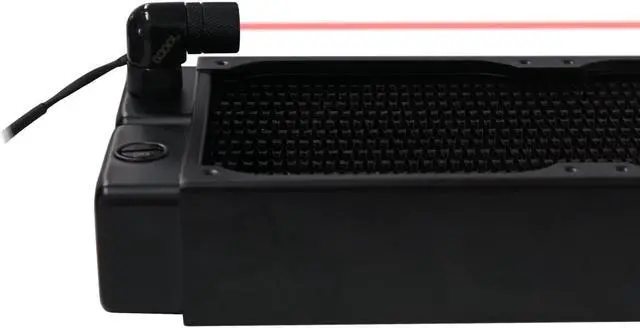

Alphacool says you achieve maximum precision with the laser fitting in your water-cooled PC. Thanks to the G1/4 thread it fits all common water cooling components, or all common openings, as Alphacool's page puts it. The laser then aligns you to the ideal position for drilling, and Alphacool also names it for measuring hard tubes perfectly.
What a run needs

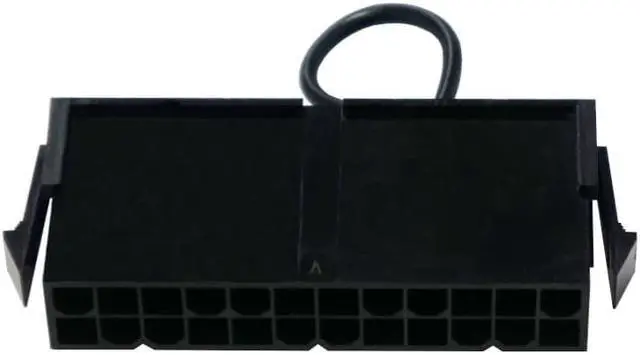

Connect the fitting directly to the power supply via the Molex plug. To start the power supply without a PC, Alphacool includes a 24-pin ATX jumper plug. The drilled holes take a fitting.
Technical details
- Dimensions (DxH): 17 x 24 mm
- Thread Length: 5.5 mm
- Cable Length: 50 cm
- Net Weight: 45 g
- Fitting Material: Brass
- Laser Class: 1M according to DIN EN 60825-1

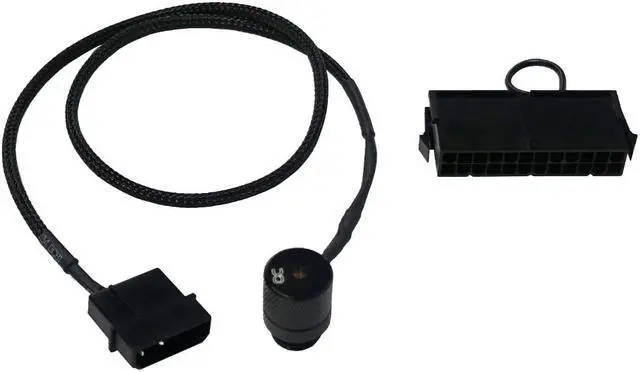

In the box
- 1x Alphacool Eiszapfen Laser Fitting With 4pin Molex
- ATX jumper plug
