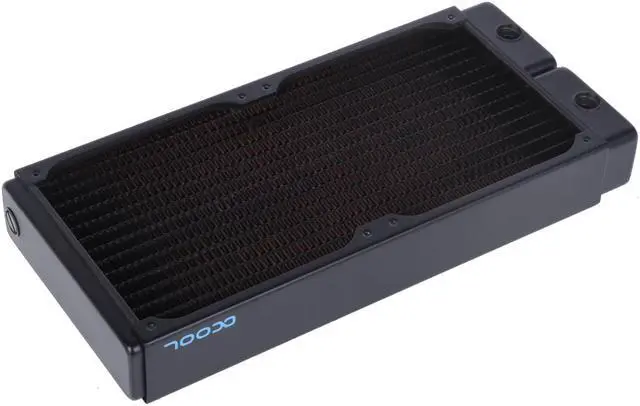

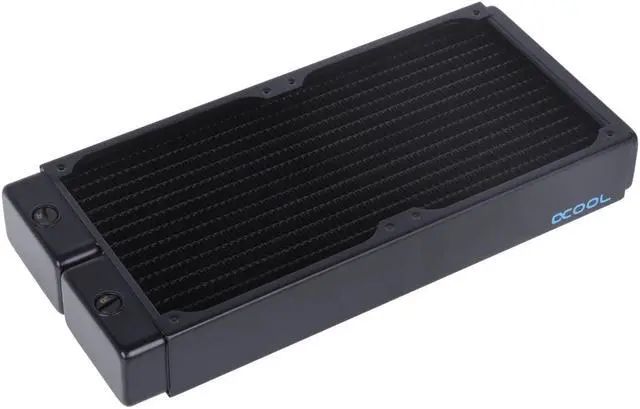

Alphacool NexXxoS XT45 Full Copper 280mm Radiator V.2 (14286)

NexXxos V.2 radiators will take you to the next level!

Increase the performance of your system with the new Alphacool NexXxos V.2 radiators.

Alphacool also has been able to combine the best quality with the most beautiful design for the NexXxos V.2 radiators. The end chambers have been manufactured in a noble, modern design. In addition, the NexXxos XT45 V.2 radiators now also have a G1/4“; connection at the opposite end chamber than the inlet/outlet for easy bleeding of the loop. Mount your Alphacool NexXxos radiator in any position, the possibilities are unlimited.

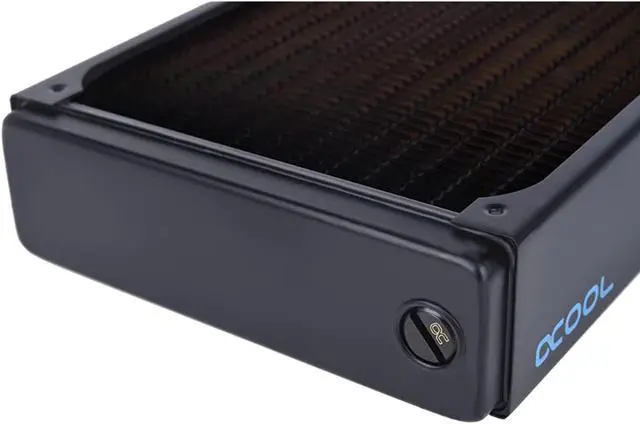

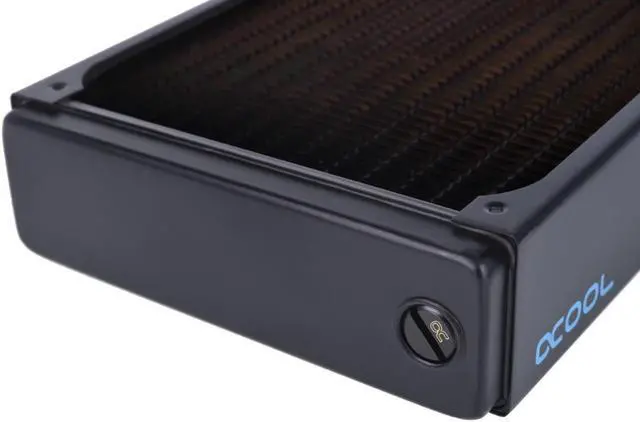

Countersunk screw plugs - anything but ordinary

For the first time Alphacool has created countersunk the screw plugs for the NexXxoS range. This unique, patented design allows you to stay flexible with your Alphacool NexXxos V.2 Radiator. Mount your radiator the way you want it. Thanks to the differently positioned inlets and outlets, you remain individual and unique.

Solid copper - the best performance at the highest level

As always with Alphacool, the new Alphacool NexXxos series is also made of solid copper. Thus, the Alphacool NexXxos radiators offer you the highest thermal conductivity for the best performance. Rely on the No. 1 in materials.

ATTENTION: The NexXxoS V.2 radiators are only compatible with connections with a maximum thread length of 5 mm.

Technical Details

WxDxH 316,5 x 143 x 45,5 mm
Net Weight 1032g
Maximum Working Temperature 180 °C
Material (fins/channels/outer shell): Cooper
Material (outer shell)
Fins per Inch 12

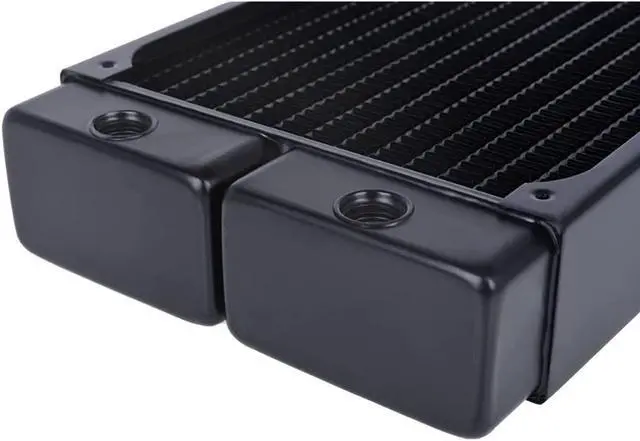

Connections 5x G1/4“

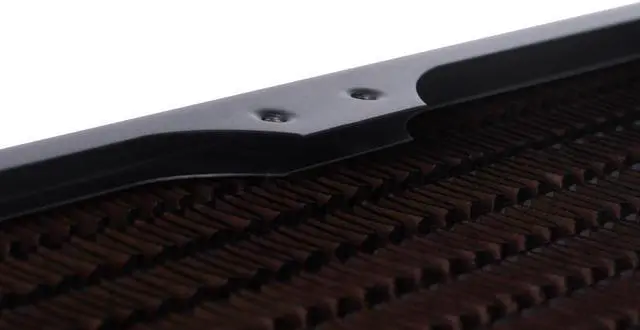

Screw Size M3
Fan size 140 mm
Fans 2 per side, 4 total
Lüftergewinde M3
Pressure Tested 1,5 Bar
Certificates CE, FC, ROHS
Scope of Delivery

Alphacool NexXxoS XT45 Full Copper 280mm radiator V.2

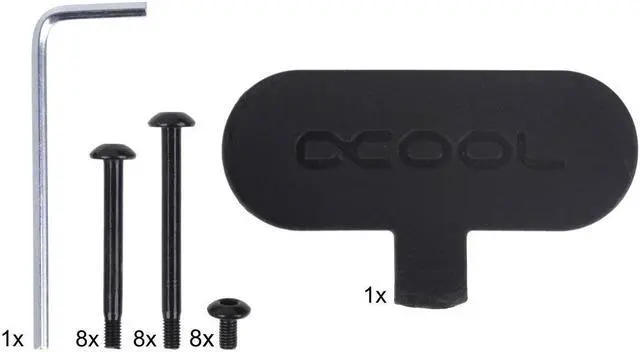

Mounting material

Model: 14286
