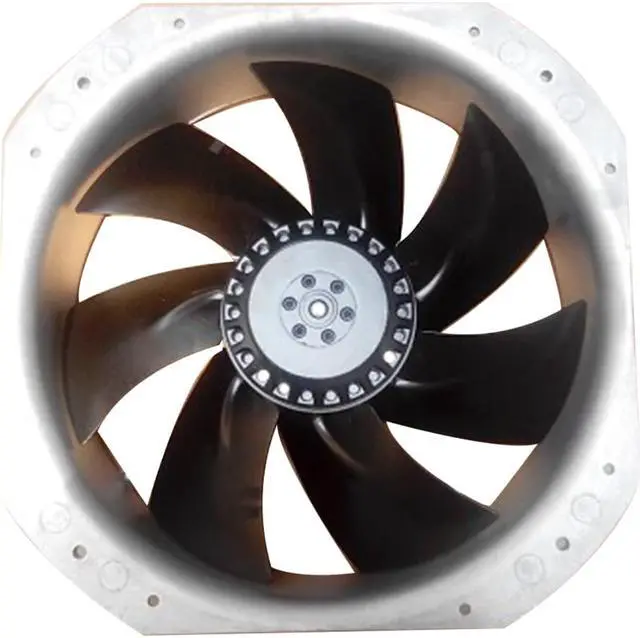

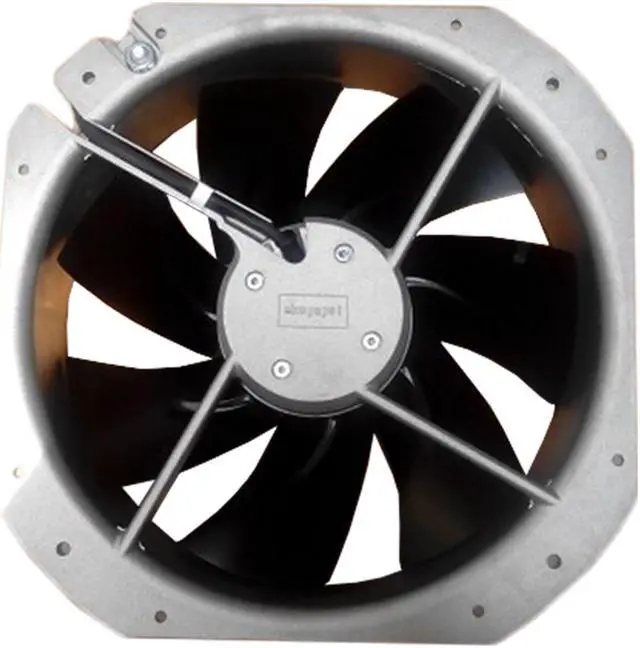

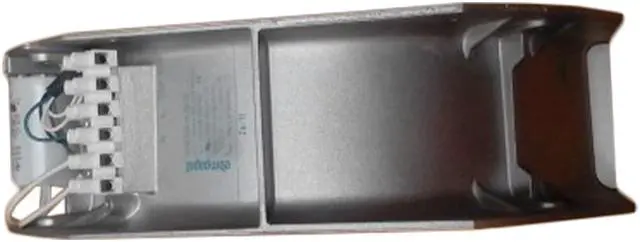

ebmpapst Fan W2E250-HL06-05 230V 127W 0.56A 280X280X80mm Frequency Converter Axial Fans
- Condition: 100% new and good quality. Performance:Low pressure and high temperature resistance fan;
- Brand:ebmpapst;Type:axial fan;Model:W2E250-HL06-05 ; FAN Size:250 mm;Motor size:68;Material: metal;Bearing : ball bearing;
- Weight:2.9 kg;Voltage : 230VDC;Capacitor voltage / VDB:400;Current draw / A:0.56~0.79A;Power consumption / W:127~180W;Frequency / Hz:50~60Hz;
- Number of blades:7;Speed:2550~2700 1/min (r/mim);Air volume 1865m3/h;Max. back pressure / Pa:100;Capacitor / µF:4;Insulation class:"F";Degree of protection:IP44;Min. ambient temperature / °C~Max. ambient temperature / °C:-25~60°C;
- We are professional Fan supplier,All products are New original genuine. Please rest assured to purchase, About the product parameters , please check and understand them carefully ,if not please feel free to contact us, we are pleased with serve for you.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product parameter:
Brand: ebmpapst;
Type: axial fan;
Model: W2E250-HL06-05;
FAN Size: 250 mm;
Motor size: 68;
Material: metal;
Bearing: ball bearing;
Weight: 2.9 kg;
Voltage: 230VDC;
Capacitor voltage / VDB: 400;
Current draw / A: 0.56 ~ 0.79A
;
Power consumption / W: 127~180W; Frequency / Hz: 50~60Hz;
Number of blades: 7;
Speed: 2550~2700 1/min (r/mim);
Air volume 1865m3/h;
Max. back pressure /
Pa: 100; Capacitor / µF: 4;
Insulation class: "F";
Degree of protection: IP44;
Min. ambient temperature / °C~Max. ambient temperature / °C: -25~60°C;
Package:
Fan*1
Brand: ebmpapst;
Type: axial fan;
Model: W2E250-HL06-05;
FAN Size: 250 mm;
Motor size: 68;
Material: metal;
Bearing: ball bearing;
Weight: 2.9 kg;
Voltage: 230VDC;
Capacitor voltage / VDB: 400;
Current draw / A: 0.56 ~ 0.79A
;
Power consumption / W: 127~180W; Frequency / Hz: 50~60Hz;
Number of blades: 7;
Speed: 2550~2700 1/min (r/mim);
Air volume 1865m3/h;
Max. back pressure /
Pa: 100; Capacitor / µF: 4;
Insulation class: "F";
Degree of protection: IP44;
Min. ambient temperature / °C~Max. ambient temperature / °C: -25~60°C;
Package:
Fan*1
