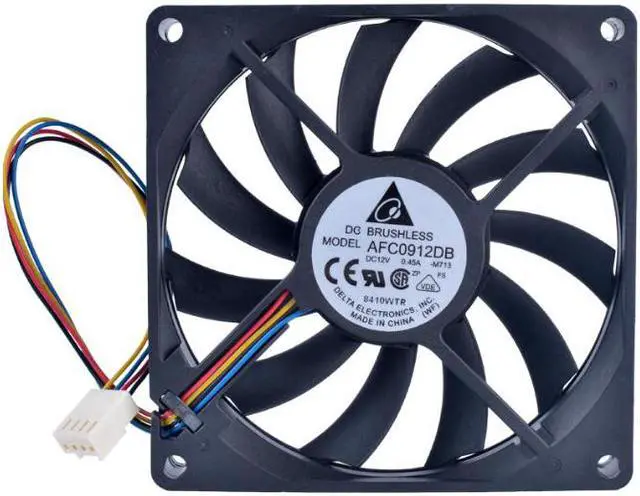

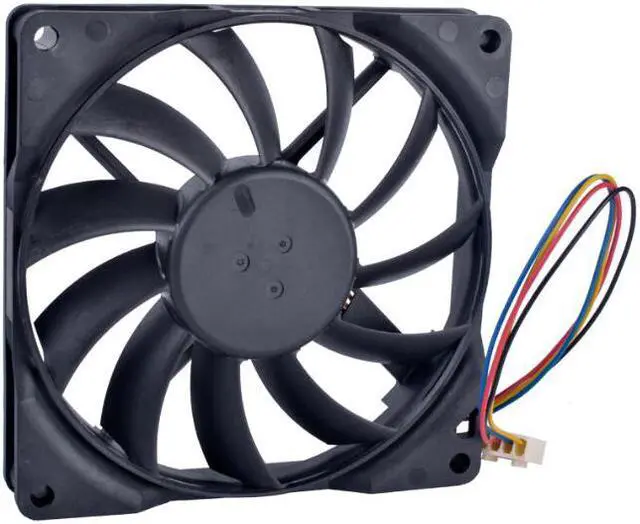

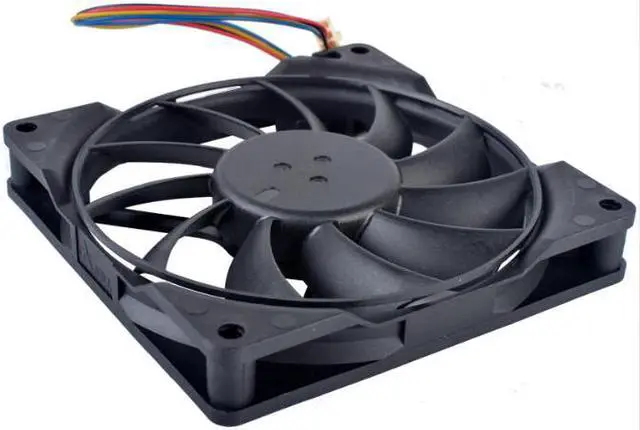

DELTA AFC0912DB 90mm fan 9015 90x90x15mm 12V 0.45A Double ball bearing 4 wire 4pin PWM computer CPU cooler thin cooling fan
+
+
Overview
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Brand: Taiwan DELTA.
Producer: Delta Electronics Public Co., Ltd.
Model number: AFC0912DB
Size: 92 x 92 x 15mm.
(90MM 9015) Rated voltage: DC12V.
Voltage range: DC 7.0 to 13.8V.
Motor power: 0.45 a (nominal current) temperature sensing.
Rated revolution: 3700rpm.
Maximum air volume: 1.11 m³ 37.61
CFM/min Noise indicator: 37.5 dB (A)
Temperature range: -30... + 75 ° c.
Bearing structure: no maintenance double ball bearing.
Fan frame: injection molding, PBT+ 30% glass fiber +VO flame retardant.
Wind blade: injection molding, PBT+ 30% glass fiber +VO flame retardant.
Fan rotation: the direction of the fan blade is counterclockwise.
Power supply range: plus or minus 15% of rated power supply.
Insulation resistance: greater than 500 megohm.
Working life: 100, 000 hours when the ambient temperature is 25.
Producer: Delta Electronics Public Co., Ltd.
Model number: AFC0912DB
Size: 92 x 92 x 15mm.
(90MM 9015) Rated voltage: DC12V.
Voltage range: DC 7.0 to 13.8V.
Motor power: 0.45 a (nominal current) temperature sensing.
Rated revolution: 3700rpm.
Maximum air volume: 1.11 m³ 37.61
CFM/min Noise indicator: 37.5 dB (A)
Temperature range: -30... + 75 ° c.
Bearing structure: no maintenance double ball bearing.
Fan frame: injection molding, PBT+ 30% glass fiber +VO flame retardant.
Wind blade: injection molding, PBT+ 30% glass fiber +VO flame retardant.
Fan rotation: the direction of the fan blade is counterclockwise.
Power supply range: plus or minus 15% of rated power supply.
Insulation resistance: greater than 500 megohm.
Working life: 100, 000 hours when the ambient temperature is 25.
