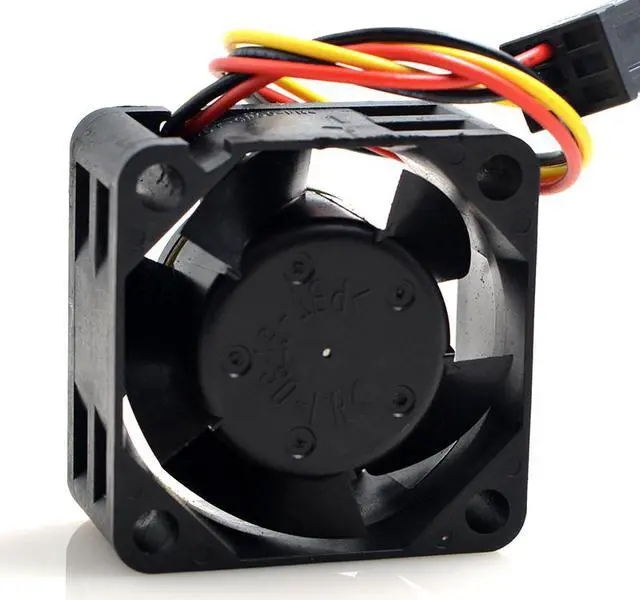

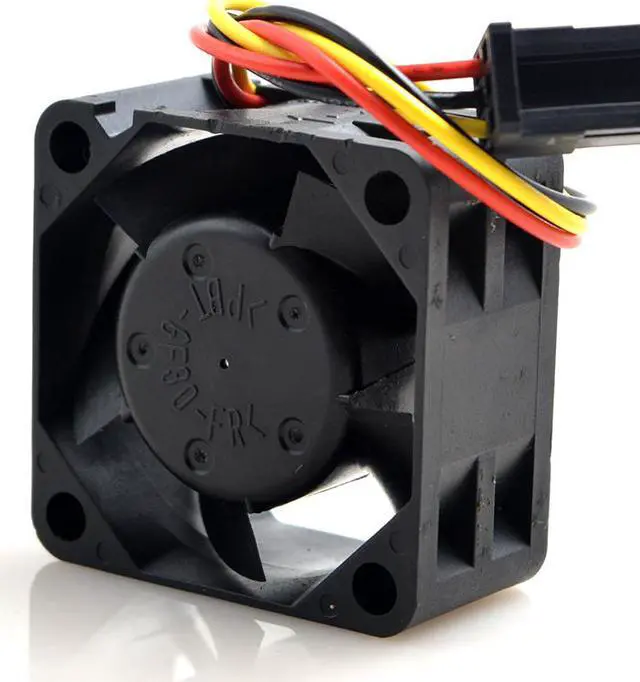

1608KL-05W-B39 24V 0.07/0.08A 4CM 3Wire FANUC special 4020 original NMB Cooling fan

Producer: Melbourne
NMB Model: 1608KL-05W-B39

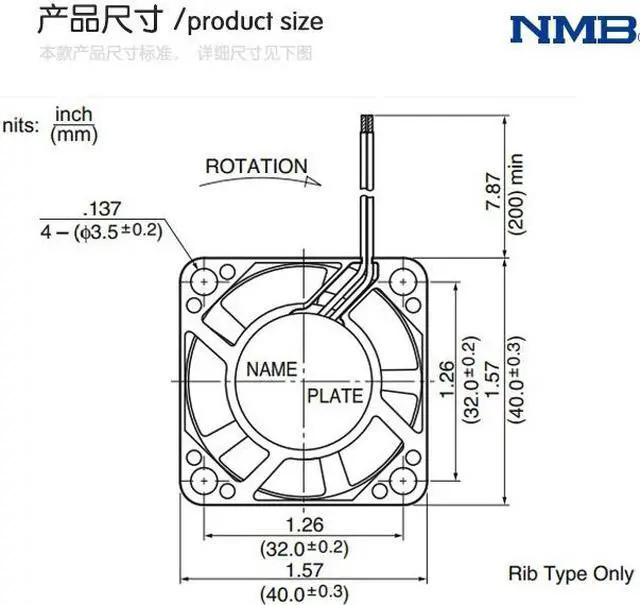

Size: 40X40X20MM
Voltage: DC24V
Bearing: High
Precision Double Bearing Brand: Japan NMB-MAT (Minebea)
Model: 1608KL-05W-B39
Size: 40*40*20MM
Voltage: 24V
Current: 0.08A
Power: 1.92W
Speed: 6500
RPM Air volume: 7.4 CFM 0.21 cubic meters per minute
Wind pressure: 42.2 pa
Noise: 25.5DBA
Ambient temperature: - 20-75 degrees
Service life: 50000 hours

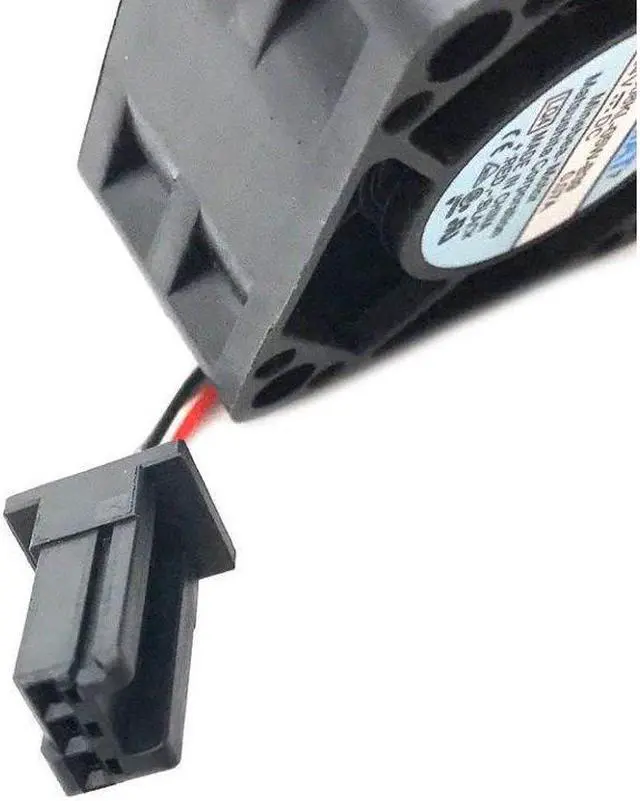

Net weight: 25G Fanuc Special fan with original connector
Features: Overwhelming long working life, average failure-free time of 180, 000 hours, high-precision and high-quality components without compromise.
Service life: 18.0000 hours (25 C, 45-85% relative humidity)
Fan frame: injection molding once, PBT + 30% glass fiber + VO class flame retardant;
Wind blade: one-time injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation direction: from the direction of the fan blade for counterclockwise;
Operating temperature: - 10 degrees Celsius to + 70 degrees Celsius;
Storage temperature: - 40 degrees Celsius to + 70 degrees Celsius;
Bearing: high precision ball bearing;
Power supply range: positive or negative 15% of rated power supply;
Insulation resistance: greater than 500 megaohms;
Voltage withstanding: leakage current 0.5 mA 500V/1 minute;
