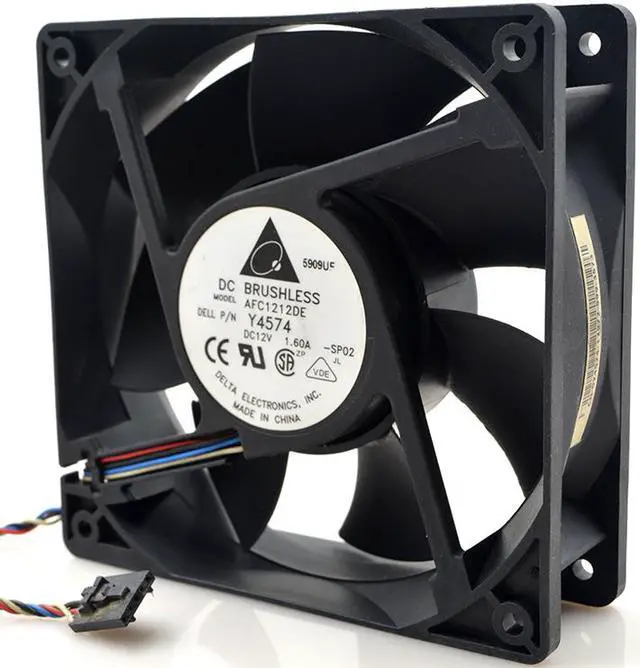

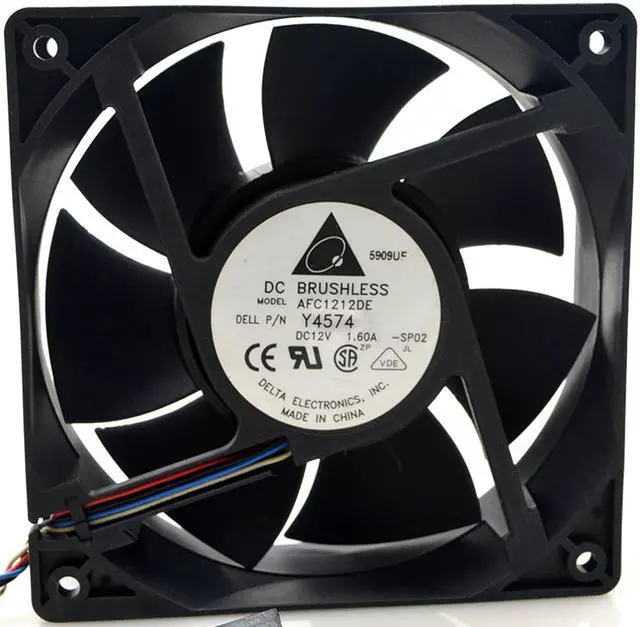

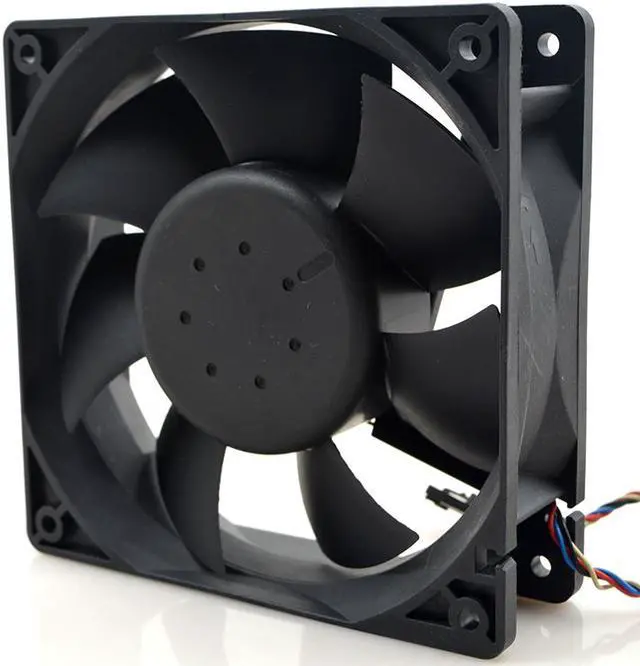

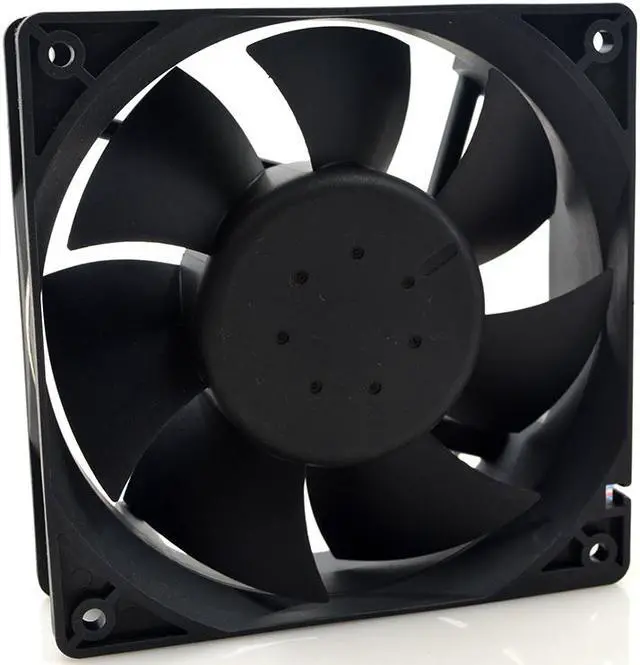

Original Delta AFC1212DE -SP02 12V 1.60A 12cm 12038 Ant S3-S5 Cooling Fan Y4574
- 4000-4499 RPM >80 CFM
- 2 Ball
- 40 - 45 dBA
Overview
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: AFC1212DE
Dimensions: 120 x 120 x 38mm
Leads: 4 lines (support PWM) 4-pin
Voltage: DC 12V
Current: 1.60A
Speed: 4000RPM
Air volume: 154.5CFM
Noise: 45.4 dB-A
Bearing: high precision double ball bearing
Operating temperature: - 10 degrees Celsius to 70 degrees Celsius
Storage temperature: - 40 degrees Celsius to 70 degrees Celsius
Power supply range: rated power positive and negative 15%
Insulation resistance: greater than 500
Euro Withstand voltage: sink leakage current 0.5 mA500V / 1 min.
Working life: 80000 hours when the ambient temperature is 25 degrees
Features: maintenance free double ball bearing, long service life, adequate cooling air volume and wind pressure.
Dimensions: 120 x 120 x 38mm
Leads: 4 lines (support PWM) 4-pin
Voltage: DC 12V
Current: 1.60A
Speed: 4000RPM
Air volume: 154.5CFM
Noise: 45.4 dB-A
Bearing: high precision double ball bearing
Operating temperature: - 10 degrees Celsius to 70 degrees Celsius
Storage temperature: - 40 degrees Celsius to 70 degrees Celsius
Power supply range: rated power positive and negative 15%
Insulation resistance: greater than 500
Euro Withstand voltage: sink leakage current 0.5 mA500V / 1 min.
Working life: 80000 hours when the ambient temperature is 25 degrees
Features: maintenance free double ball bearing, long service life, adequate cooling air volume and wind pressure.
