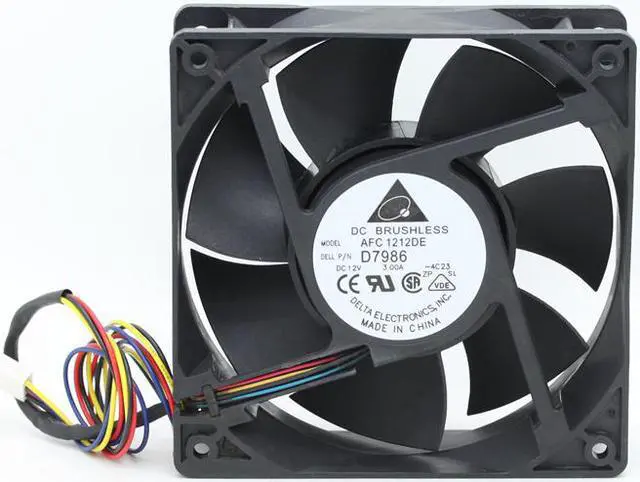

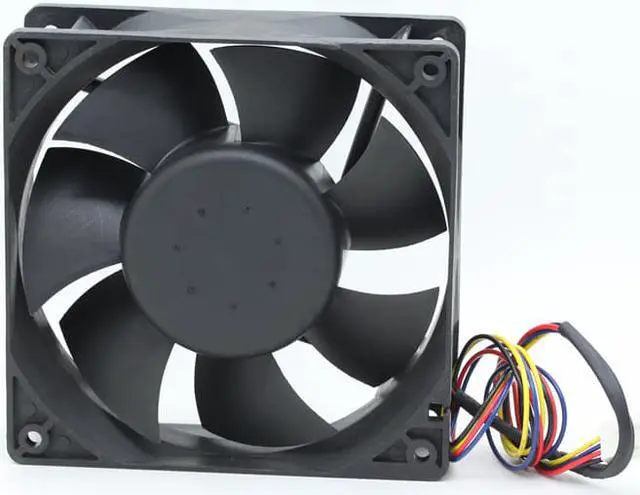

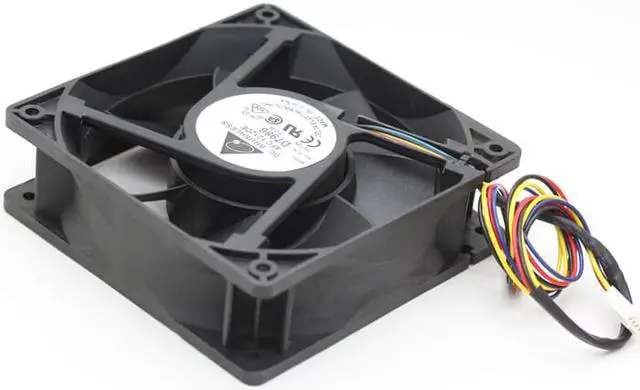

Original delta AFC1212DE -PWM DC12V 3.0A 120MM 12038 case violent cooling fan temperature control
- 4500-4999 RPM >80 CFM
- 2 Ball
- > 50 dBA
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Brand: Delta
DELTA Model: AFC1212DE
Dimension: 120 x 120 x 38 mm
Voltage: DC12V
Current: 3A
Air volume: 200.30
CFM Noise: 75DB
Speed: 4500 +10%

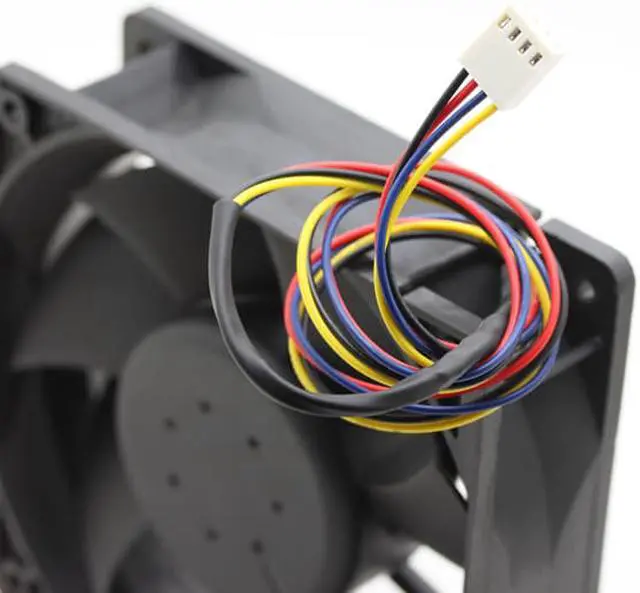

RPM Wiring: Four-wire red positive black negative blue speed measurement yellow PWM speed regulation
Connector: Main 4P (can be replaced as required)
Bearing type: double ball bearing
Service life: 50000 hours (25 C, 45-85% relative humidity) Ultra durable metal cavity + double ball bearing, suitable for extreme heat dissipation or server use. The fan is a special fan, very violent, excessive air volume, relatively large noise; the fan is too violent, in order to use safely, it is recommended to use with protective mesh.
DELTA Model: AFC1212DE
Dimension: 120 x 120 x 38 mm
Voltage: DC12V
Current: 3A
Air volume: 200.30
CFM Noise: 75DB
Speed: 4500 +10%
RPM Wiring: Four-wire red positive black negative blue speed measurement yellow PWM speed regulation
Connector: Main 4P (can be replaced as required)
Bearing type: double ball bearing
Service life: 50000 hours (25 C, 45-85% relative humidity) Ultra durable metal cavity + double ball bearing, suitable for extreme heat dissipation or server use. The fan is a special fan, very violent, excessive air volume, relatively large noise; the fan is too violent, in order to use safely, it is recommended to use with protective mesh.
