Industrial Equipment Ventilation

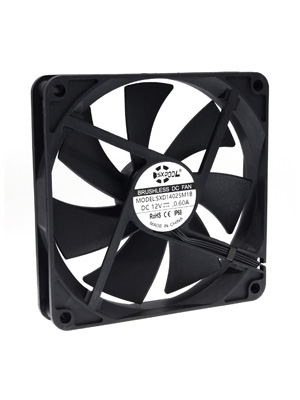

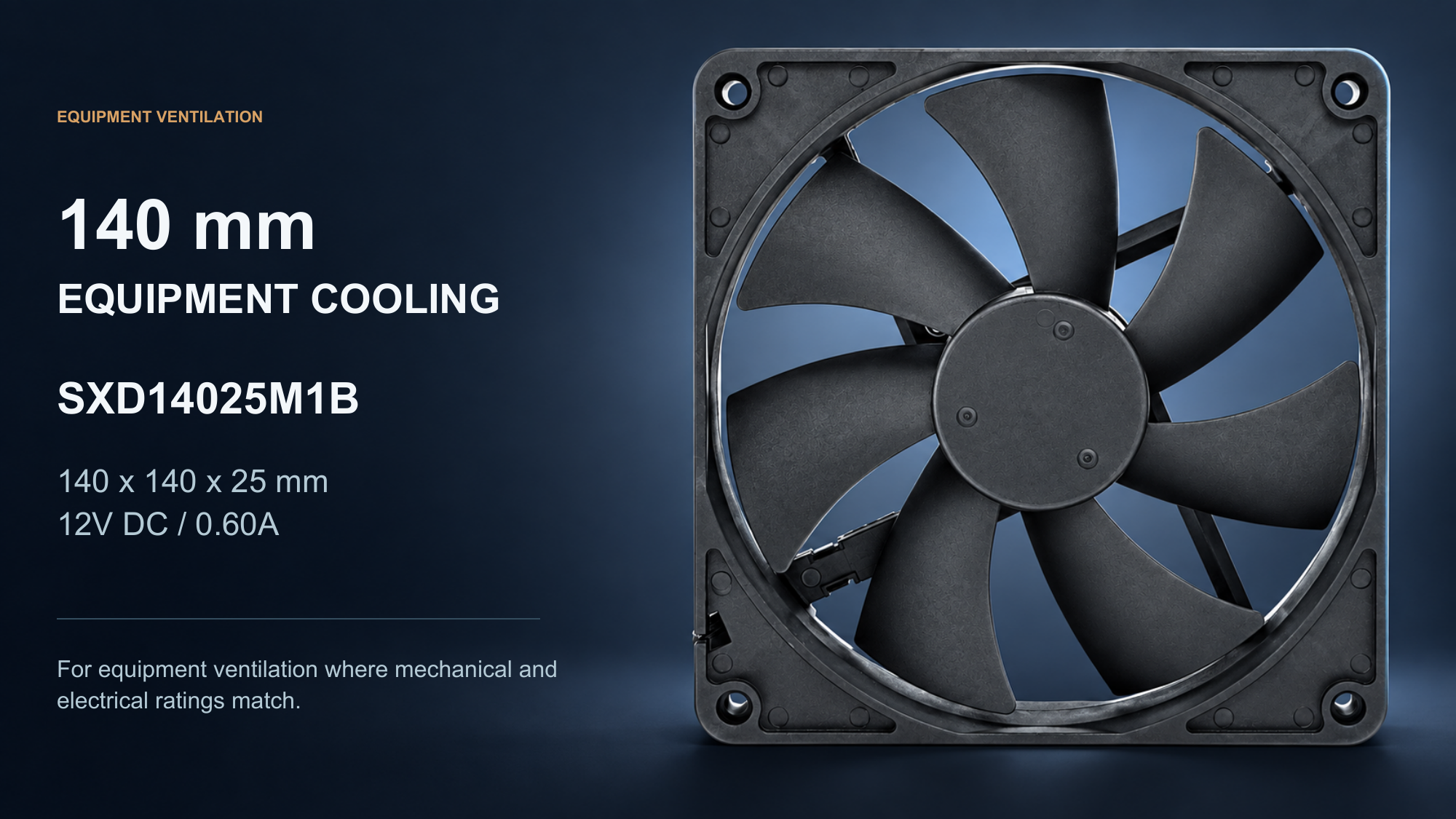

SXD14025M1B industrial axial cooling fan. 140 x 140 x 25 mm. 12V DC, 0.60A. Select by exact model, mechanical fit and electrical compatibility.

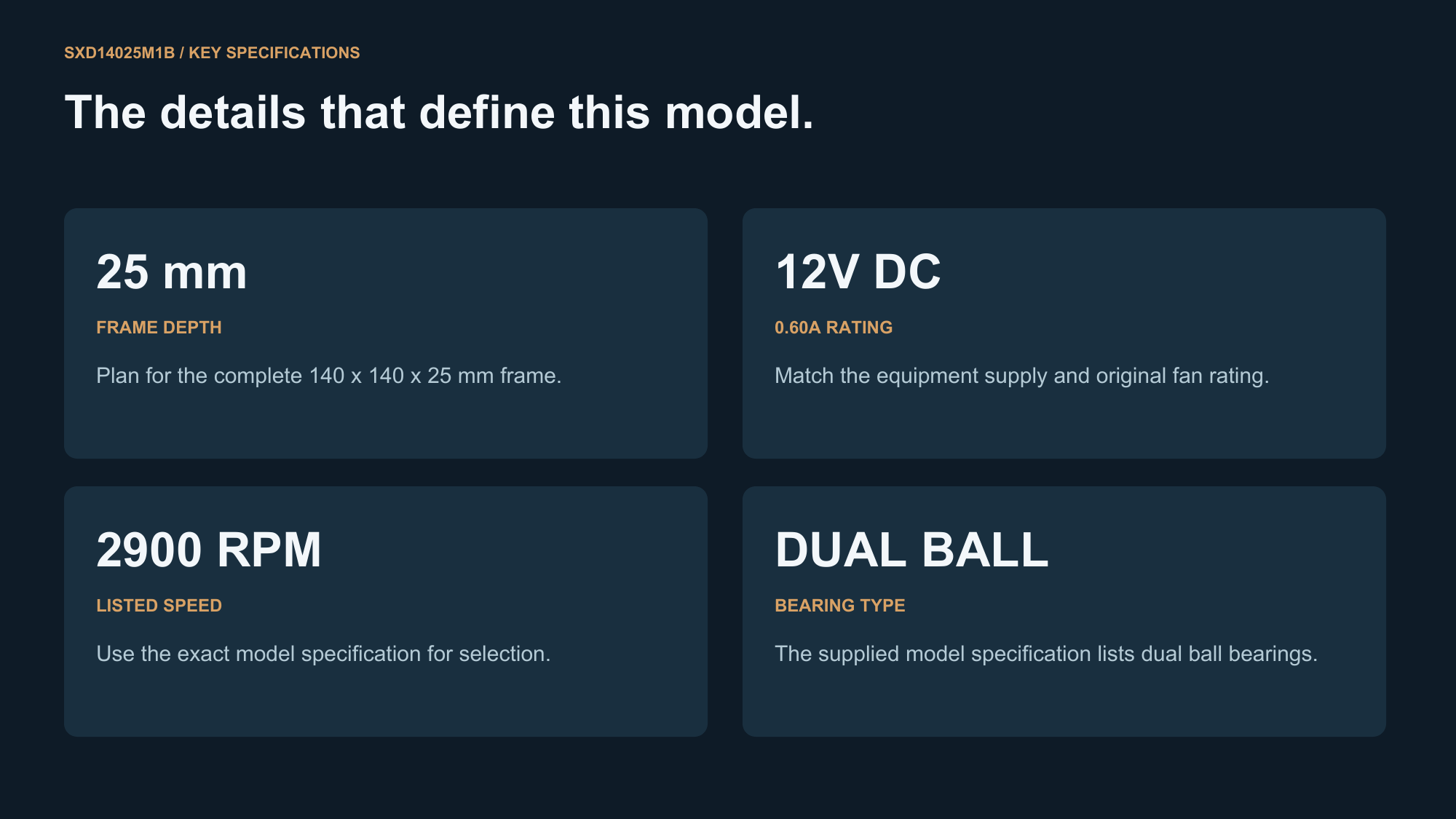

Model-Defining Specifications
25 mm frame depth, 2900 RPM listed speed and dual ball bearings. These specifications identify this model; they do not establish universal replacement compatibility.

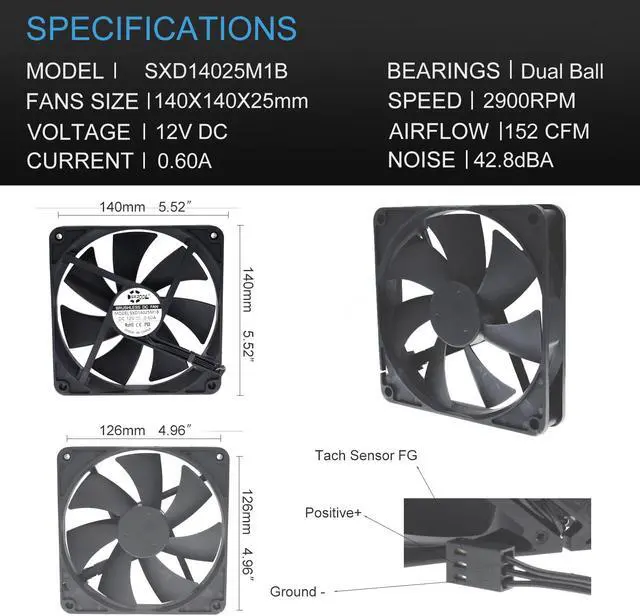

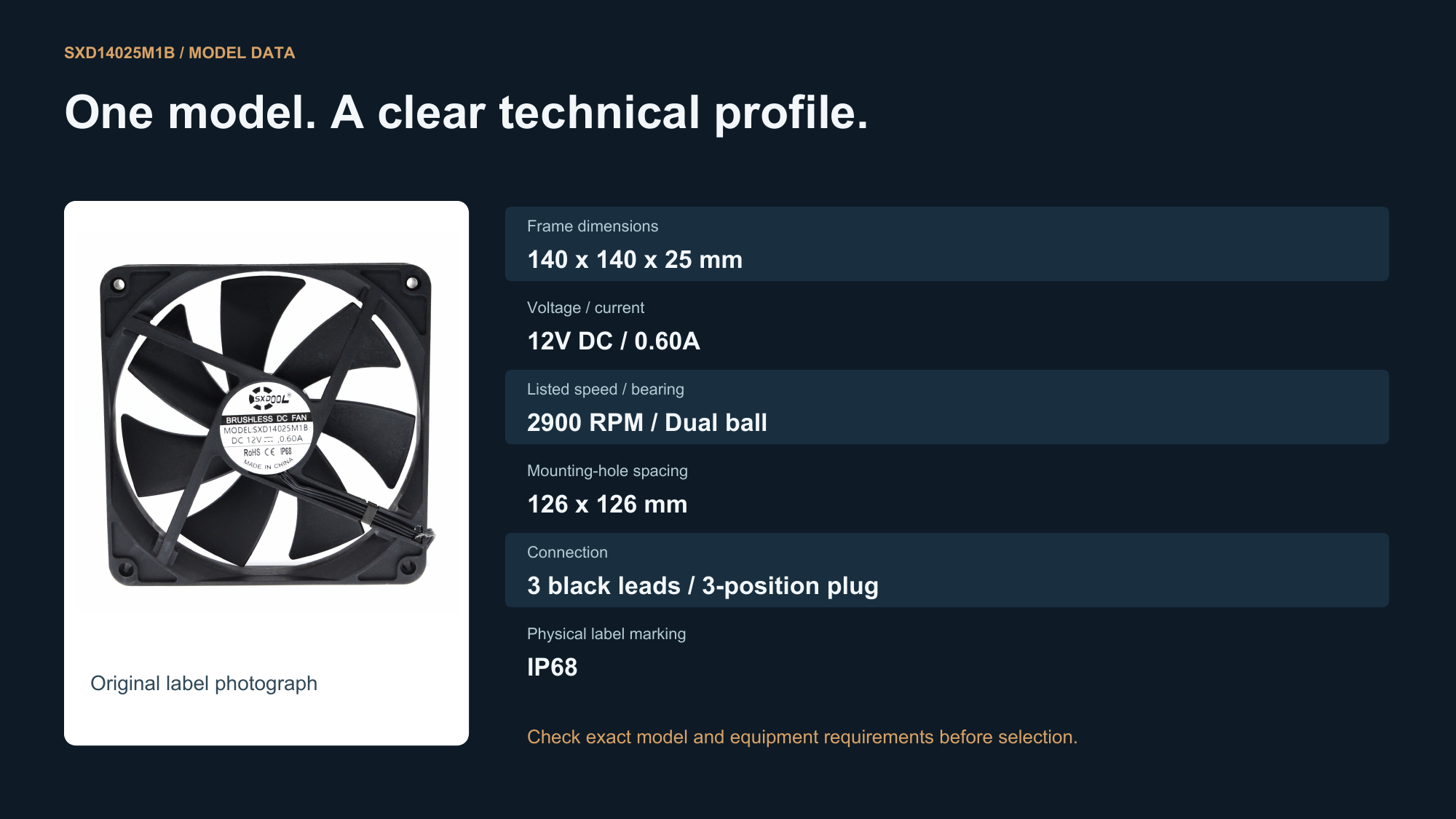

SXD14025M1B Technical Profile
Model: SXD14025M1B
Frame dimensions: 140 x 140 x 25 mm
Rated voltage and current: 12V DC, 0.60A
Listed speed: 2900 RPM
Bearing: dual ball
Mounting-hole spacing in supplied specifications: 126 x 126 mm
Connection: three black leads with a 3-position plug

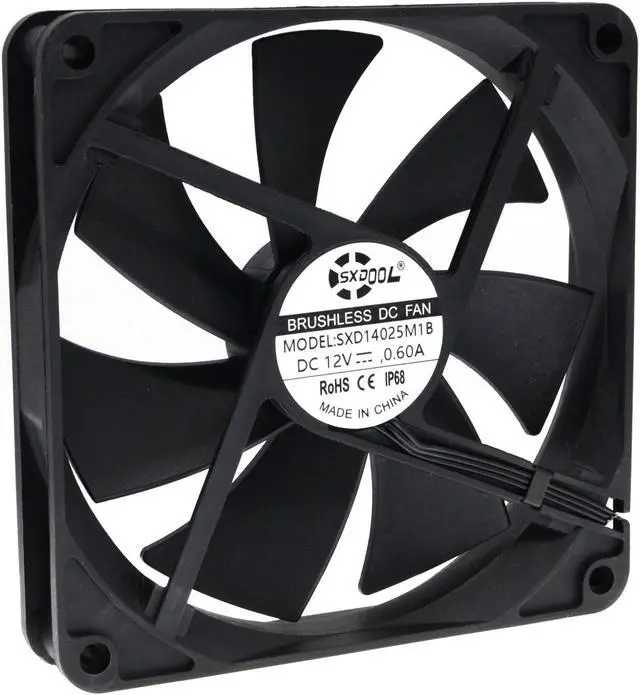

Physical motor label marking: IP68

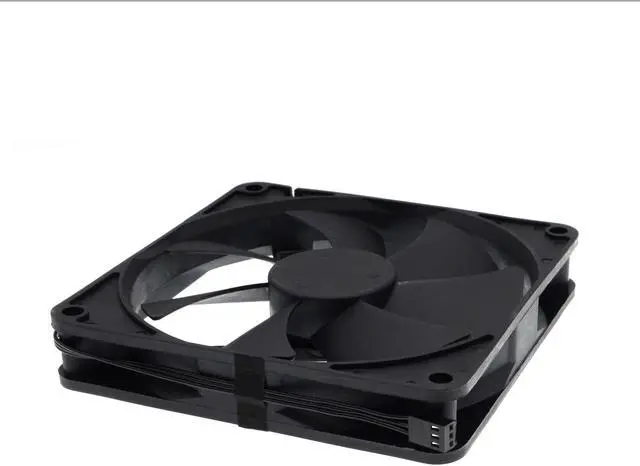

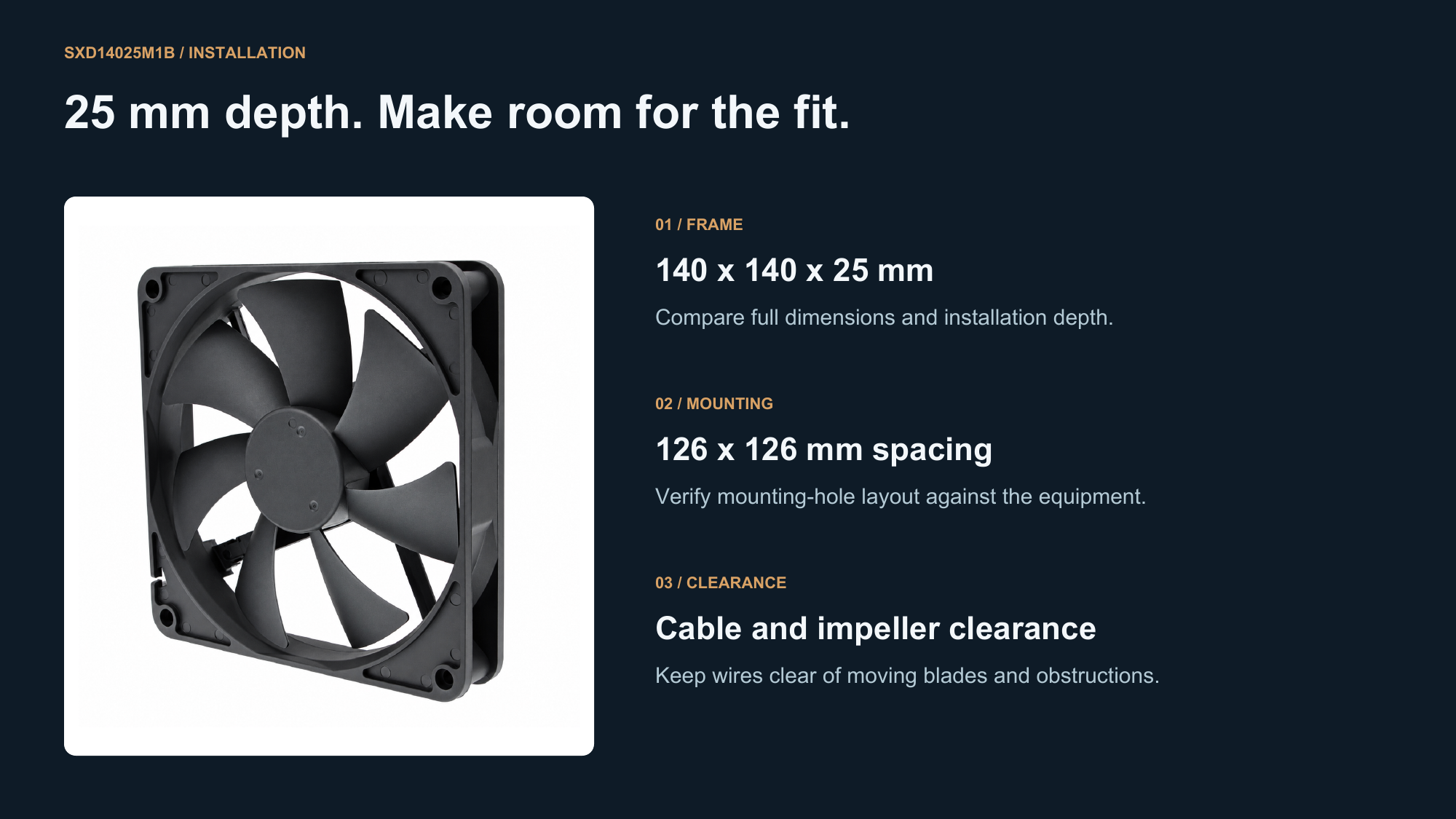

Check Depth and Mounting Layout
Allow the full 25 mm frame depth. Supplied specifications list 126 x 126 mm mounting-hole spacing. Compare the equipment mounting points and leave clearance for the cable and connector.

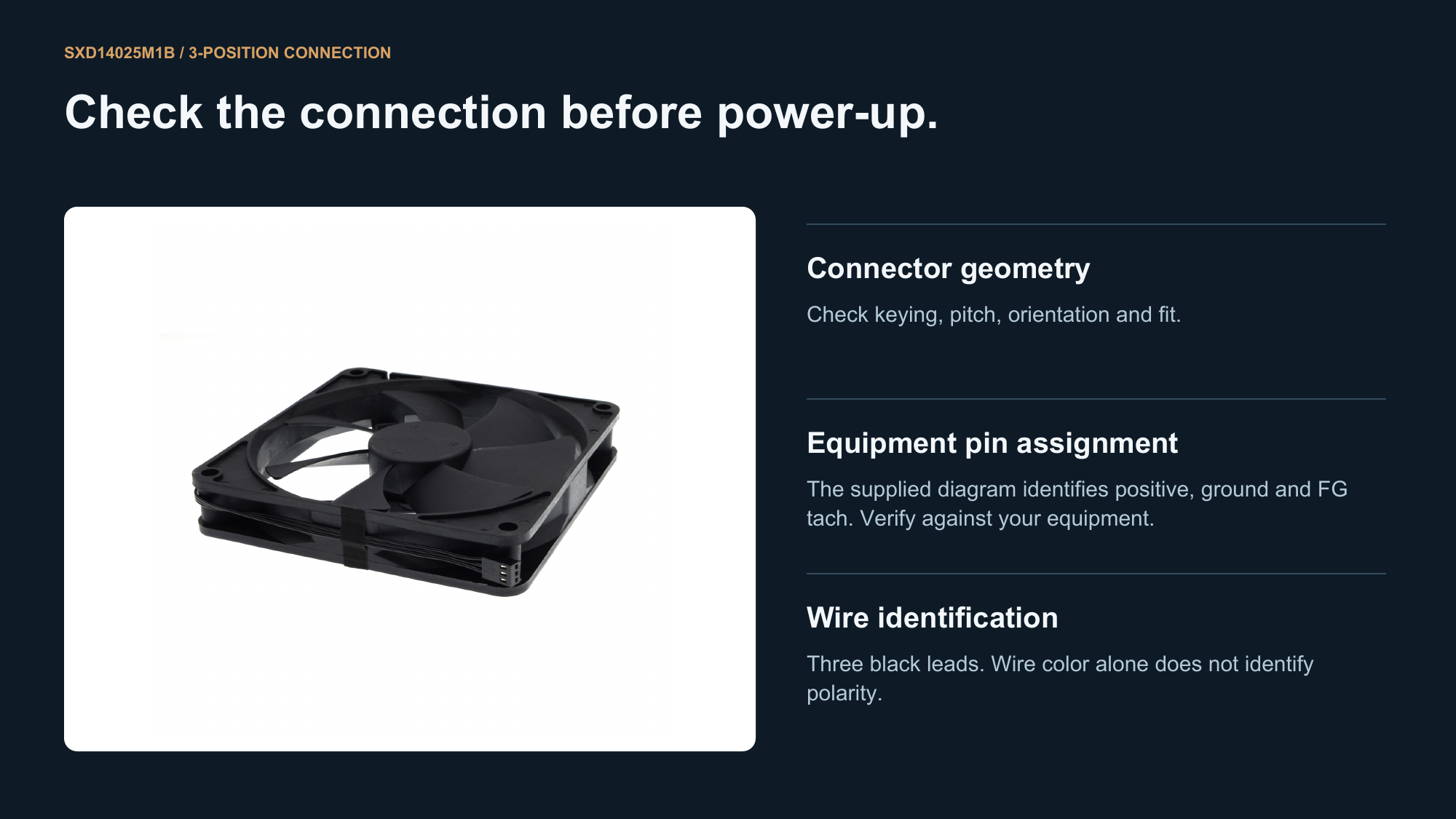

Verify the Three-Lead Connection
Three black wires and a 3-position plug. The supplied diagram identifies positive, ground and FG tach. Verify connector keying, orientation and equipment pin assignment before power-up.

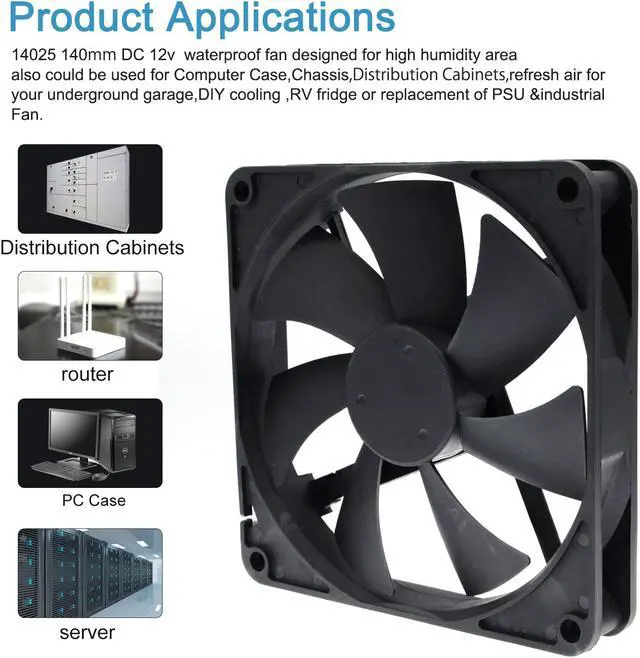

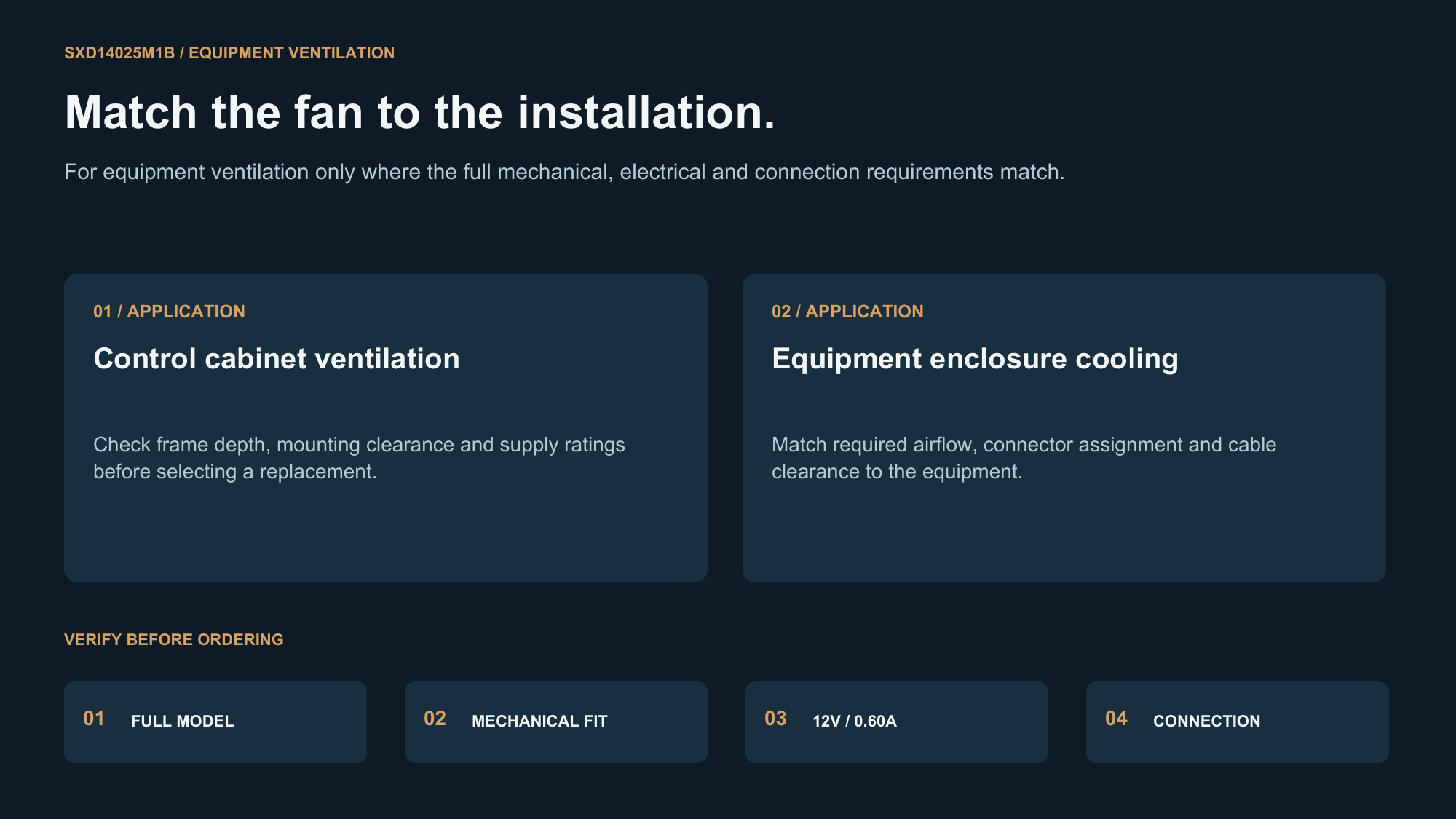

Match the Fan to Your Equipment

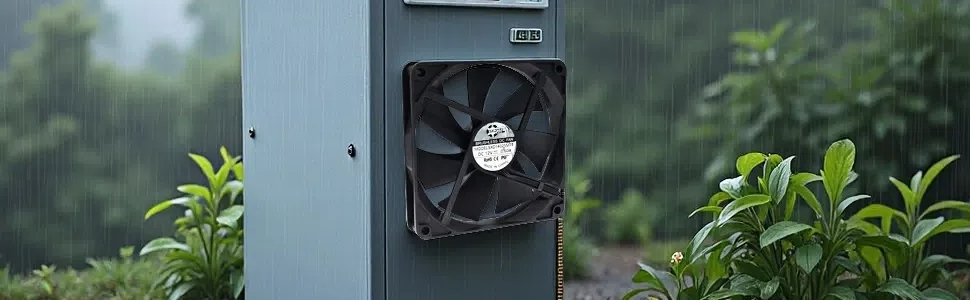

Equipment enclosures and control cabinets are conditional applications, not guaranteed fitments. Match the model, dimensions, supply, required airflow and connection. The IP68 motor-label marking does not establish connector sealing or underwater operation.

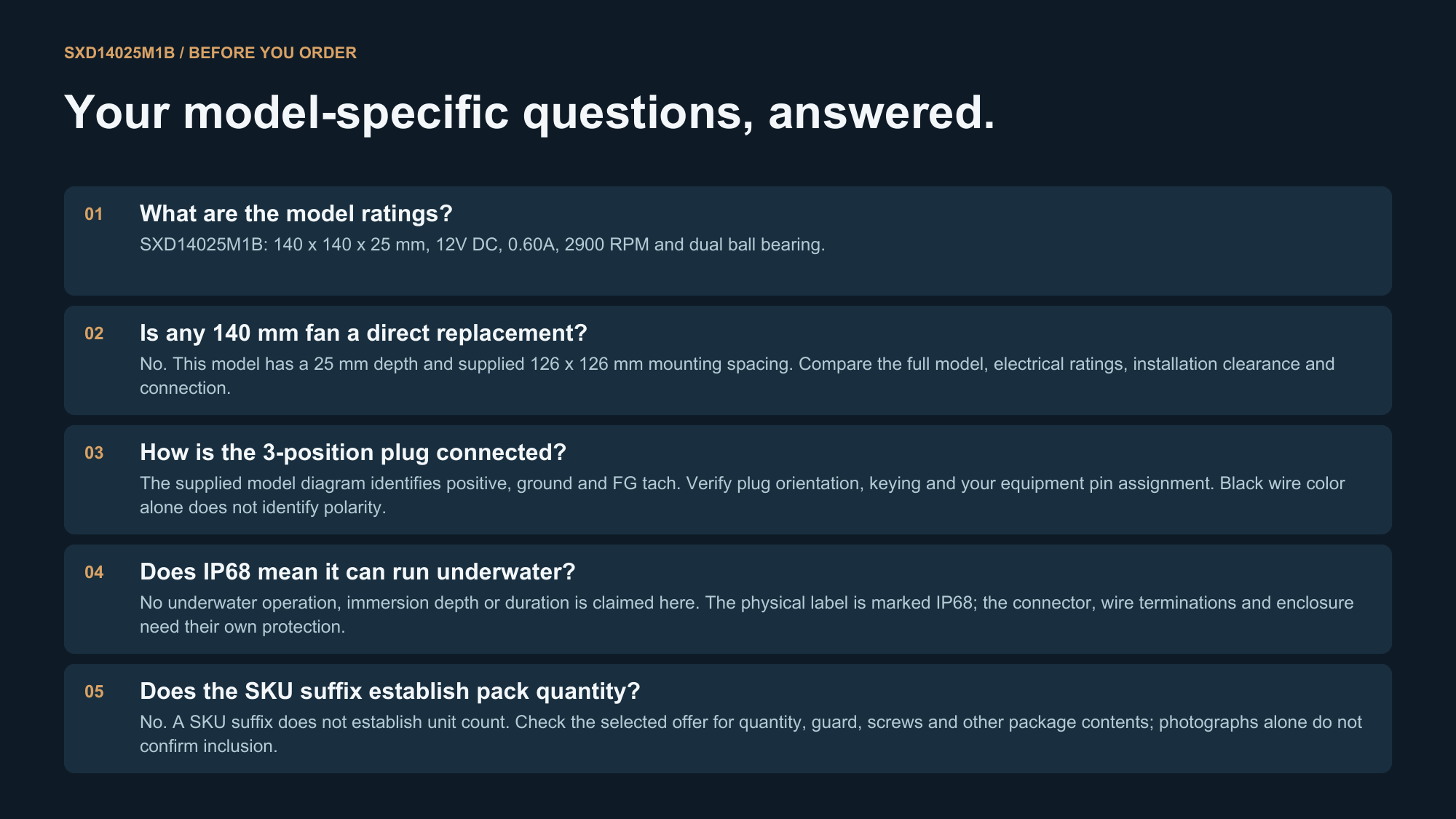

Before You Order
Will this fit any 140 mm fan opening?
Not necessarily. Check the 140 x 140 x 25 mm frame, supplied 126 x 126 mm mounting-hole spacing, clearance, electrical ratings and connector against your equipment.
Does the 3-position plug guarantee compatibility?
No. The supplied diagram identifies positive, ground and FG tach, but plug keying, orientation and the equipment pin assignment must match. Black wire color alone does not establish polarity.

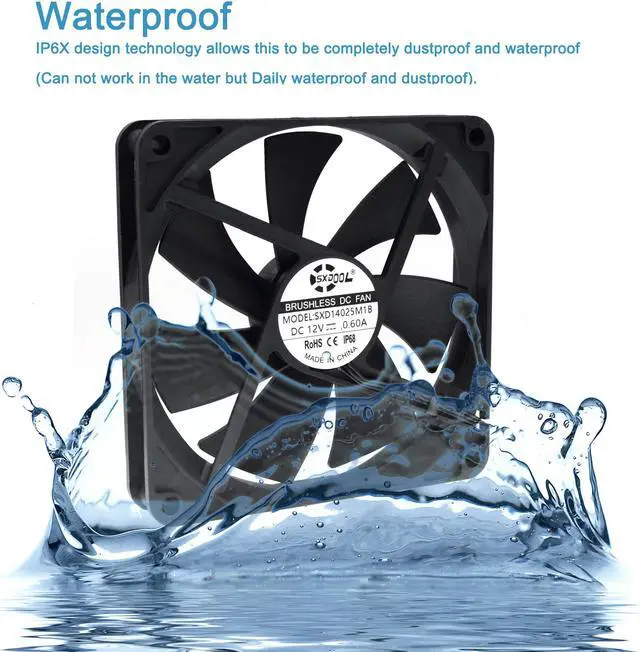

Can this fan operate underwater?
No underwater operation, immersion depth or duration is claimed. IP68 is shown on the physical motor label; connector sealing, wire terminations and enclosure protection require separate verification.
Does the seller SKU ending in 3 mean a three-pack?
The seller SKU suffix does not establish pack quantity. Check the selected offer for unit count and included accessories; photos alone do not confirm a guard, screws or other hardware.
