• $34.99
  • Free 30-day Returns
  • Ships from China.
    Price alert
    Shop it at NeweggBusiness.

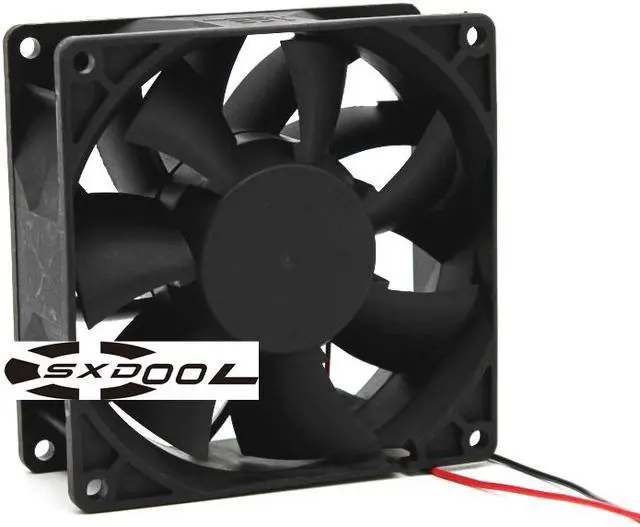

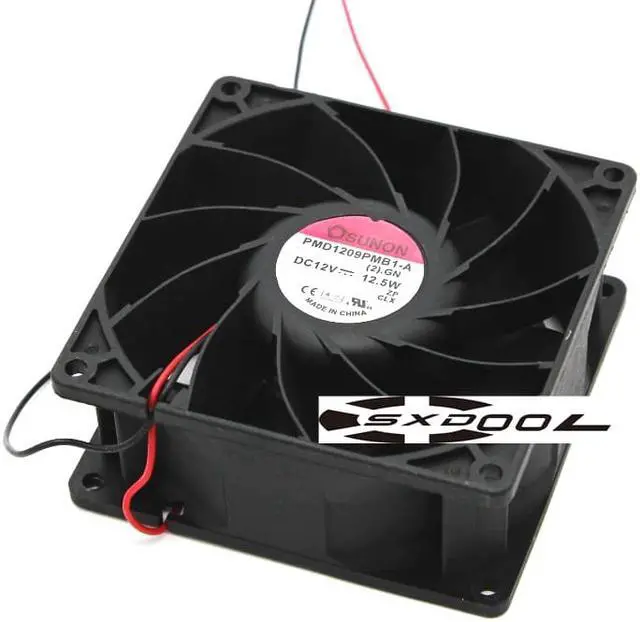

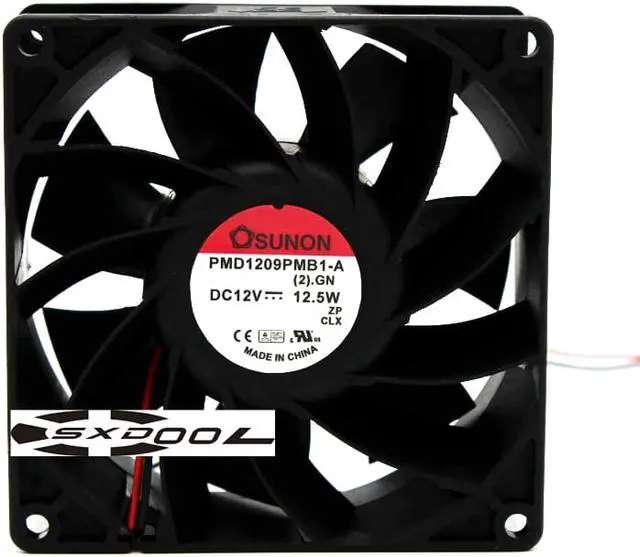

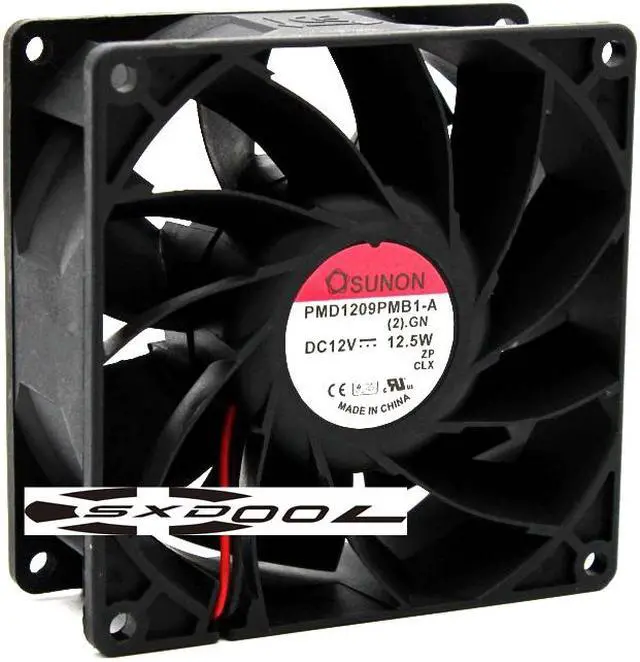

    Original SUNON PMD1209PMB1-A(2).GN 9CM 9038 12V 12.5W 2-wire fan

    • (12.5W) Specifications and product parameter details:
    • Fan type: DC
    • Fan type-axial
    • Power supply voltage: 12V DC
    • Fan size: 92mmx92mmx38mm
    • Power consumption: 12.5W
    • Rated current: 1.04A
    • Fan efficiency: 120.2 CFM (3.40m³/min)
    • Noise level: 57.6 dB(A)
    • Bearing type: ball bearing
    • Rotation speed: 4900 RPM
    • lead wire: 2 lines (the interface can be installed and replaced according to the equipment)?
    • Weight: 0.419 lb (190.06g)
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    ( 12.5W )
    Specifications and product parameter details: Fan
    type: DC Fan type-axial
    Power supply voltage: 12V DC
    Fan size: 92mmx92mmx38mm
    Power consumption: 12.5W
    Rated current: 1.04A
    Fan efficiency: 120.2 CFM ( 3.40 m³/min)
    Noise level: 57.6 dB (A)
    Bearing type: ball bearing
    Rotation speed: 4900
    RPM lead wire: 2 lines (the interface can be installed and replaced according to the equipment) ?
    Weight: 0.419 lb ( 190.06 g) Current and power consumption tolerance-±15% Minimum insulation resistance -10MO Fan Material-Thermoplastic Shell material-thermoplastic material Insulation class-A Operating temperature-10... 70°C Static pressure- 10.92 mm H2O Fan Motor-Brushless DC Motor Flammability rating-UL94V-0 Other features-automatic restart Working voltage -6... 13.8V Wire size-28AWG
