$40.99
Ships from China.
Meet Your Seller

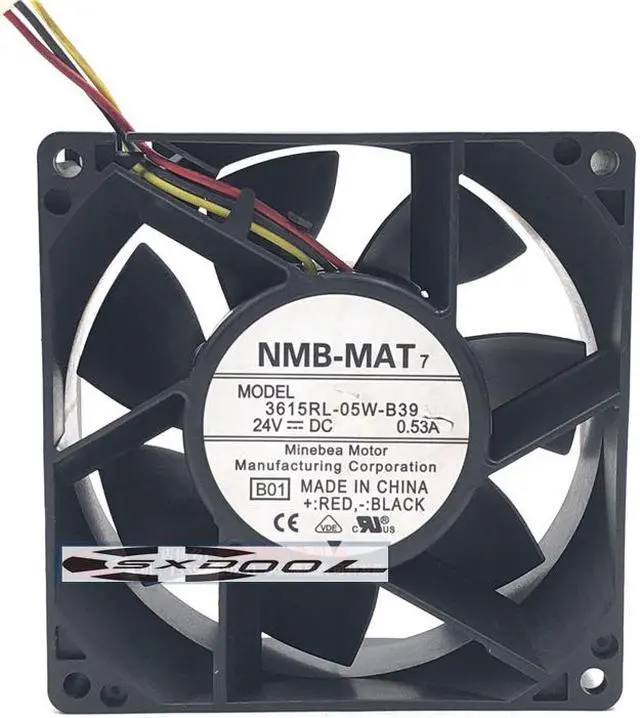

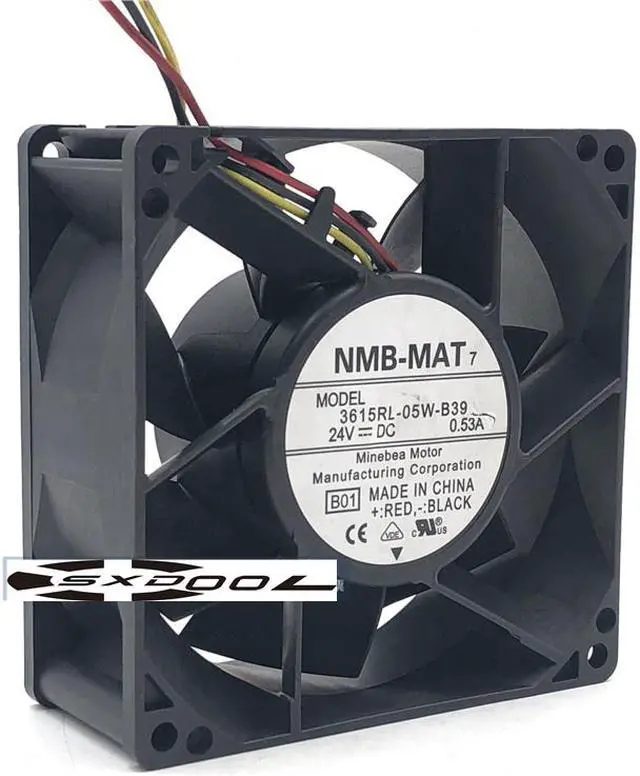

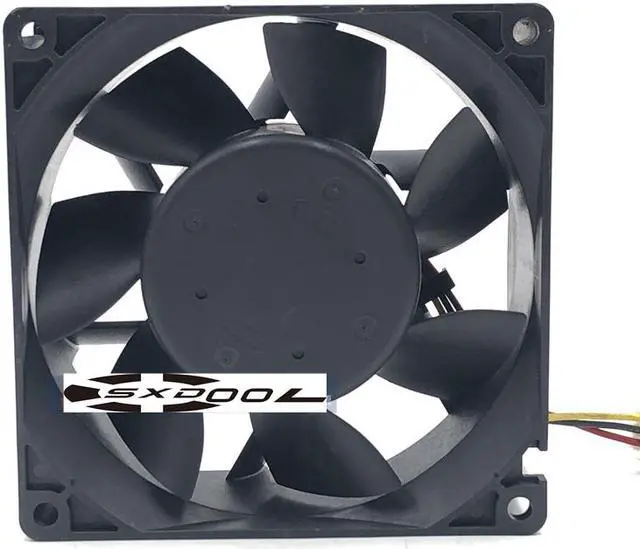

SXDOOL NMB 3615RL-05W-B39 B01 DC 24V 0.53A 90x90x38mm 3-Wire 3-pin Server Cooling Fan
- Brand: NMB
- Model: 3615RL-05W-B39
- Specification: 90X90X38 mm
- Voltage: 24V
- Current: 0.53A
- Noise: 52.5 dB (A)
- Power (W): 9.60W
- RPM: 5000 RPM
- Airflow: 103.8 CFM (2.91m?/min)
- Static pressure: 0.571 inches of water column (142.2 Pa)
- Lead: 3-wire with terminal
- Bearing: High precision double ball bearing
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Purpose: fan, thermal management
Part Model: 3615RL-05W-B39
Manufacturer: NMB
Technologies Corporation Description: FAN AXIAL 92X 38.4MM 24VDC
WIRE Series: 3615RL
Part status: on sale
Voltage-Rating: 24VDC
Size/Dimensions: Square-92mm long x 92mm high
Width: 38.40 mm
Airflow: 103.8 CFM ( 2.91 m? /min)
Static pressure: 0.571 inches of water column ( 142.2
Pa) Bearing type: ball
Fan type: tube shaft type
Features: Speed ??sensor (tachometer)
Noise: 52.5 dB (A)
Power (W): 9.60W
RPM: 5000
RPM Termination: 3 leads
Intrusion protection: -
Working temperature: 14 ~ 158°F (-10 ~ 70°C)
Approval: CE, UR, VDE
Weight: 0.507 pounds ( 229.97 g)
Part Model: 3615RL-05W-B39
Manufacturer: NMB
Technologies Corporation Description: FAN AXIAL 92X 38.4MM 24VDC
WIRE Series: 3615RL
Part status: on sale
Voltage-Rating: 24VDC
Size/Dimensions: Square-92mm long x 92mm high
Width: 38.40 mm
Airflow: 103.8 CFM ( 2.91 m? /min)
Static pressure: 0.571 inches of water column ( 142.2
Pa) Bearing type: ball
Fan type: tube shaft type
Features: Speed ??sensor (tachometer)
Noise: 52.5 dB (A)
Power (W): 9.60W
RPM: 5000
RPM Termination: 3 leads
Intrusion protection: -
Working temperature: 14 ~ 158°F (-10 ~ 70°C)
Approval: CE, UR, VDE
Weight: 0.507 pounds ( 229.97 g)
