IKURA FAN USMD1-UHS4506W 100V AC Industrial Axial Cooling Fan with USHD1 24V DC N.C. Fan Sensor, 120 x 120 x 38mm Frame, 20/18W, 2650/3100 RPM, 1-Pack
- Exact fan-label model USMD1-UHS4506W; the attached fan-sensor module is separately labeled USHD1. Do not substitute one model number for the other.
- Fan motor is rated 100V AC, 50/60Hz, 0.12/0.10A and 20/18W, with values listed in 50Hz/60Hz order.
- 120 x 120 x 38mm fan frame; 2650/3100 RPM, 84.75/95.34 CFM, 0.29/0.33 inH2O maximum static pressure and 42/46 dB(A) at 50/60Hz.
- Metal impeller, die-cast aluminum frame, ball bearing and impedance protection; specified operating temperature range is -10°C to +60°C.
- Base fan is a three-terminal type. The attached USHD1 fan sensor is separately rated 24V DC with N.C. output; match original terminals and wiring, and do not infer pinout from wire colors. Includes one fan assembly.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

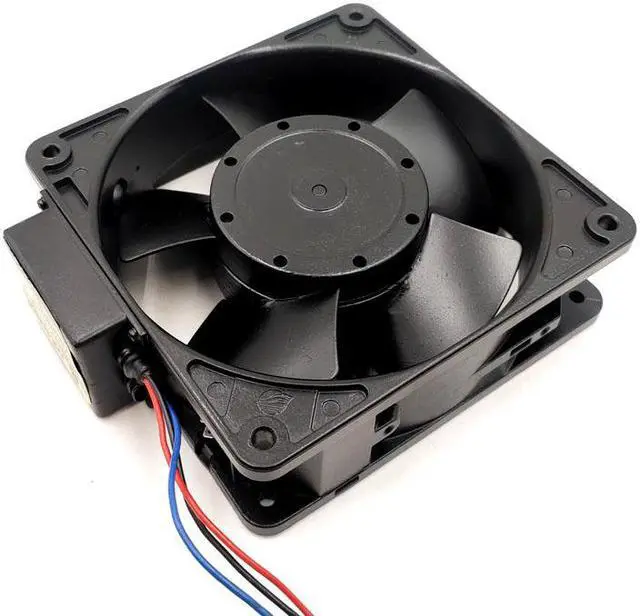

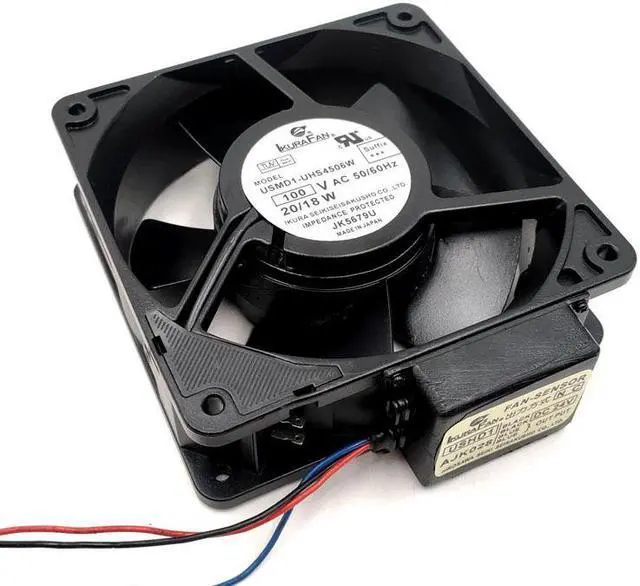

The IKURA FAN USMD1-UHS4506W is an industrial AC axial cooling fan assembly for compatible control cabinets, machinery and equipment ventilation. The complete fan-motor model is USMD1-UHS4506W; the attached sensor module is separately labeled USHD1.

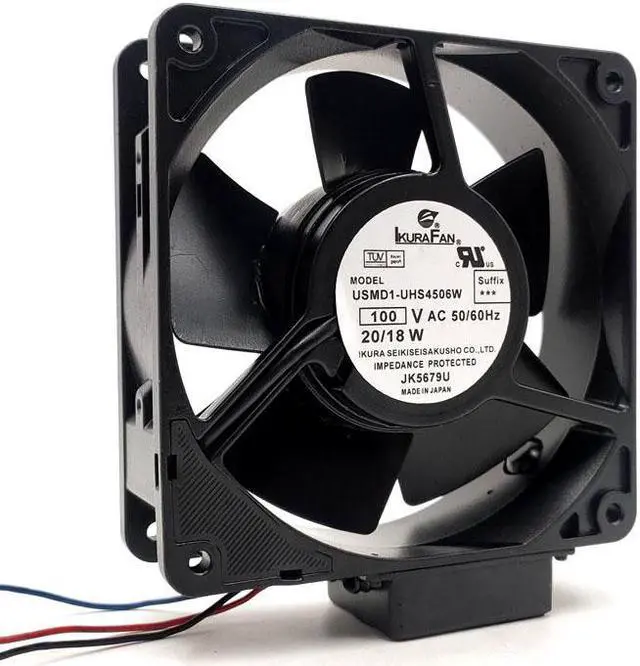

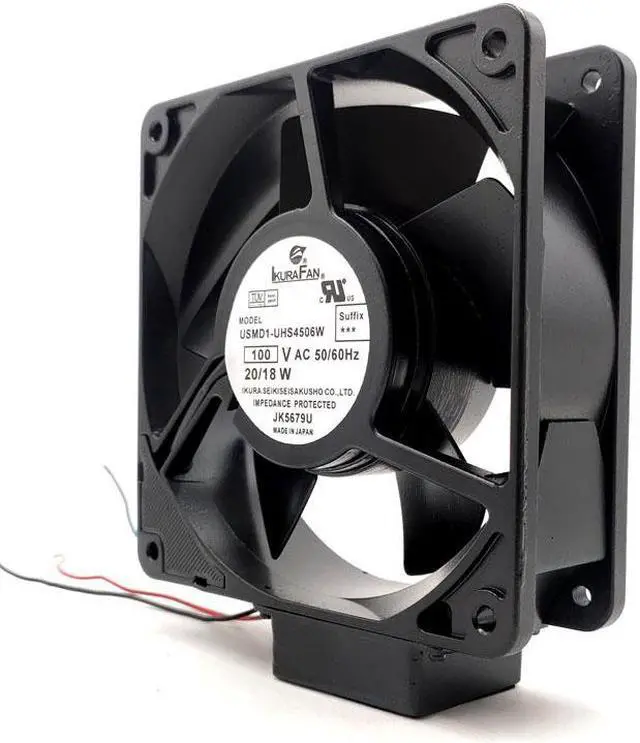

Fan motor specifications: 100V AC; 50/60Hz; 0.12/0.10A; 20/18W; 2650/3100 RPM; 84.75/95.34 CFM maximum airflow; 0.29/0.33 inH2O maximum static pressure; and 42/46 dB(A), with paired values listed in 50Hz/60Hz order. The fan frame is 120 x 120 x 38mm.
Construction and protection: metal impeller, die-cast aluminum frame, ball bearing, impedance protected, and a specified operating temperature range of -10°C to +60°C.

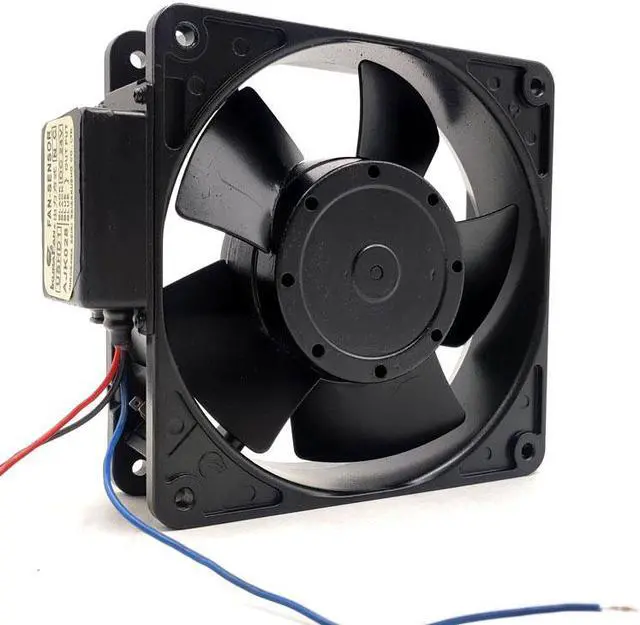

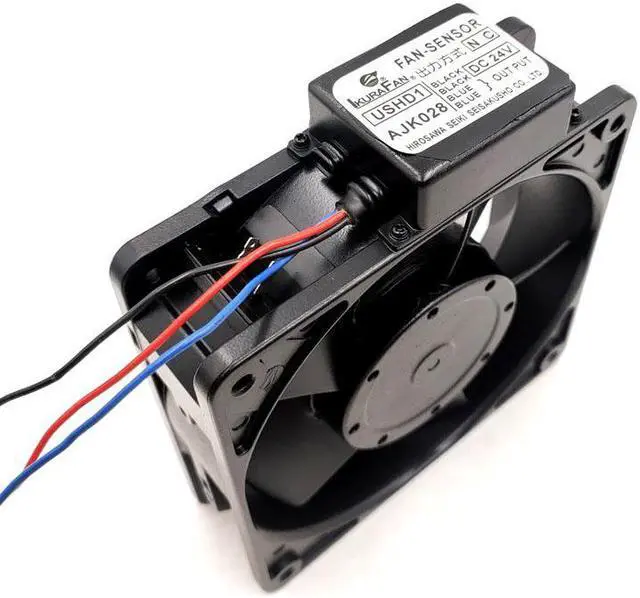

Sensor and wiring: The base fan is a three-terminal type. The attached USHD1 fan sensor is a separate 24V DC module with output marked N.C. for fan-state monitoring in compatible equipment. Match the original equipment terminals, sensor output and wiring, and do not infer pinout from wire colors.
This listing includes one fan assembly with the attached sensor module. The 120 x 120 x 38mm measurement refers to the fan frame only; the sensor housing protrudes beyond the frame. Before ordering, compare both model labels, frame dimensions, mounting pattern, motor voltage and frequency, sensor supply and output, and terminal arrangement with the original equipment. Disconnect power before installation.
