SUNON EEC0382B1-000C-A99 24V DC Industrial Axial Cooling Fan, 120 x 120 x 38mm, 0.383A, 9.2W, 3100 RPM, 138 CFM, 2-Wire 2-Pin Plug, 1-Pack

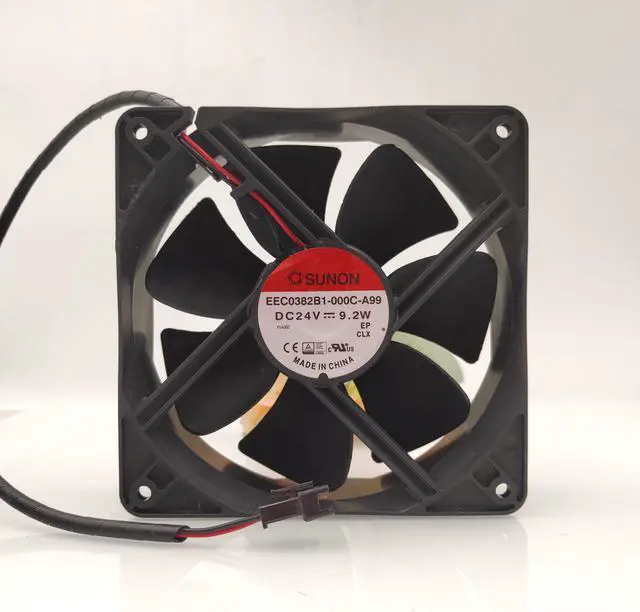

- Exact fan-label model EEC0382B1-000C-A99; the character after EEC is the digit 0. Verify the complete label before ordering.
- Rated 24V DC, 383mA (0.383A) and 9.2W; the exact-model specification lists 440mA and 10.57W maximum.
- 120 x 120 x 38mm axial frame, 3100 RPM rated speed (±10%), 138 CFM airflow, 0.36 inH2O static pressure and 48 dB(A).
- Precision ball-bearing system with automatic restart, polarity protection and a -10°C to +70°C operating temperature range.

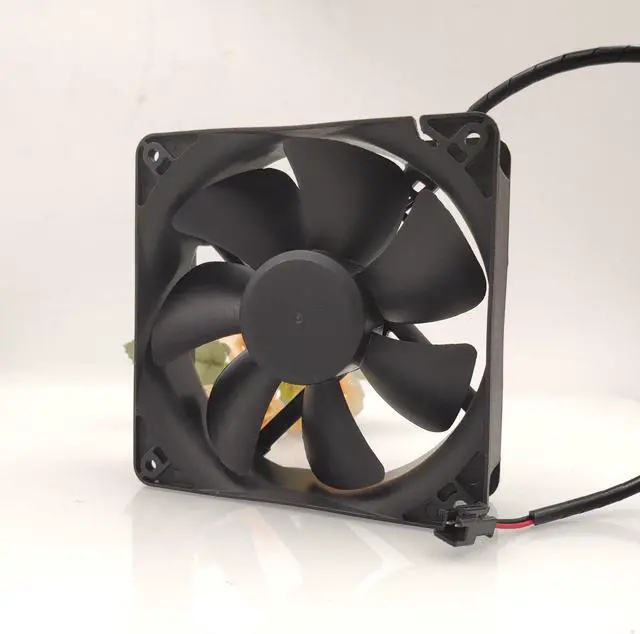

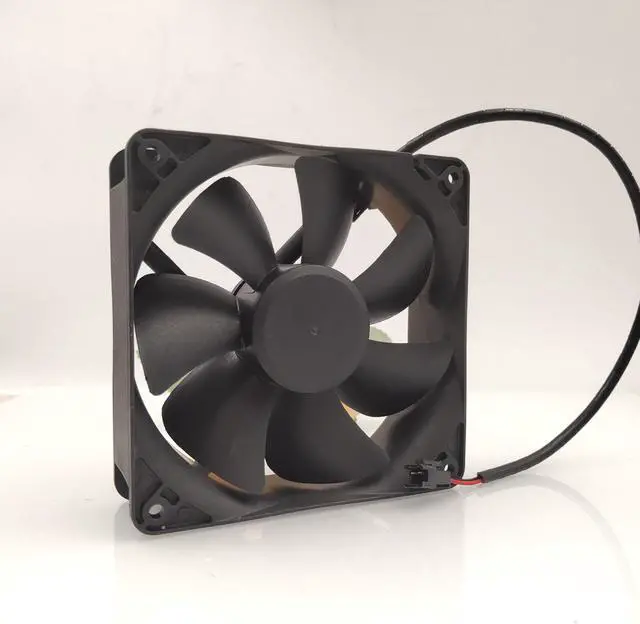

- Photos show a red/black 2-wire lead terminated in a 2-pin plug. Includes one fan; match model, dimensions, mounting holes, voltage, current, wire count and plug shape before replacement.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The SUNON EEC0382B1-000C-A99 is a 120 x 120 x 38mm DC axial fan for compatible industrial equipment, inverter cabinets, power supplies and control-enclosure ventilation. The fan label uses the digit 0 after EEC; compare the complete model before ordering.
Exact-model technical data rates the fan at 24V DC, 383mA (0.383A) and 9.2W, with 3100 RPM rated speed (±10%), 138 CFM airflow, 0.36 inH2O static pressure and 48 dB(A). The design uses a precision ball-bearing system and includes automatic restart and polarity protection.
This listing includes one fan. Product photos show red and black power wires terminated in a 2-pin plug; the plug configuration is listing-specific and should be matched by shape and occupied positions. Before installation, compare the model, frame dimensions, mounting-hole pattern, voltage, current, wire count and connector with the fan being replaced. Disconnect power and do not select by appearance alone.
