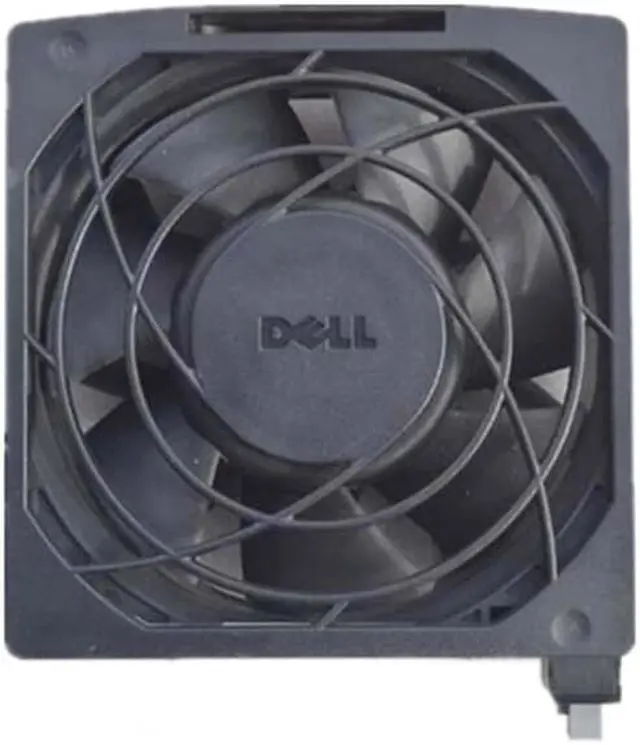

Original For DELL R910 Server 0H894R case Fan 12cm PFC1212DE 12V 4.8A V12E12BS2B5 -07A021 HF104-A00 cooler

Fan Brand:

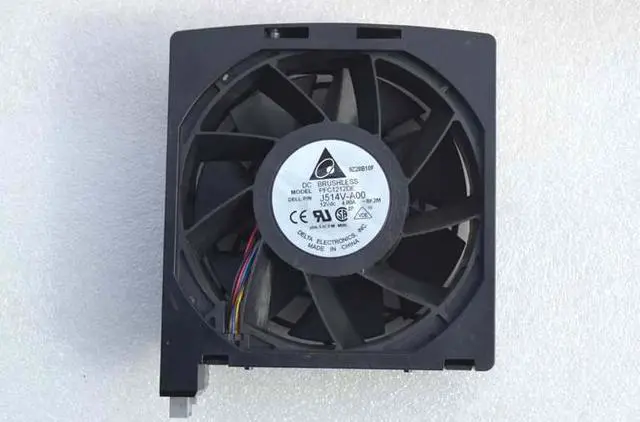

DeltaMODEL:
PFC1212DESize:
120×120×38MMVoltage:
DC12VCurrent: Nominal 4.8A (12V rated current is 2.98A, the false standard of Delta fans is more serious, friends who know the goods know that this is the 12038 fan that can reach such a large current, and no other models can compare with him.
)Air volume: 252.85CFM
( 7.16 m3/min)Wind pressure: 1.412 in H2O ( 351.7
Pa)Weight: 0.351
kgNoise: 66.5 dB (A)
Power: 57.6WS
peed ??regulation: support motherboard
PWM speed regulationSpeed ??measurement:
supportInterface: motherboard 4P + power supply large 4D dual power supply interfaceLine length: 35cmNumber
of revolutions: 5500
RPM at 12VFan frame: one-shot injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan blade: one-shot injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation: counterclockwise when viewed from the direction of the fan blades;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearing: high precision ball bearing;
Power supply range: plus or minus 15% of rated power supply; insulation resistance: greater than 500 megohms;
Withstand voltage: sink leakage current 0.5 mA 500V/1 minute;
Working life: 80, 000 hours at ambient temperature of 25 degrees.
