Watercool Conversion Kit HEATKILLER® IV for AMD TR4 and SP3 (14073)

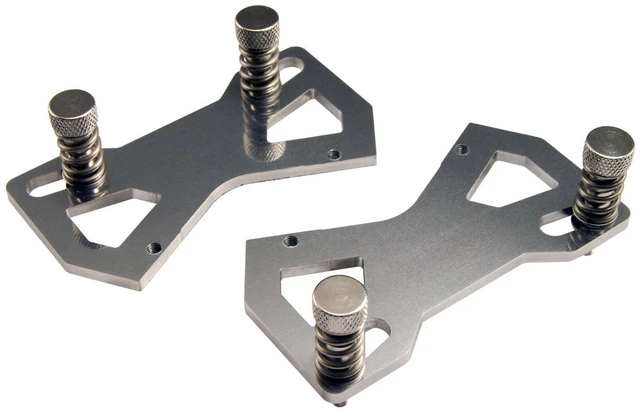

A socket conversion kit that makes any HEATKILLER® IV CPU water block, PRO or BASIC, compatible with the AMD TR4 and SP3 sockets. The Watercool Conversion Kit HEATKILLER® IV for AMD TR4 and SP3 (14073) holds two stainless steel mounting brackets and the mounting material, and it comes pre-assembled.

Properties

• For: HEATKILLER IV PRO and HEATKILLER IV BASIC CPU blocks
• Sockets: AMD TR4, SP3
• Pieces: 2 mounting brackets, mounting material, manual
• Material: Stainless steel

Ready to go on

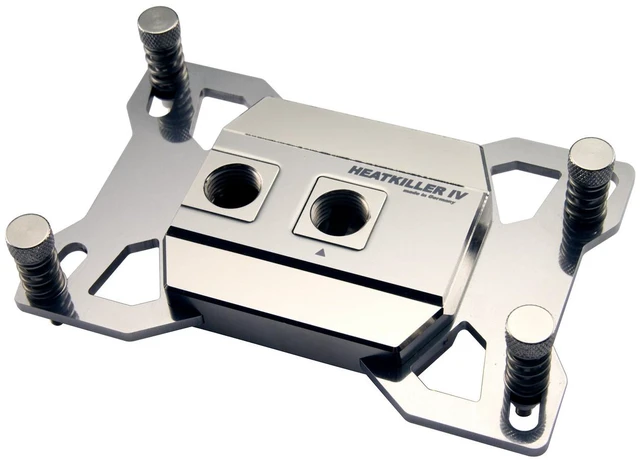

All the mounting materials necessary for these two sockets are included in this set. For increased simplicity during installation, the hardware arrives already put together, so you can set the block straight onto the existing socket.

How it mounts

The cooler is screwed into the original backplate of the mainboard, so you do not have to take the board out or reach its back side. A small spring force has to be overcome to start the four screws: start all four before tightening any of them.

Then tighten them crosswise, screw 1 first, then 2, 3 and 4, one complete turn each, and repeat until all are fully tight. The mounting solution has a defined stop, so the screws cannot be overtightened; turn each to the stop for the right pressure.

What you need to mount it

You need a HEATKILLER IV block to convert and fresh thermal paste.

Notes

• Remove the old CPU heat sink with all its parts and clean off the leftover thermal paste before you apply new paste.
• HEATKILLER IV blocks have a defined inlet and outlet: the intake is in the center of the cooler.
• Watercool recommends demineralized or deionized (distilled) water as coolant.

In the box

• 2x stainless steel mounting bracket
• 1x mounting material
• 1x installation manual
