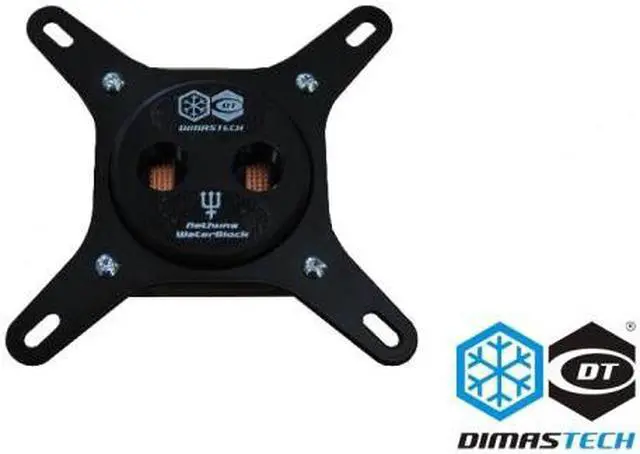

Dimastech® Nethuns WaterBlock Sockets 775/115x/1366 Black (WB001)

Dimastech® Nethuns WaterBlock

Keeping with the Dimastech® tradition the Dimastech Nethuns offers excellent performance, refined aesthetics, customization and an excellent price to performance ratio.

Key Features:

• Dimastech Nethuns® Water Block comes complete with universal bracket 775/1156/1366 and AM2/AM3 (coming soon), screws and springs.


• Base structure: matrix Micropin


• Optimal operating range: 100 to 500 l / h


• All parts of our Water Block are removable and interchangeable to ensure, if necessary, easy maintenance and cleaning, or a fast substitution of a broken part.

Technical Specifications of Dimastech Nethuns® Water Block

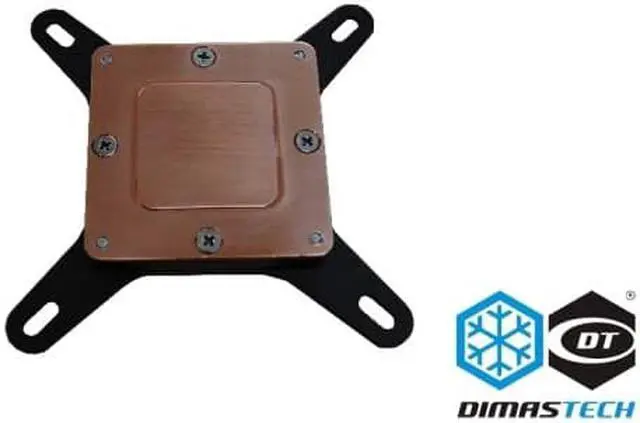

Base:

• Matrix Micropin


• Material: Pure Electrolytic Copper C110 (Size: 55x55mm)


• Inner Workings: Precision micro milling


• External Processing: Grinding, brushing, polishing and lapping Base


• Secured with stainless steel screws


• Manual Final Finishing

Cover:

• Made of Black Delrin


• Internal work carried out by numerically controlled milling


• Outside processing through CNC milling and polishing the final aesthetic


• Custom O-Ring


• Base secured by 8 steel screws


• Finishing with logos & Nethuns Dimastech ® Water Block in white

Compatibility Connections:

• Compatibility compression fittings: maximum diameter of the outer ring of each ring: 25 mm, maximum depth permissible for the thread: 5 mm


• Possibility of mounting fittings tube holder, quick release and compression hose 3 / 8 id 1 / 2 OD up to 25 mm in diameter and maximum depth permissible for the thread: 5 mm

Mounting Bracket:

• Galvanized steel, thickness 1.5 mm


• Precision Laser Cutting


• Phosphate


• Powder Coating

Compatible Processors:

• Intel Socket 775


• Intel Socket 1156 I5


• Intel Socket 1366 I7


• AM2/AM3 (Coming Soon)

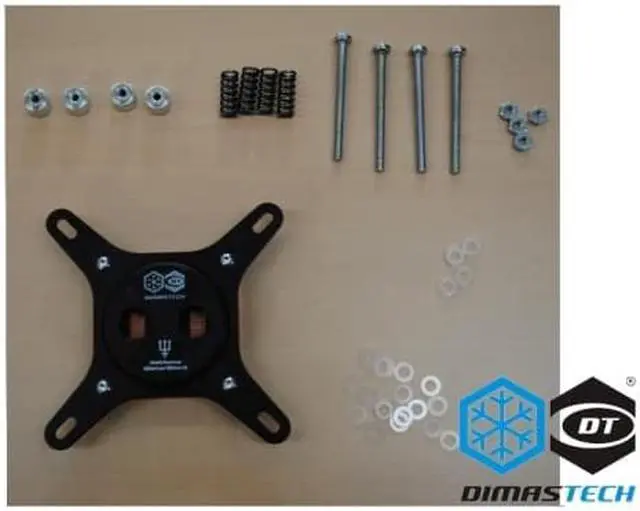

Mounting Hardware :

• Steel length 50mm threaded M4


• Nylon insulating washers (2 sizes)


• Stainless steel bolts M4


• Knurled nuts M4


• Spring realized in harmonic stainless steel burnished

FITTINGS ARE NOT INCLUDED
