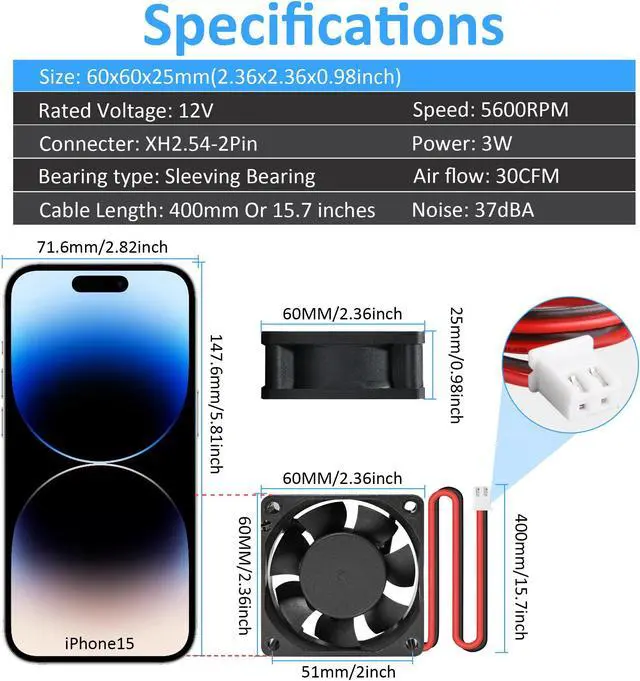

Dimension | 60*60*25mm |
---|---|
Current & Voltage | 0.25A/12V |
Noise | 37.5dBA (Max) |
Pressure | 6.0 mmH2O |
Cable Length | 400±15mm (15.7inch) |
Fan Speed | 5600RPM+-10% |
Products Details

High Airflow Pressure Blade
With PBT Material: Even the Fan with High Speed, The Fan Blade is Very difficult to deform, Then the Fan can work with stronger wind & lower noise.

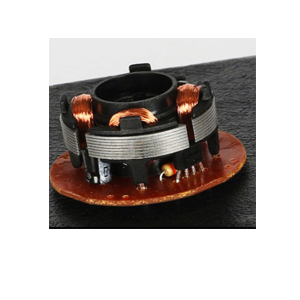

Long Life Sleeving Bearing
Sleeve Bearing Copper Motor and Thread with Stable 267IC: Using most stable original 267 IC Module with Copper Moto and Thread can lower the Temprature & Current of Motor,make sure the Fan with Very Low Noise and stable quality.

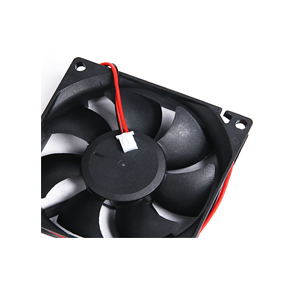

2Wire Connection Protection
2 Wire XH2.54 Connection with Reversing Connection Protection: Even You are Unprofessional,You can do the work .It has negative and positive only and even If wire Wrong connected,Fan will not burn but just not work.

Products | |||||
---|---|---|---|---|---|
Dimension | 80*80*25mm | 120*120*25mm | 120*120*45mm | 120*120*38 mm | 120*120*25mm |
Dimension | 3.15*3.15*0.98inch | 4.72*4.72*0.98inch | 4.72*4.72*1.77inch | 4.72* 4.72 *1.5 inch | 4.72*4.72*0.98inch |
Current | 0.2A | 0.5A | 0.25A | 0.75A | 0.25A |
Connector | 2 PIN XH2.54 | 3 PIN-2510 | USB | 3PIN | 2 PIN XH2.54 |
Airflow | 40CFM | 101.7CFM | 45CFM | 152CFM | 47CFM |
Speed | 3000RPM ±10% | 3000RPM ±10% | 1100-1500RPM ±10% | 3700RPM ±10% | 1600RPM ±10% |
Bearing Type | Sleeve | Dual Ball | Hydraulic | Dual Ball | Sleeve |
Noise | 31dB | 44.4dB | 28dB | 53dB | 30 dB |
Voltage | 12V | 12V | 5V | 24V | 12V |
Packing | 2 PCS | 3 PCS | 1 PCS | 1 PCS | 2 PCS |
