High airflow 120mm fan provide 5v/7v/9v/12v adjustable voltage.By adjust voltage the fan speed will also adjust from
1700rpm/2200rpm/2600rpm/3000rpm.It satisfied with different levels of cooling required.
120mm pc cooling fans equipped with metal protective grill to protect fingers and fan blades.
High performance 12V 3 pack fans can be used as replacement fan.

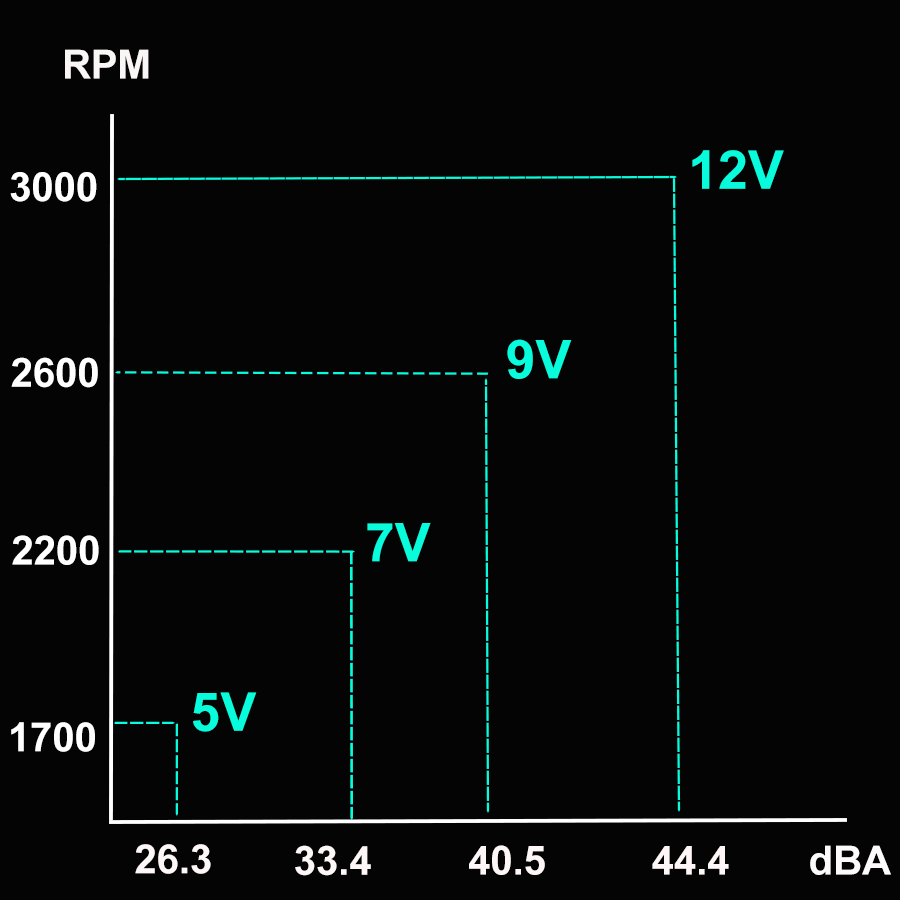

Voltage & Speed & Noise & Current & Airflow
- 5V: 1700RPM / 26.3dBA / 0.14A / 50.28 CFM
- 7V: 2200RPM / 33.4dBA / 0.214A / 65.76 CFM
- 9V: 2600RPM / 40.5dBA / 0.28A / 79.45 CFM
- 12V: 3000RPM / 44.4dBA / 0.5A / 101 CFM
Different voltage makes different spin speed and noise.
Dual ball bearing provide longer life span up to 6000 -100000 hours.

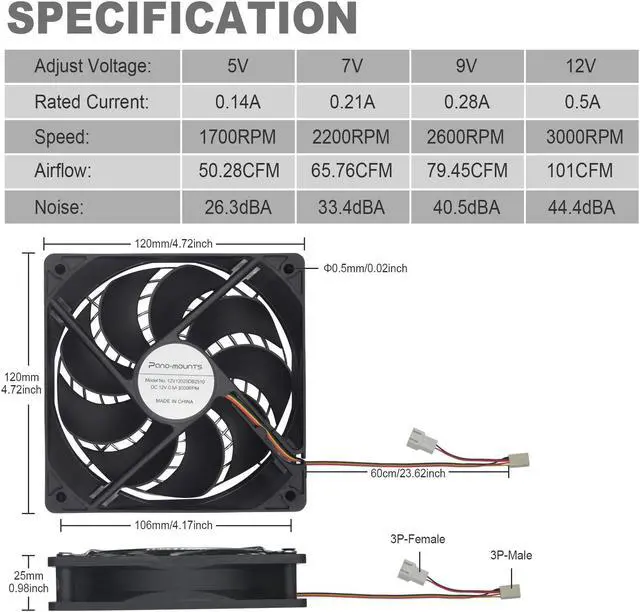

| Size | 120x120x25mm |
|---|---|
| Size | 4.72x4.72x0.98in |
| Speed | 1700-3000RPM |
| Airflow | 50.28-101CFM |
| Noise | 26.3-44.4dBA |
| Current | 0.14-0.5A |
| Cable | 60cm/23.62in |

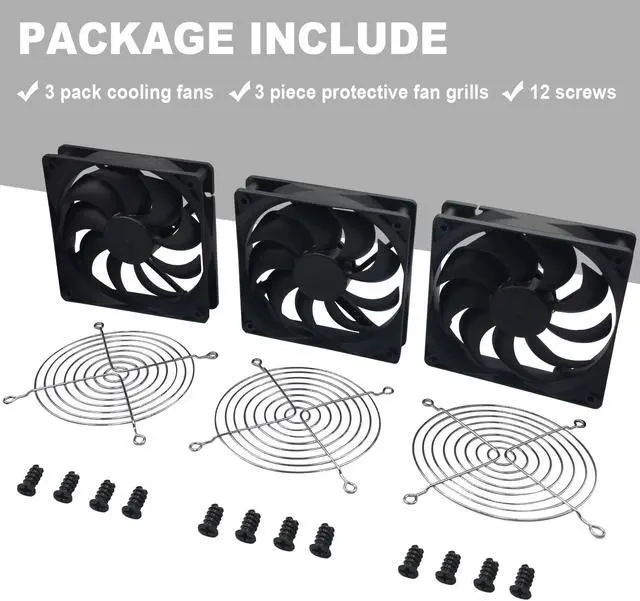

3 x 120mm high speed case fans, 3 x 120mm fan grills, 12 x mounting screws.
Dual ball bearing with higher heat resistance,provide 6000 -100000 hours working time.
It can be connected in series help to reduce messy connection inside the case and insufficient interface.
CPU Cooling
| Products | |||||
|---|---|---|---|---|---|
| Dimension | 70*70*15mm | 120*120*25mm | 120*120*25mm | 70*70*15mm | 90*90*25mm |
| Dimension | 7.09*3.54*0.59inch | 4.72*4.72*0.98inch | 4.72*4.72*0.98inch | 7.09*3.54*0.59inch | 3.62*3.62*0.98inch |
| Current | 0.1A | 0.21A | 0.25A | 0.1A | 0.15A |
| Connector | 4Pin PWM | 4PIN PWM | 2 PIN XH2.54 | 4Pin PWM | 3 PIN-2510 |
| Airflow | variable | 40-75CFM | 47CFM | variable | 32CFM |
| Speed | 1500-2800RPM ±10% | 800-2200RPM ±10% | 1600RPM ±10% | 1500-2800RPM ±10% | 2000RPM ±10% |
| Bearing Type | Dual Ball | Hydraulic | Sleeve | Dual Ball | Sleeve |
| Noise | 16-20dBA | 22-38dB | 30 dB | 16-20dBA | 33dB |
| Voltage | 12V | 12V | 12V | 12V | 12V |
| Packing | 1 PCS | 3 PCS | 2 PCS | 1 PCS | 2 PCS |
