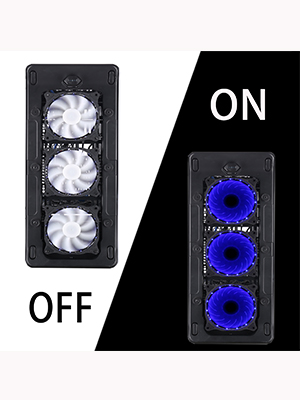

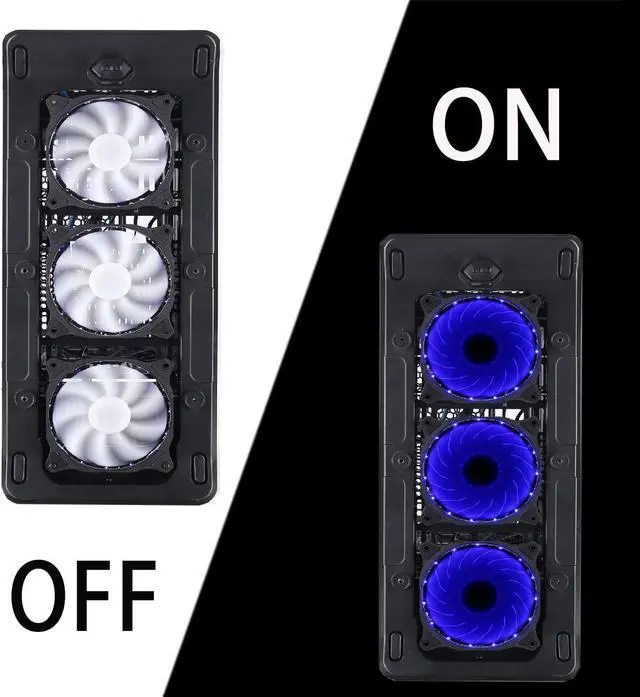

Vivid Visual Lighting Case
Red Blue Green LED Optional
- Illuminate your gaming.
- Light up your computer components.
- Bring you a new vivid visual lighting case.
- Give you a new looking to you PC computer case with efficient ventilation.
Package Included:

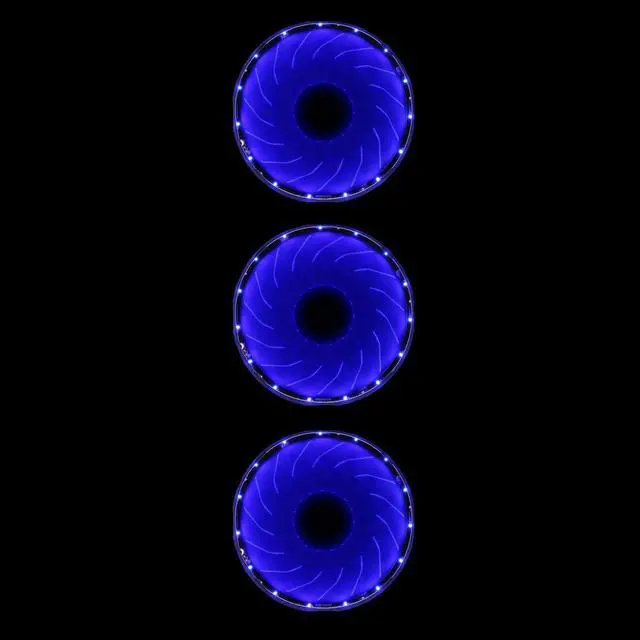

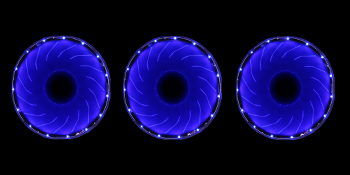

- 3 x Blue LED case fan
- 12 x Installation Screws
Rubber Pads and FDB Bearing

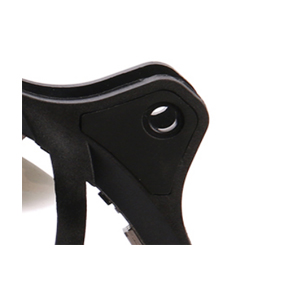

Equipped with Rubber Pads: Reduce fan vibration and makes it more stable.Provide hassle-free usage for 80% coverage,including all four corners.
Innovative Hydraulic Bearing: The Hydraulic Bearing can avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.

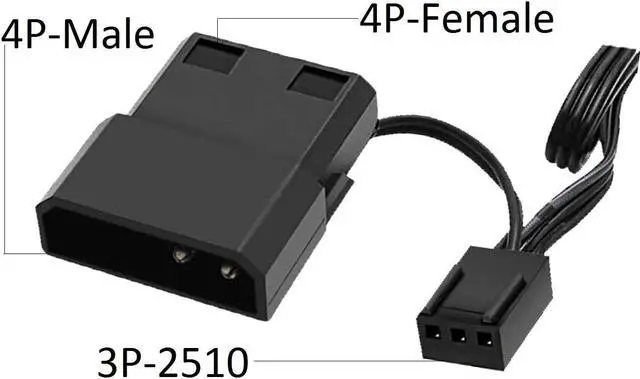

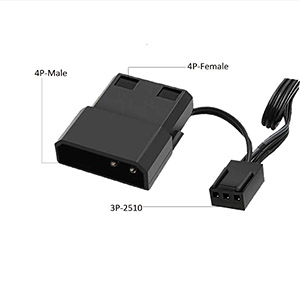

Humanization Fan Interface
4P-Male : Motherboard power 4P D-type interface.
4P-Female: More than 2pcs fan power synchronization (no more than 6pcs fans).
3P-2510: Pc case fan interface (3pin interface or 4pin interface).
You can install fans to your pc case by using one of the three interface and it can solve the problem of pc interface shortage.

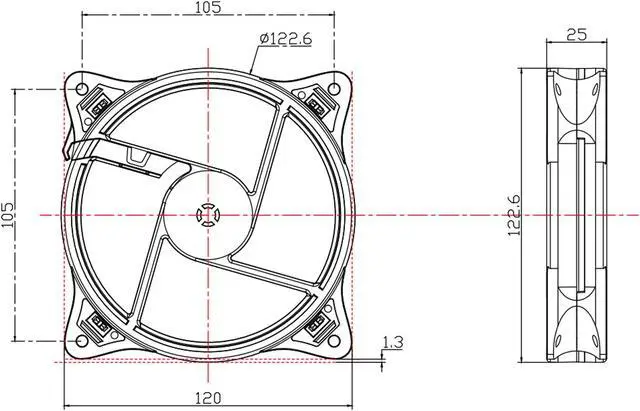

| Fan Dimension | 120x120x25mm |
|---|---|
| Fan Dimension | 4.72 x 4.72x 1.77inch |
| Current and Voltage | 0.28A / 12V DC |
| Revolution | 1200RPM+-10% |
| Rated Power | 3.3W |
| Noise Level | 26.4 dB |
| Airflow | 53.02CFM |
| Wide Application | The standard 120mm pc fan kit can be used for computer case fans,pc gaming fans,CPU heatsink cooler |

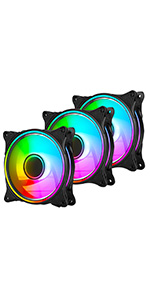

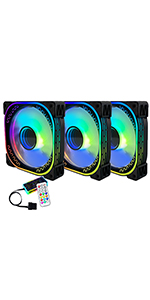

| Products | ||||
|---|---|---|---|---|
| Dimension | 120*120*25mm | 120*120*25mm | 120*120*25mm | 120*120*25mm |
| Dimension | 4.72*4.72*0.98inch | 4.72*4.72*0.98inch | 4.72*4.72*0.98inch | 4.72*4.72*0.98inch |
| Airflow | 46.9CFM | 36CFM | 38.5CFM | 38±10%CFM |
| Speed | 800-1800RPM ±10% | 1200RPM±10% | 800-1600RPM ±10% | 1200RPM+-10% |
| Current | 1.4A | 0.26A | 0.25A | 0.25A±10% |
| Connector | 4PIN PWM +3PIN ARGB | 3PIN&4PIN | 4PIN PWM +3PIN ARGB | 6 Pin |
| Bearing Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Noise | 10-31dB | 16dB | 23dB | 21±10%dBA |
| Voltage | 12V | 12V | 12V | 12V |
| Packing | 3 PCS | 3 PCS | 3 PCS | 3 PCS |
