Geometric Future Squama 2503 RGB PWM Fan - 140mm - 1 Pack Performance & Silent Balance - Dual Lighting Loop - 5V 3pin addressable RGB - 4pin PWM - Black (GEO-S2503B-14S)
- Performance & Silent Balance Design combines performance and quiet, ideal both as a case fan and for CPU coolers, water-cooling radiators and AIO liquid cooling systems, 91.15CFM, 2.63 mm HO, 12V, 4-pin PWM, max. 34 dB(A)
- Squama particle Patent Squama particle on the frame, reducing turbulent flow noise increase airflow and pressure efficiency
- PWM 4-pin PWM controlled fan speed from 800 rpm to 2400 rpm, with excellent balance of performance and quietness.
- ARGB Dual Light Loop The dual light ring equips Addressable RGB LEDs can synchronize lighting with motherboard, lighting effects are individually customizable.
- Shockproof Anti-vibration rubber pads can prevent scratches and further reduce noise from fan spinning at a higher level.
+
+
Overview
Specs
Reviews (8)
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Geometric Future Squama 2503 RGB PWM Fan - 140mm - 1 Pack Performance & Silent Balance - Dual Lighting Loop - 5V 3pin addressable RGB - 4pin PWM - Black (GEO-S2503B-14S)
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Geometric Future Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...

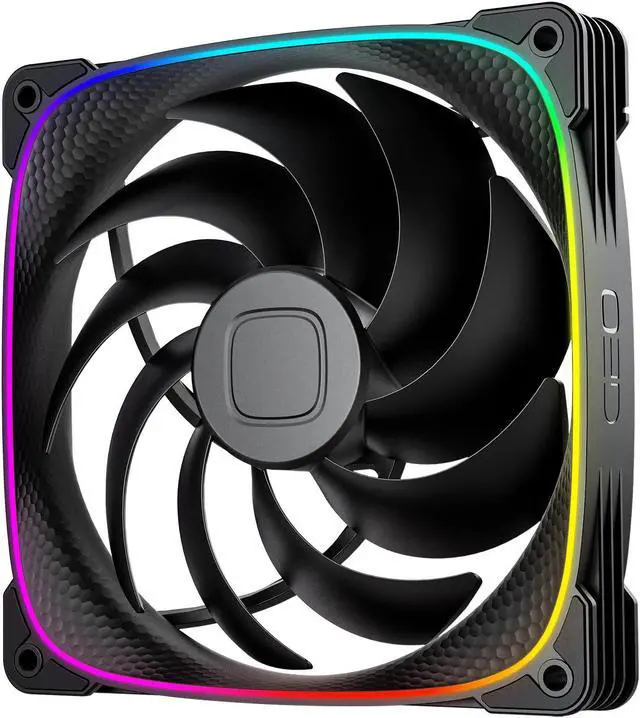

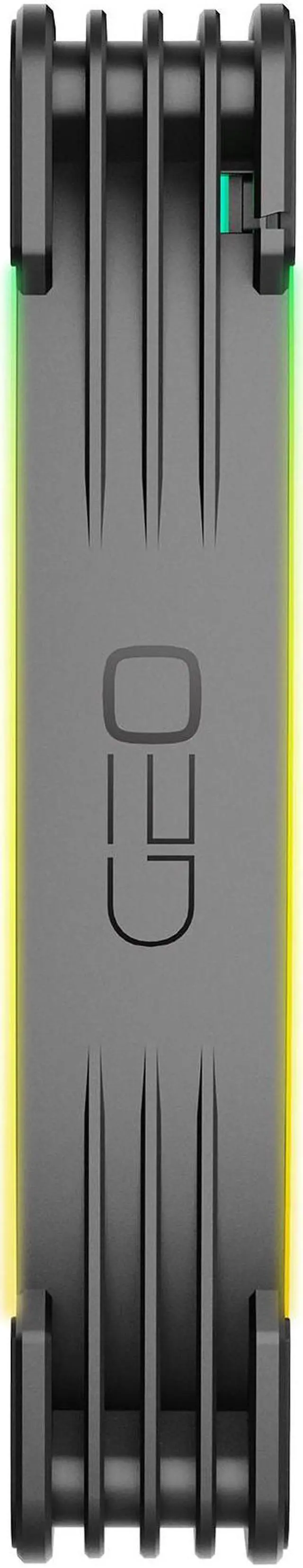

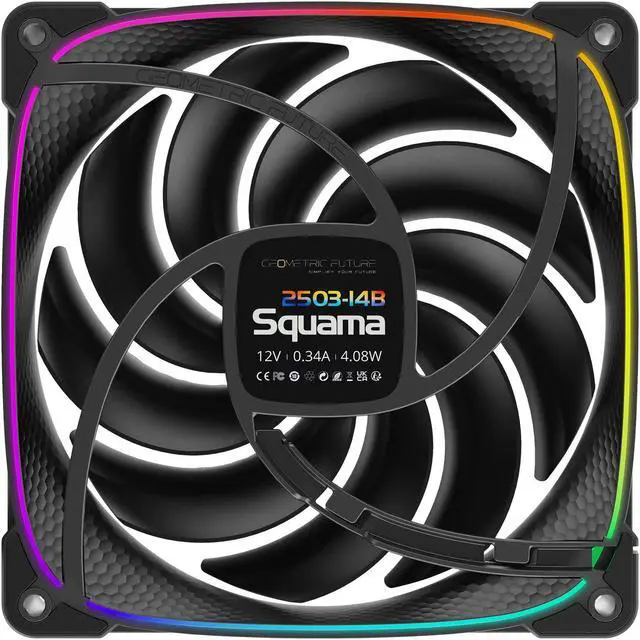

The Geometric Future Squama 2503 is a 140mm PWM case fan with addressable RGB lighting, designed for builders who want strong airflow for PC cases, CPU coolers, radiators, or AIO liquid coolers. It reaches up to 91.15 CFM and 2.63 mm H₂O, with speed control from 800 to 2400 RPM.
Recommended For
- PC builders with a 140mm case-fan mount who want a PWM-controlled fan for intake or exhaust; a hands-on review found useful case airflow at around 1,100 RPM.
- Builders who want a visible but restrained RGB accent: the dual-side lighting strips were described in a hands-on review as cleanly diffused, and the fan supports motherboard ARGB synchronization.
- Users tuning fan curves who want to balance airflow and noise rather than run fans at maximum speed; a review of the 140mm 2503 reported quiet operation and useful airflow at moderate RPM.
- Builders replacing or adding a 140mm fan on a compatible radiator or AIO who want PWM speed control and ARGB; confirm the radiator’s fan dimensions and connector setup before buying.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Case airflow and CPU-cooler, radiator, or AIO liquid-cooling setups |
| Fan Size And Construction | 140 mm fan with a 25 mm thickness and a hydro-dynamic bearing |
| Cooling Performance | 800–2400 RPM, with 91.15 airflow, 2.63 air pressure, and a 34 noise level |
| Lighting And Power | Addressable RGB lighting with a 4-pin PWM power connector |
| Color And Package Quantity | Black; one fan per package |
| Model Identifiers | Geometric Future GEO-S2503B-14S |
