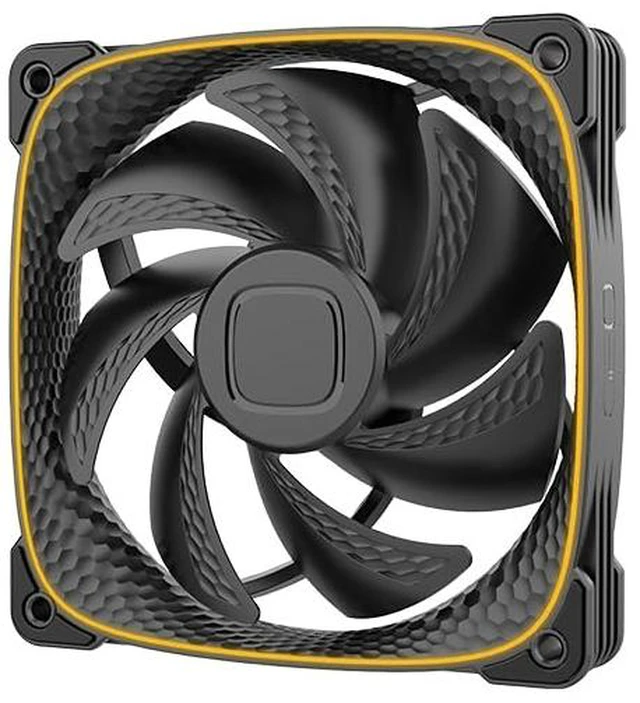

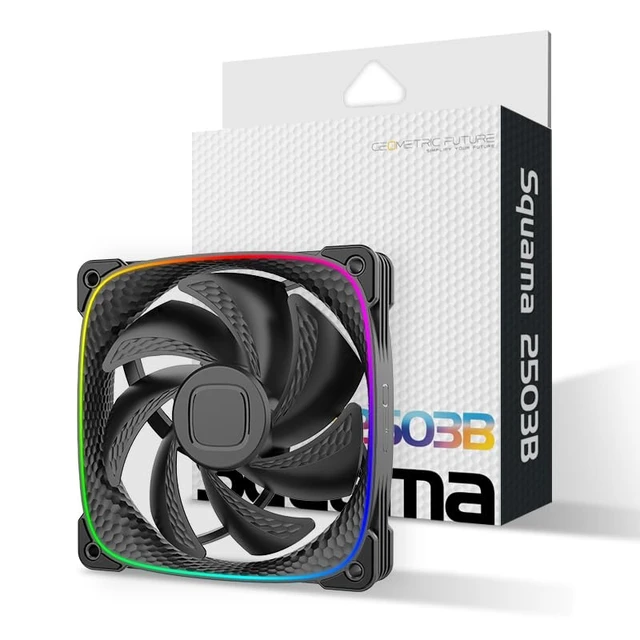

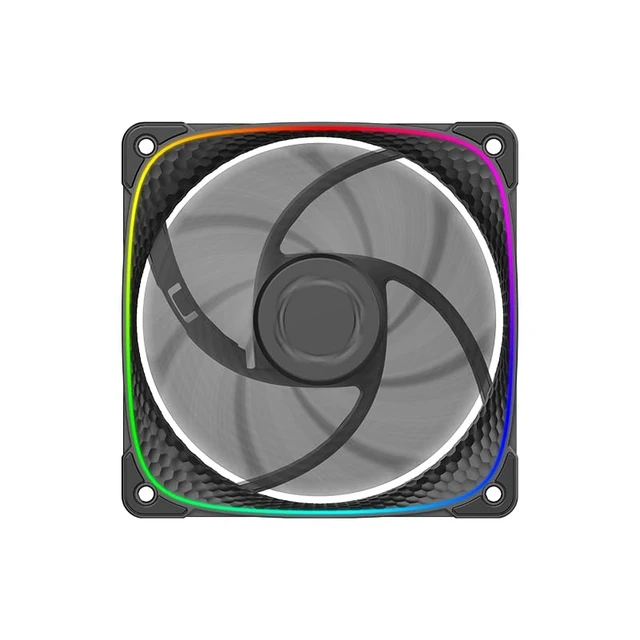

Squama 2503 RGB PWM Fan - 120mm - 1 Pack Performance & Silent Balance - Dual Lighting Loop - Motherboard SYNC with 5V 3pin - 4pin PWM - Black (GEO-S2503B-1)
- [ Performance & Silent Balance ] Design combines performance and quiet, ideal both as a case fan and for CPU coolers, water-cooling radiators and AIO liquid cooling systems, 69.11CFM, 2.92 mm HO, 12V, 4-pin PWM, max. 29 dB(A)
- [ Squama particle Patent] Squama particle on the frame, reducing turbulent flow noise increase airflow and pressure efficiency
- [ PWM] 4-pin PWM controlled fan speed from 800 rpm to 2000 rpm, with excellent balance of performance and quietness, pushing up to 69.11 CFM of air with 2.92mm- HO of static pressure.

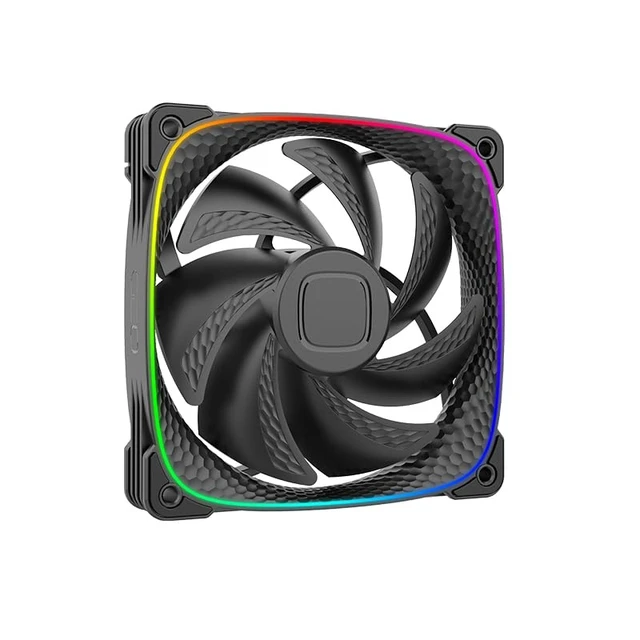

- [ ARGB Dual Light Loop ] The dual light ring equips 18 separately controlled Addressable RGB LEDs can synchronize lighting with motherboard, lighting effects are individually customizable.
- [ Shockproof] Anti-vibration rubber pads can prevent scratches and further reduce noise from fan spinning at a higher level.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Squama 2503 RGB PWM Fan - 120mm - 1 Pack Performance & Silent Balance - Dual Lighting Loop - Motherboard SYNC with 5V 3pin - 4pin PWM - Black (GEO-S2503B-1)
Product information
| Included Components | fan, PWM, ARGB cable, Screws |
| Cooling Method | Air |
| Item Package Quantity | 1 |
| Brand Name | Geometric Future |
| Number of Items | 1 |
| Item Package Dimensions | 3.5 L x 12.5 W x 18.4 H centimeters |
| Size | 120mm - 1 Pack |
| Style Name | 120mm Black x1 |
| Power Connector Type | 4-Pin |
| Color | Black |
| Package Weight | 0.22 kilograms |
| Manufacturer | Geometric Future |
| Number of Boxes | 1 |
| Model | GEO-S2503B-1 |
| Number of Packs | 1 |
| Maximum Rotational Speed | 2000 rpm |
| Are batteries required? | false |
| Compatible Devices | Desktop |
| Air Flow Capacity | 69.11 cubic_feet_per_minute |
| Noise Level | 29 decibels |
| Are batteries included? | false |
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Geometric Future Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The Geometric Future Squama 2503 is a black 120mm PWM case fan for PC builders who want adjustable cooling and customizable ARGB lighting. It runs from 800 to 2000 RPM, moves up to 69.11 CFM, and has a dual light loop with 18 individually controlled LEDs.
Recommended For
- PC builders adding a single 120 mm case fan who want PWM speed control and addressable lighting; testing found respectable noise-to-performance, with results comparable to an Arctic P12 ARGB.
- Builders with a compatible 120 mm radiator or AIO mount who want one fan for cooling and ARGB lighting; Geometric Future positions the Squama 2503 for radiator and liquid-cooling use, and the review tested its cooling performance.
- ARGB-focused PC builders who want a distinctive illuminated frame and motherboard lighting sync, and whose system has a compatible 5V 3-pin ARGB connection.
- Users who prefer to tune fan speed with a motherboard PWM header and are comfortable trading quieter operation at lower speeds for more cooling when needed.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Desktop air-cooling setups needing a single 120 mm fan |
| Cooling Performance | Moves up to 69.11 CFM of air with a maximum rotational speed of 2000 RPM; rated noise is 29 dB(A) |
| Size And Finish | 120 mm fan with a 20 mm thickness and black finish |
| Power And Control | Uses a 4-pin power connector; package includes PWM and ARGB cables |
| Included Components | Fan, PWM and ARGB cables, and screws; one fan per package |
| Model Identifiers | Geometric Future GEO-S2503B-1 |
