ARCTIC P12 PWM PST A-RGB (3 Pack) - 120 mm PWM case Fan Optimized for Static Pressure, case Fan, semi-Passive: 0-2000 RPM, 5V 3 pin ARGB LED, Single Fan - Black

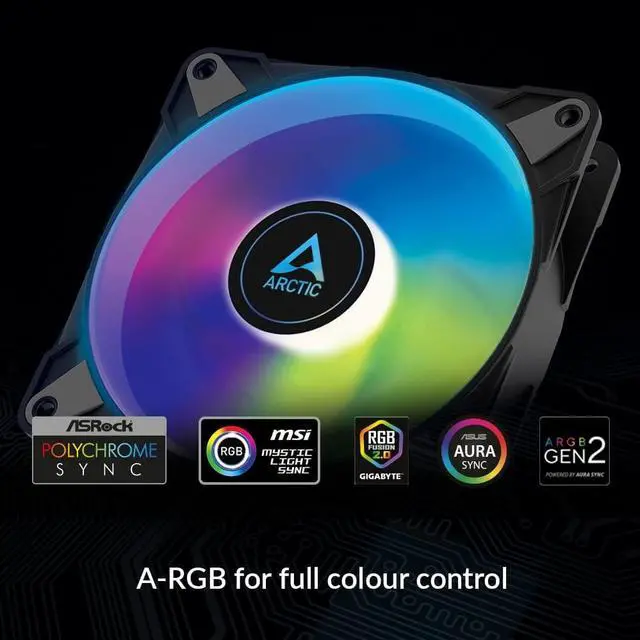

- DIGITAL A-RGB: The 12 A-RGB LEDs placed along the fan hub and the transparent rotor, with its enclosed design, provide even and rich illumination
- EASY TO COMBINE: Both the fan and A-RGB cables have an integrated Y-splitter, making it even easier to retrofit and control additional fans
- OPTIMIZED FOR STATIC PRESSURE: Thanks to its high static pressure, the fan guarantees efficient cooling, even with increased air resistance. Suitable for use on heat sinks & radiators

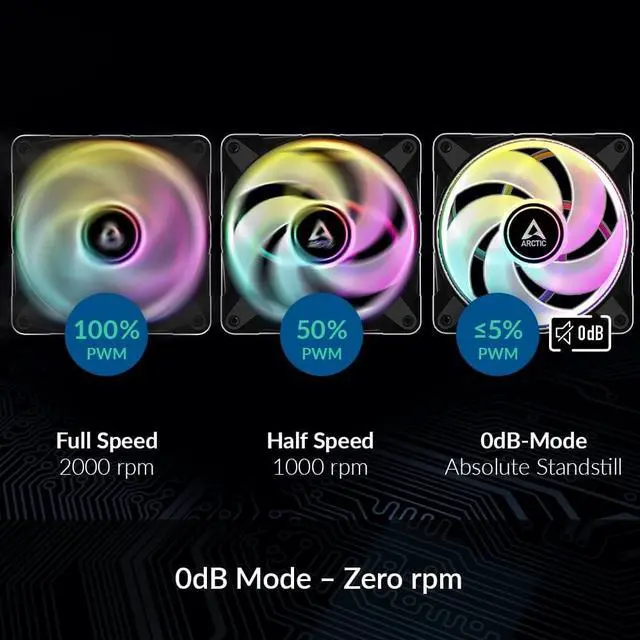

- 0-2000 RPM: The speed of the fan can be throttled to a standstill via PWM. This allows for silent operation in IDLE while guaranteeing the highest performance when needed
- SPECIFICATIONS: 3 Pack; Fan speed: 0-2000 rpm; Airflow: 48.8 CFM/82.91 m³/h; Static pressure: 1.85 mmH2O; Noise level: 0.3 Sone; Fan connector: 4-pin; LED connector: 3-pin
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
General data
Performance
Fan Speed: 200-2000 RPM (0 RPM below 5% PWM)
Airflow: 48.8 CFM/ 82.91 m³/h
Static Pressure: 1.85 mm HO
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0-40 °C
Fan & Electric Characteristics
Fan Frame: Standard

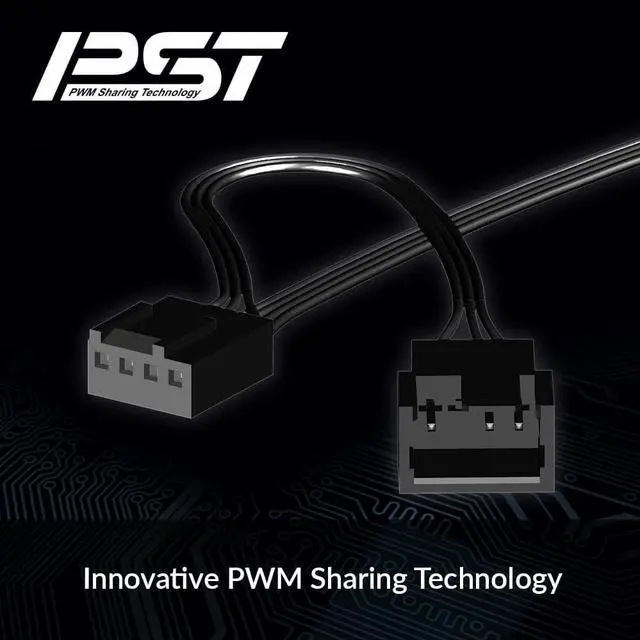

Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket

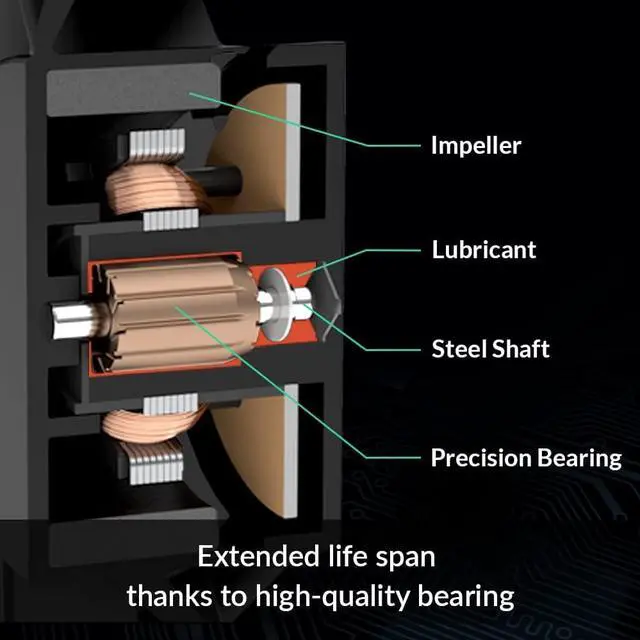

Fan Bearing: Fluid Dynamic Bearing
Typical Voltage: 12 V DC
Starting Voltage: 5 V
Current/Voltage: 0.11 A/12 V
Cable Length: 400 mm
RGB
LEDs: 12 A-RGB LEDs
Connector: 3-Pin 5V-DI-GND Connector
Current/Voltage: 0.4 A/5 V
Cable: 450 mm cable with 80 mm sharing cable, black
Performance
Fan Speed: 200-2000 RPM (0 RPM below 5% PWM)
Airflow: 48.8 CFM/ 82.91 m³/h
Static Pressure: 1.85 mm HO
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0-40 °C
Fan & Electric Characteristics
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Typical Voltage: 12 V DC
Starting Voltage: 5 V
Current/Voltage: 0.11 A/12 V
Cable Length: 400 mm
RGB
Specifications
LEDs: 12 A-RGB LEDs
Connector: 3-Pin 5V-DI-GND Connector
Current/Voltage: 0.4 A/5 V
Cable: 450 mm cable with 80 mm sharing cable, black
