| Fan Dimensions | 5.5×5.5×1.18 in (L×W×H) |
|---|---|
| Net Weight | 0.61 bl |
| Fan Speed | 500~2200 RPM±10% ; 0 RPM <5 % PWM |
| Fan Airflow | 129 CFM |
| Fan Air Pressure | 5.91 mmAq |
| Fan Noise | < 39.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hybrid Hydraulic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.45 A |
| Fan Power Consumption | 5.4W |

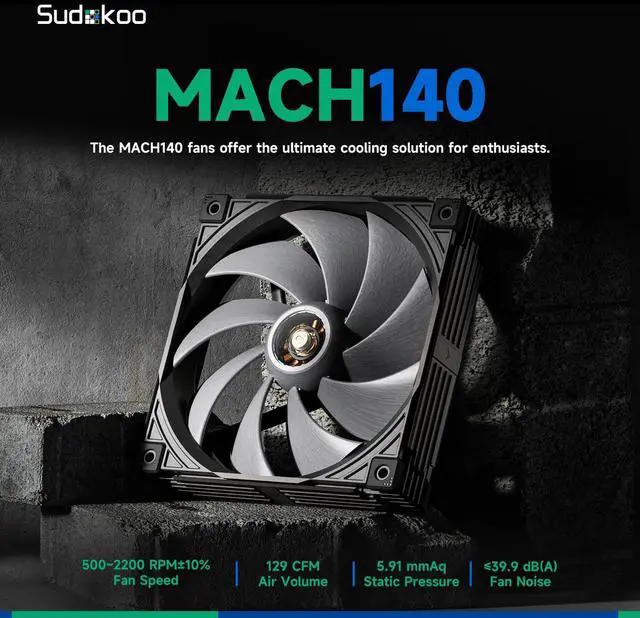

Big. Bold. Built for Pressure.
The Sudokoo MACH140 is a high-performance 140mm fan designed to tackle demanding thermal setups. Equipped with LCP-reinforced blades, a dual-bearing hybrid hydraulic system, and 7.91 mmAq static pressure, it's built to move serious airquietly and reliably.
Key Features:
140mm x 30mm Thick Design
Thicker frame boosts pressure and airflow without increasing noise.
Ultra-Quiet High RPM Motor
Advanced Dual Bearings
Custom Hybrid Hydraulic Bearings made with PORITE Japan technology for durability and low friction.

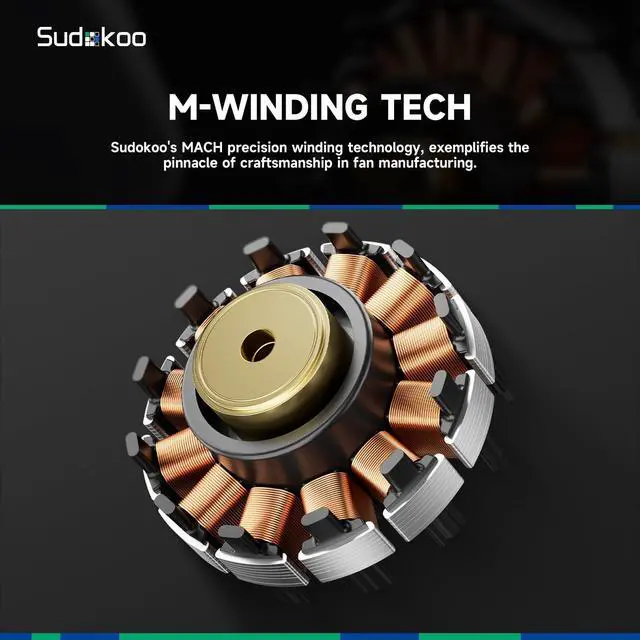

High-Efficiency Motor
3-phase, 12-slot, 10-pole motor with neodymium magnets delivers smoother output with less vibration.

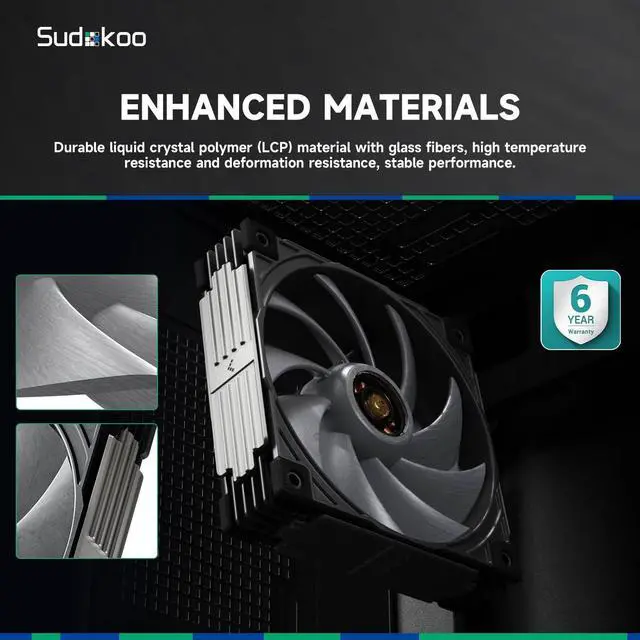

Premium LCP Frame and Blades
Constructed with Liquid Crystal Polymer reinforced by glass fiber for heat, pressure, and noise resistance.

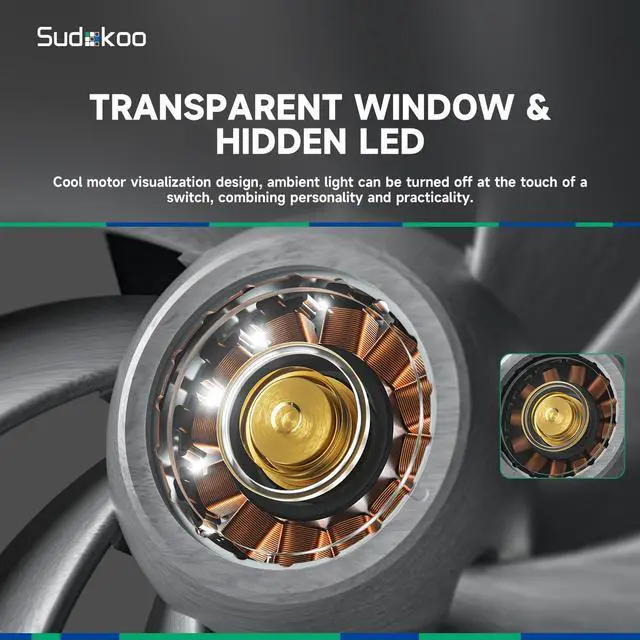

Integrated White LED Glow
Soft lighting behind the bearing window highlights internal quality. LED can be switched off via built-in toggle.

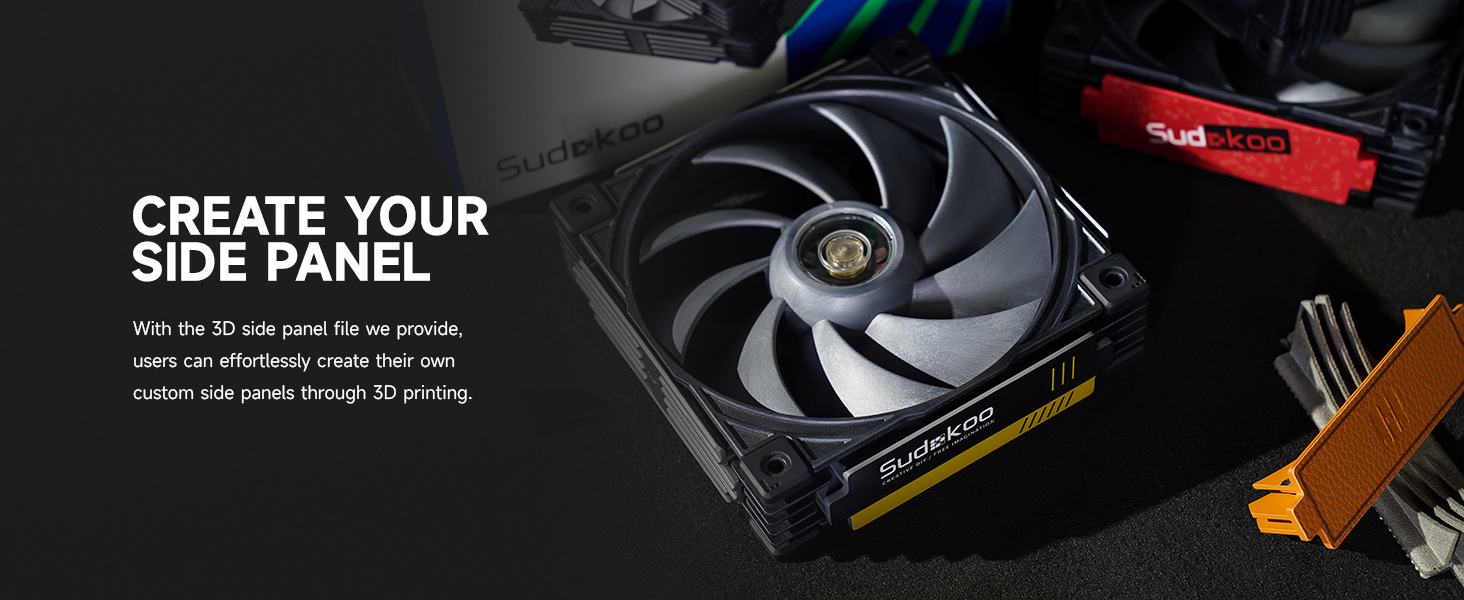

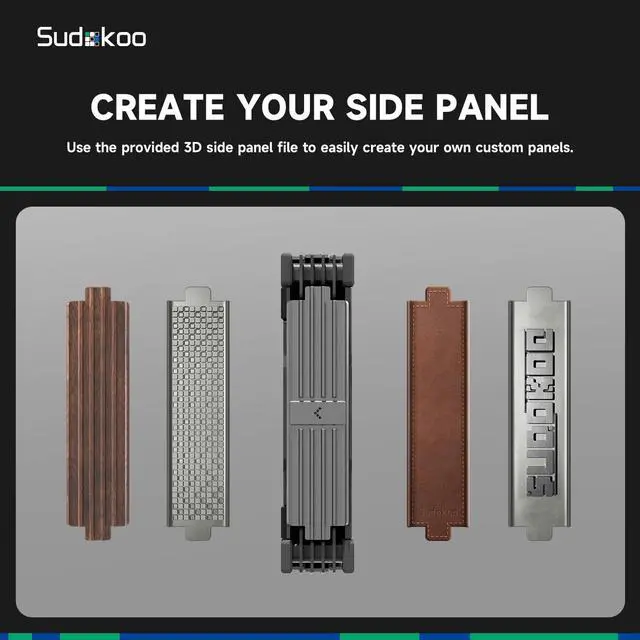

3D-Printable Side Panels
Download custom STL files to personalize with aesthetic mods or cable covers.
Anti-Vibration Design
Rubber pads on all corners reduce noise and stabilize installation.
What's in the Box:
Recommended Use Cases:
