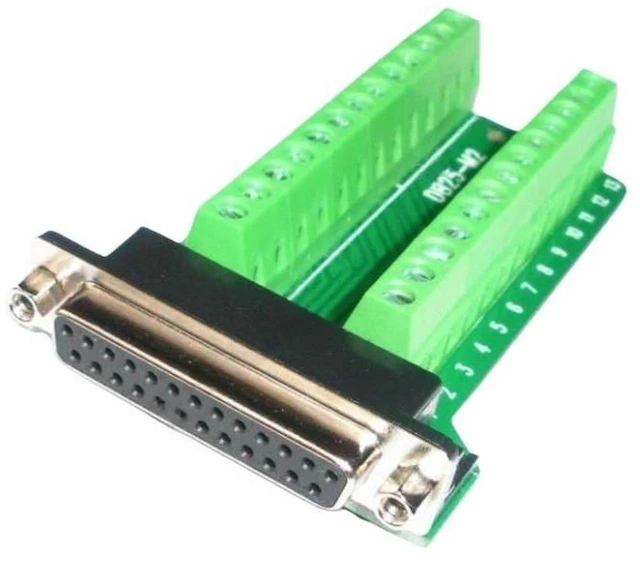

DB25 Female to Terminal Connector Splitter Adapter Board, DR25 25Pin Breakout Changeover Terminal Block Module for RS232 Serial, Industrial Control Signal Conversion and Quick Wiring Projects
- DB25 female to screw terminal breakout adapter board, converts DR25 25pin port to accessible terminal block for convenient signal wiring
- Clear pinnumber marking on PCB board, helps users complete accurate wiring without complicated soldering operations
- Stable 1to1 signal transmission path, reduces signal loss for RS232 serial communication and industrial control applications
- Compact PCB structure supports panel mounting, ideal for industrial debugging, equipment modification and prototype testing tasks
- Robust FR4 circuit board and reliable connector construction, delivers steady performance for longterm field deployment
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
DB25 female to terminal connector splitter adapter board, also known as DR25 changeover terminal breakout module, offers a simple solution to convert DB25 25pin DSub interface to screw terminal connections. Each pin is mapped onetoone to corresponding terminal positions, making wire connection, signal inspection and circuit debugging much easier.
Printed pin labels on the PCB effectively prevent miswiring. It is widely used for RS232 serial devices, industrial control equipment, data acquisition modules and prototype wiring modification. The solid FR4 PCB improves structural stability for industrialgrade working environments. Please verify pin definition and signal requirements before installation to match your target devices correctly.
- Product Type: DB25 to Terminal Splitter Adapter Breakout Board
- Input Connector: DB25 (DR25) Female
- Output Interface: Screw Terminal Block
- Signal Mapping: 1to1 Pin Correspondence
- PCB Material: FR4 Fiberglass Board
- Application: RS232 Serial Communication, Industrial Control, Signal Debugging, Prototype Wiring
- Feature: Clear Pin Marking, No Soldering Required, EasytoWire
- Mounting Method: Panel Mount Holes Available
