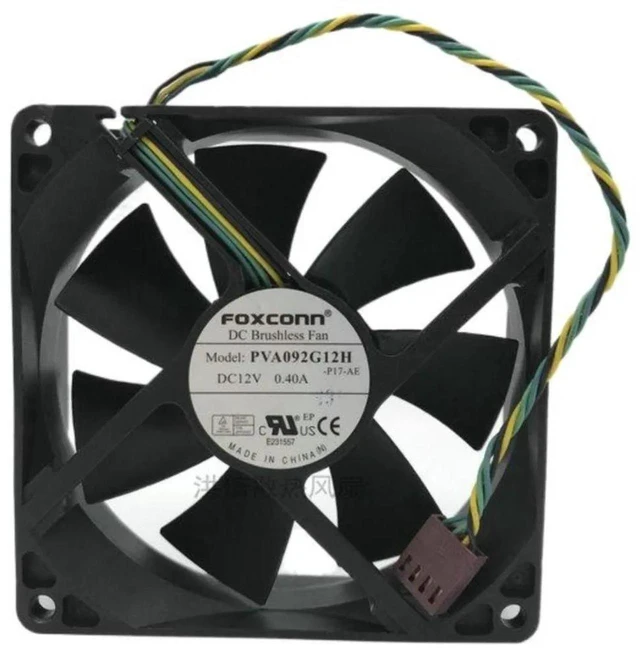

PVA092G12H 9025 HighAirflow 4Pin PWM CPU Cooling Fan, 92x92x25mm DC12V 0.40A Hydraulic Bearing Axial Fan Replacement for Desktop CPU Cooler, PC Chassis and SFF Workstation Heat Dissipation
- - Fan model PVA092G12H, dimension 92×92×25mm (9025 /90mm), standard mounting hole layout for desktop systems
- - DC12V 0.40A rated, 4Pin PWM connector with tachometer feedback, supports motherboard automatic temperaturebased speed control
- - Sealed hydraulic bearing delivers stable operation, variable speed 9003600RPM, max airflow up to 61CFM for highheat CPU cooling
- - UL94V0 flameretardant PBT frame, widely used for CPU coolers, PC cases, SFF desktops and smallsize power supplies
- - Direct dropin replacement; resolves fan stall, rattling noise and CPU thermal throttling caused by wornout original fan
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
PVA092G12H is a highperformance 9025 PWM cooling fan sized 92x92x25mm. Operating at DC12V 0.40A, this 4wire PWM fan enables dynamic speed adjustment and realtime RPM monitoring via motherboard BIOS, balancing cooling performance and noise level according to CPU load.
Adopts sealed hydraulic bearing structure to reduce vibration and extend service life for longhour continuous runtime. It delivers strong airflow to pull heat away from CPU heatsinks and exhaust hot air inside compact PC chassis and SFF workstations. Flameretardant housing enhances safety for desktop and lightindustrial applications.
Ideal spare part for PC maintenance and upgrade projects. Please verify fan part number, 9025 dimension, DC12V rating and 4Pin PWM interface before purchase to avoid mismatch.
- Part Number: PVA092G12H
- Fan Size: 92x92x25mm (9025 / 90mm)
- Operating Voltage: DC 12V
- Rated Current: 0.40A
- Rotational Speed: 9003600RPM
- Max Airflow: 61CFM
- Bearing Type: Sealed Hydraulic Bearing
- Connector: 4Pin PWM with Tachometer Output
- Frame Material: UL94V0 FlameRetardant PBT Plastic
- Application: Desktop CPU Cooler, PC Chassis, SFF Workstation, Compact Power Supply
- Installation: Standard 9025 mounting hole direct fit
- Package Includes: 1 × Cooling Fan
