AS09224UB389BB0 9238 92mm DC Brushless Cooling Fan 92x92x38mm DC24V 26W 10300RPM 4-Wire PWM High Speed Axial Fan Replacement for Industrial Cabinet Server High Density Equipment Heat Dissipation Repai
- - Model AS09224UB389BB0, 92×92×38mm high-speed industrial axial cooling fan
- - Rated DC24V 26W, speed up to 10300RPM for strong high static pressure airflow
- - 4-wire PWM design supports temperature-controlled speed adjustment and tachometer feedback
- - Reinforced dual ball bearing delivers stable 24/7 continuous heavy-duty operation
- - Ideal for servers, high-density enclosures and industrial power equipment cooling
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

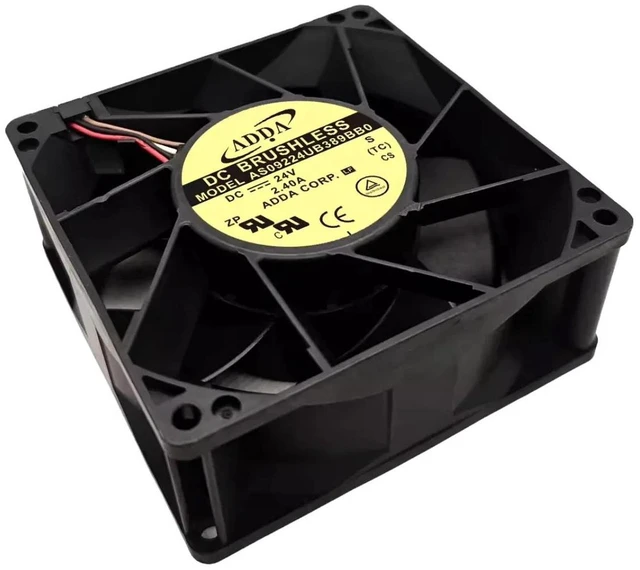

AS09224UB389BB0 is a high-speed 9238 DC brushless axial cooling fan sized 92×92×38mm. Operating at DC24V with 26W rated power and maximum 10300RPM rotation speed, this fan provides powerful static pressure to expel trapped hot air from tightly packed industrial and server equipment. The 4-wire PWM cable dynamically regulates rotational speed according to internal temperature and feeds real-time fan status signals back to the host system. Built with heavy-duty dual ball bearing, it minimizes vibration and extends service life under continuous working conditions. Standard mounting holes support direct swap to prevent hardware overheating.
- Model: AS09224UB389BB0
- Dimension: 92x92x38mm (9238 /92mm)
- Operating Voltage: DC 24V
- Rated Power: 26W
- Speed: 10300RPM
- Wire Type:4-Wire PWM
- Fan Type: DC Brushless High Speed Axial Cooling Fan
- Application: Server, Industrial Cabinet, High Density Electronic Equipment Heat Dissipation
